Quick Details
-
Model Number:
-
HM120-11070
-
Weight:
-
3700KG
-
Dimension(L*W*H):
-
1850*1150*3300mm
-
Certification:
-
CE
-
Bale weight:
-
500-550KG
-
Bale size:
-
1500*750 mm
Quick Details
-
Power:
-
15kw
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
HUICHENG
-
Model Number:
-
HM120-11070
-
Weight:
-
3700KG
-
Dimension(L*W*H):
-
1850*1150*3300mm
-
Certification:
-
CE
-
Bale weight:
-
500-550KG
-
Bale size:
-
1500*750 mm

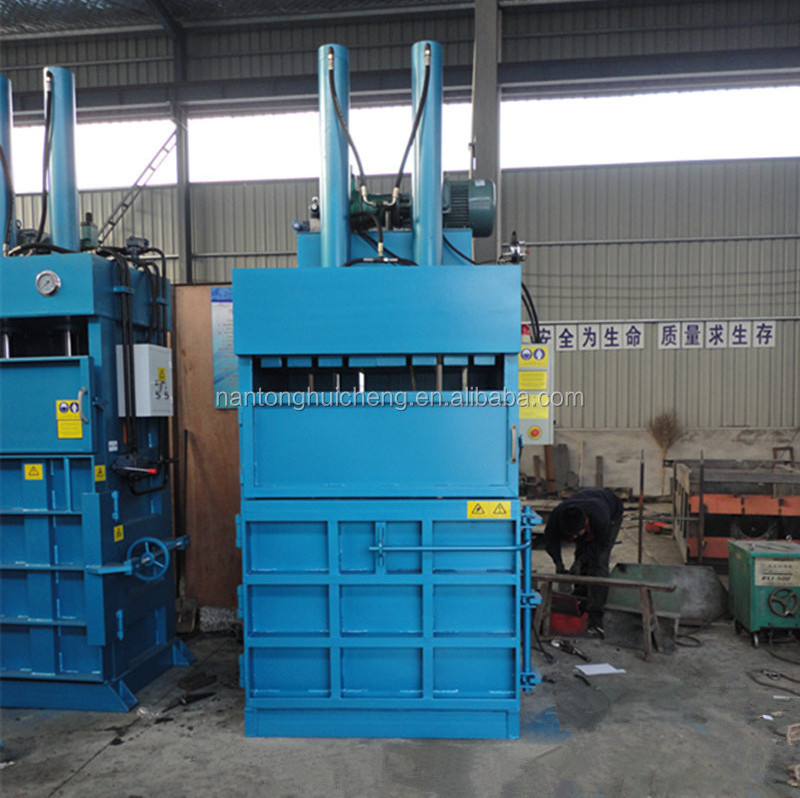

Enviromental large size materials rectangular baler for tire:
This series machine mainly is used for baling cartons, cotton yarn, plastic, wood, etc. It is designed as vertical structure, hydraulic Transmission, electrical control and manual binding. Usually the pressure force of this series is from 10 ton KN to 60 ton KN, the efficiency is 4 ~ 6 pieces per hour. The weight of each piece is from 30 Kg to 300 Kg according to the material. Also, we can produce the machine according to the requirement from customer .
Features :
1. Automatic control mode, safety interlock switch
2. Press plate uses the guide to make balance and prevent tip effectively.
3. Emergency stop button is installed independently, can stop at any time to ensure safety.
4. Monitor prompts working conditions and can effectively monitor the operation of the machine .
Technical data
The bale weight is for waste paper for reference!
|
Model |
Force |
Bale size |
Bale weight |
Efficiency |
Power (KW) |
Machine weight |
Size (mm) |
|
HM10-6040 HE10-6040 |
10 Ton |
600* 400 mm |
30-50 KG |
4-6 bale/hour |
2.2 |
800 KG |
900*650*2100 |
|
HM20-8060 HE20-8060 |
20 Ton |
800*600 mm |
80-100 KG |
4-6 bale/hour |
4 |
950 KG |
1000*750*2750 |
|
HM30-8060 HE30-8060 |
30 Ton |
800*600 mm |
100-130 KG |
4-6 bale/hour |
5.5 |
1000 KG |
1000*750*2750 |
|
HM30-11070 HE30-11070 |
30 Ton |
1100*700 mm |
130-150KG |
4-6 bale/hour |
5.5 |
1200 KG |
1350*850*3200 |
|
HM40-11070 HE40-11070 |
40 Ton |
1100*700 mm |
150-200KG |
4-6 bale/hour |
7.5 |
1800 KG |
1350*850*3200 |
|
HM40-12080 HE40-12080 |
40 Ton |
1200*800 mm |
200-240KG |
4-6 bale/hour |
7.5 |
2050 KG |
1600*1050*3300 |
|
HM50-12080 HE50-12080 |
50 Ton |
1200*800 mm |
250-320KG |
4-6 bale/hour |
7.5 or 11 |
2600 KG |
1600*1050*3300 |
|
HM60-15075 HE60-15075 |
60 Ton |
1500*750 mm |
380-420KG |
4-6 bale/hou r |
11 or 15 |
2900 KG |
1850*1150*3300 |
|
HM80-15075 HE80-15075 |
80TON |
1500*750 mm |
450-480KG |
4-6 bale/hou r |
15 |
3300 KG |
1850*1150*3300 |
|
HM100-15075 HE100-15075 |
100TON |
1500*750 mm |
500-550KG |
4-6 bale/hou r |
15 |
3700KG |
1850*1150*3300 |
