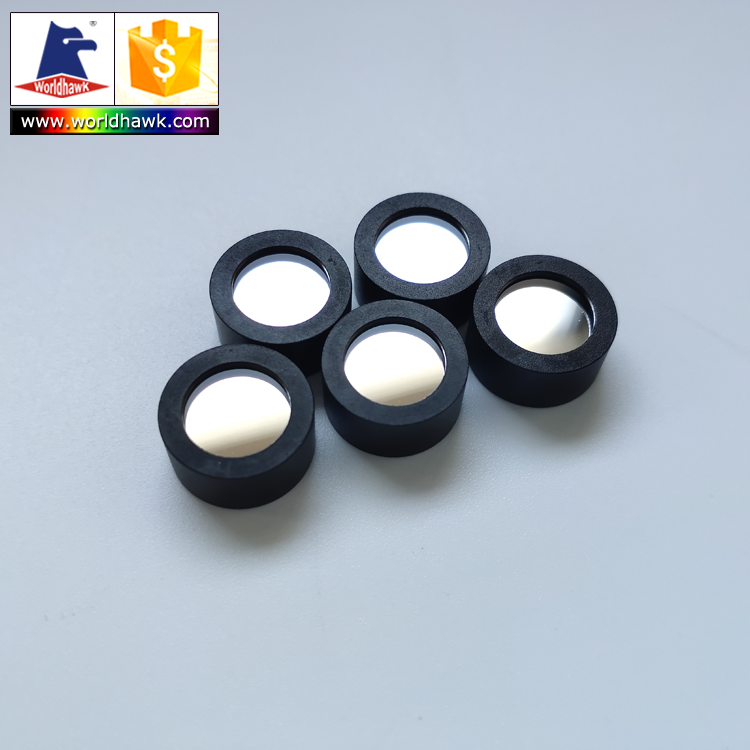

Standard UV IR VIS Bandpass Optical Filters Band Pass Filter

Standard UV IR VIS Bandpass Optical Filters Band Pass Filter

FOB Reference Price: Get Latest Price

≥20 Pieces

US $19

≥200 Pieces

US $13

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Use:: High Precision Optical Bandpass Filters, optical instrument, medical

Diameter:: 1-100mm

Diameter Tolerance:: +/-0.1mm,+/-0.05mm

Thickness:: 0.55-5mm

Thickness Tolerance:: +/-0.1mm,+/-0.05mm

Surface Quality:: 60/40 , 40/20

Surface Flatness:: 2ambda~ lambda/4

CA:: 90%

Parallelism:: +/-3'

Chamfer:: <0.5mm@45°

Quick Details

Place of Origin:: Jilin, China

Brand Name:: Worldhawk

Model Number:: WH-BPF

Use:: High Precision Optical Bandpass Filters, optical instrument, medical

Diameter:: 1-100mm

Diameter Tolerance:: +/-0.1mm,+/-0.05mm

Thickness:: 0.55-5mm

Thickness Tolerance:: +/-0.1mm,+/-0.05mm

Surface Quality:: 60/40 , 40/20

Surface Flatness:: 2ambda~ lambda/4

CA:: 90%

Parallelism:: +/-3'

Chamfer:: <0.5mm@45°

Optical Filter

+ Optical Filters

Worldhawk can provide precision filters for many applications, including bandpass interference filter, Cut off filters, UV filter, IR filter, Narrow bandpass filter, ND filter, Negative Filter or Notch filters, dichroic, color substrate.

Optical Filters are used to selectively transmit or reject a wavelength or range of wavelengths. Optical Filters are used in applications such as fluorescence microscopy, clinical chemistry, spectroscopy, or machine vision inspection. Optical Filters are ideal for life science, imaging, industrial, or defense industries.

Custom filters are available for both large manufacturing needs and in prototype volumes. Contact us for more information or to arrange a quote.

+Bandpass Interference fIlters

- Bandpass filters

- Narrow bandpass filter

- UV bandpass filter

- IR Bandpass filter

Technique Data:

FWHM: 30nm-80nm OD:2-3

FWHM: 5nm-25nm OD:4-6

Size: φ6-φ200

Center Wavelength Range:340-1064nm

(340 380 405 450 492 510 546 578 600 620 630 808 850 940 1064...)

Narrow bandpass filter CWL:337nm FWHM:3nm
Narrow bandpass filter CWL:505nm FWHM:10nm
UV bandpass filter CWL:250-300nm High transmittance
IR Bandpass filter CWL:905nm FWHM:35nm
IR Bandpass filter CWL:1064nm FWHM:20nm
