App real time monitoring
EVE Cells + JBD 100A/120A Bluetooth BMS
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-

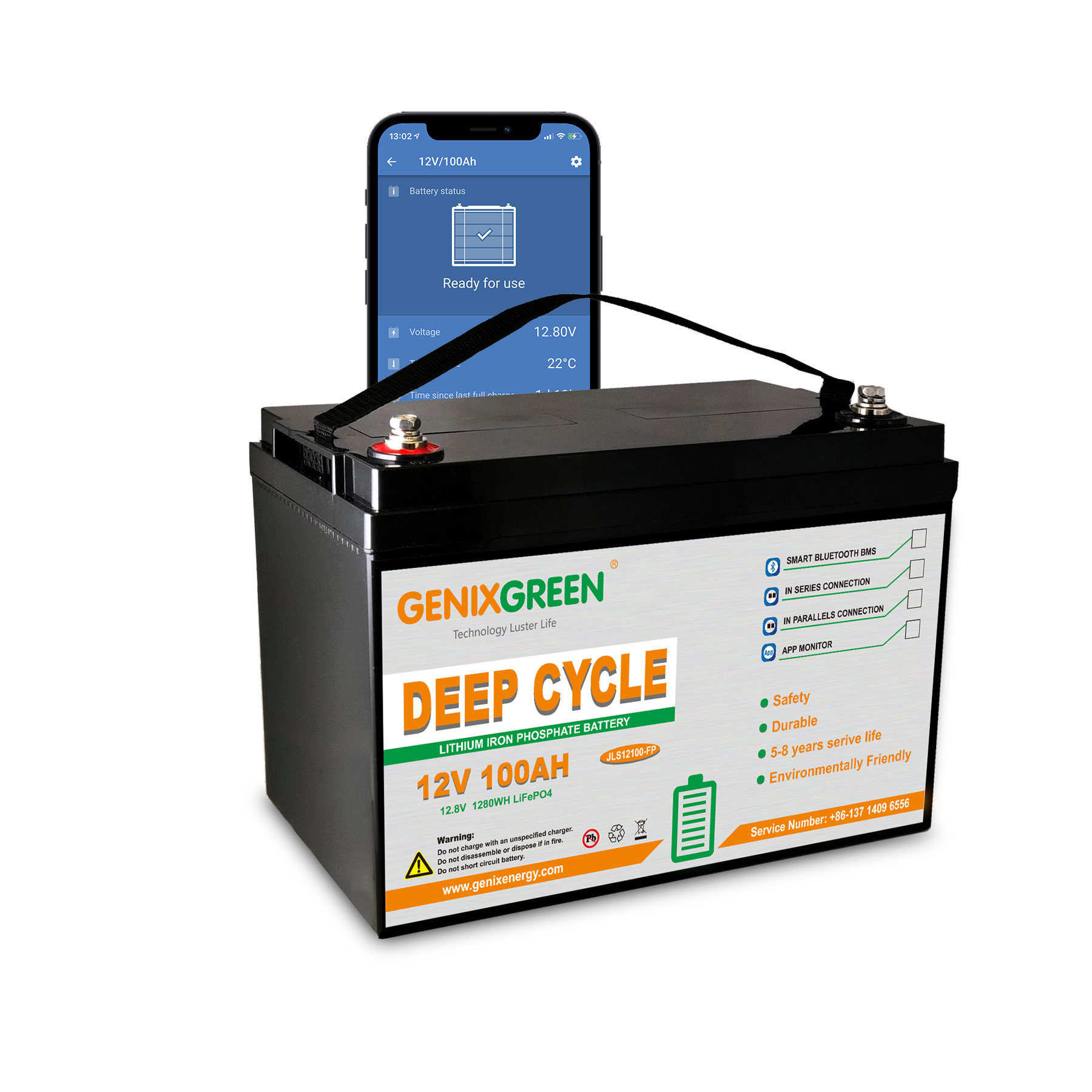

Smart 12V Lifepo4 Battery 100Ah/200Ah
-
Discharge Current:
-
100A/120A Continuous
-
Configuration:
-
Grade A EVE Cells+ JBD Bluetooth BMS
-
Lithium iron Phosphate:
-
Deep Cycle Lithium iron Phosphate
-
Cycle life:
-
5000+ Deep Circles@80% DOD
-
Optional:
-
APP+Bluetooth Monitoring
-
Size:
-
326*171*215(mm)
-
Application:
-
RV, Caravan, Solar, Marine, Home Storage
-
Weight:
-
10KG
-
Warranty:
-
3 Years
Quick Details
-
Brand Name:
-
OEM/ Genixgreen
-
Model Number:
-
JLS-12100
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Smart 12V Lifepo4 Battery 100Ah/200Ah
-
Discharge Current:
-
100A/120A Continuous
-
Configuration:
-
Grade A EVE Cells+ JBD Bluetooth BMS
-
Lithium iron Phosphate:
-
Deep Cycle Lithium iron Phosphate
-
Cycle life:
-
5000+ Deep Circles@80% DOD
-
Optional:
-
APP+Bluetooth Monitoring
-
Size:
-
326*171*215(mm)
-
Application:
-
RV, Caravan, Solar, Marine, Home Storage
-
Weight:
-
10KG
-
Warranty:
-
3 Years
Product parameter
With Screw Fixed Battery case, you can repair the battery easily without destroying the cases
1C Discharge Rate 12.8v 100Ah/200Ah Lifepo4 Battery
3 Years warranty
|
Specifications
|
|
JLS-12200
|
|
|
Voltage
|
|
12.8V
|
|
|
Nominal Capacity
|
|
100Ah
|
|
|
Cells
|
|
EVE 3.2V prismatic 105ah Cells
|
|
|
Bluetooth
|
|
4S 100A Bluetooth JBD BMS
|
|
|
Weight (Approximate)
|
|
10Kg
|
|
|
Energy
|
Normal energy
|
1280 Wh
|
|
|
Dimensions
|
Length*Width* Height
|
326*171*215(mm) /
Customzied
|
|
|
|
Max. constant current
|
100A /
Customzied
|
|
|
|
Cut-off voltage
|
8V
|
|
|
|
Charge Voltage
|
8V~14.6V
|
|
|
|
Max. constant current
|
80A /
Customzied
|
|
|
|
Recommended charging current and time
|
20A for 10hours
|
|
|
Cycle life
|
|
5000+ cycles@90% DOD
|
|
|
Operating temperature
|
|
Charging: 0℃~45℃
|
|
|
|
|
Discharging: -20℃~60℃
|
|
|
Storage temperature
|
|
Recommended range: -20℃~45℃
|
|
Built in bluetooth BMS Version Available
Bluetooth BMS Features
1 Bluetooth interface for battery information
2 Low temperature battery disconnect (0'C for charge, -20'C for discharge)
3 Over voltage disconnect (14.8V or above on input)
4 Low voltage disconnect
5 Cell imbalance disconnect (Cell voltage difffferential of above 0.3V)
6 Automatic cell voltage balancing
7 Over current disconnect (>120Adraw, per battery)
8 Short circuit protection
We can also do 24v 36v per unit
1 Bluetooth interface for battery information
2 Low temperature battery disconnect (0'C for charge, -20'C for discharge)
3 Over voltage disconnect (14.8V or above on input)
4 Low voltage disconnect
5 Cell imbalance disconnect (Cell voltage difffferential of above 0.3V)
6 Automatic cell voltage balancing
7 Over current disconnect (>120Adraw, per battery)
8 Short circuit protection
We can also do 24v 36v per unit
Advantages Lithium VS Lead Acid
1 Greater energy density, providing more usable power in the same space
2 Superior charge and discharge capabilities
3 Improved unit safety
Different Versions Optional
2 Superior charge and discharge capabilities
3 Improved unit safety
Different Versions Optional
1 Display screen
2 USB port
3 self-heating BMS can be work in -20 degree super cold environment.
Support make series to get 24V 48V
Unlimited to make parallels
Normally we offer two years warranty,5 Years is also OK,just price difference
Support make series to get 24V 48V
Unlimited to make parallels
Normally we offer two years warranty,5 Years is also OK,just price difference
Application
Packaging&Shipping
Factory Show
Battery capacity detector
Battery cell before assembling will be tested the capacity, internal resistant, etc. grading test.
Automatic welder
Battery is assembled by battery plastic holder-orderly and good for heat radiation, etc.
Automatic welder welding battery pack
Battery cell sorting
Automatic sorting machine,test voltage and inner resistance
Aging Testing
All battery pack will do two aging test, one is PVC pack, one is after housing.
Certifications
About us&Exhibition
Shenzhen Genxigreen Technology Co.,Ltd
Our company specialize in battery area for more than 8 years. Mainly manufacturing Lithium ion, LiFePO4, LiPolymer battery, and battery pack.
Products & Services:
1) Solar Energy Storage Battery Pack/Module
2) Li-ion Batteries used for Solar Street Light System
3) Li-ion Batteries used for EV, Forklift, AGV, E-bikes, Motorcycles, Scooters, RV.
4) Li-ion Batteries used for portable devices
5) Home Solar Power Storage System
To offer clients good quality of product and service is our mission.
Customizing battery pack is accepted, we have professional engineer, who will offer best solution for your battery project.
FAQ
1.How many people in your company?
Answer: About 100 peoples.
2.What is your capacity?
Answer: have to see for which product, solar street light 20K per month. Low speed car battery 1500pcs per month.
3. What is the lead time for our order?
Answer: Sample 10 days, bulk order 15-25 days depand on product spec.
4.Do you support ODM OEM?
Answer: Yes.
5.How many warranty you can offer?
Answer: Warranty from 1 year to 10 years according to different application.
6. How many years experiance you do battery and ship battery?
Answer: 8 years experiance in making battery, also knew well and have good channel to ship battery.
