Quick Details
-
Voltage:
-
220V/380V
-
Disc Dia.:
-
Standard
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
mage
-
Warranty:
-
1 years warranty
-
Name:
-
Automotive Spray Booth
-
Heating System::
-
RIELLO Brand Diesel Burner/ infared lamps
-
Color::
-
Cutomized
-
Filters::
-
High Efficiency Filter
-
Fans kind::
-
5.5KW
-
Lighting System::
-
LED Light
-
Certificate:
-
CE ISO
-
Customize::
-
Avilable
-
Payment term::
-
T/T
Quick Details
-
Power:
-
35.5KW
-
External Size:
-
7000*5150*3250mm
-
Internal Size:
-
6900*3900*2600mm
-
Voltage:
-
220V/380V
-
Disc Dia.:
-
Standard
-
No Load Speed:
-
0.35m/s
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
mage
-
Warranty:
-
1 years warranty
-
Name:
-
Automotive Spray Booth
-
Heating System::
-
RIELLO Brand Diesel Burner/ infared lamps
-
Color::
-
Cutomized
-
Filters::
-
High Efficiency Filter
-
Fans kind::
-
5.5KW
-
Lighting System::
-
LED Light
-
Certificate:
-
CE ISO
-
Customize::
-
Avilable
-
Payment term::
-
T/T
Product Description
Spray booth
provides a closed environment for vehicles painting with pressure controlling.
As we know that dust free, appropriate temperature and wind speed are necessary for painting.
Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of
ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a
suitable temperature, air flow and illumination.
We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems. We can also design a suitable spary booth for you according to your actual site.Contact us and you'll be pleasantly surprised.
All types can be customized, welcome to contact us!
As we know that dust free, appropriate temperature and wind speed are necessary for painting.
Then this spray booth can provide a relatively ideal painting environment; this can be controlled by several groups of
ventilation, heating system and filtering system etc. Heated air produced by the burner can help the spray booth to hold a
suitable temperature, air flow and illumination.
We can provide rock wool wallboard, EPS wallboard, electric heating, diesel heating, natural gas heating, all kinds of filtration systems. We can also design a suitable spary booth for you according to your actual site.Contact us and you'll be pleasantly surprised.
All types can be customized, welcome to contact us!
MAGE Auto Equipment is a specialists manufacturer and supplier of spray booths and associated equipment.
Our position as clear market dealers is highlighted by expertise that spans a wide range of applications, from high volume conveyorised production, car body repair and large scale special projects.
As well as being powerful force in workshop and bodyshop productivity, we have produced spray booths that meet and exceed the highly specific demands of the aviation industries and the relentless demands of industry and manufacturers.
Our spray booths are in operation throughout the world, creating the ultimate clean-air environments for spraying and ensuring fast drying times for fast, energy-efficient production. Also we can customize for customer based on the detailed request.
As well as being powerful force in workshop and bodyshop productivity, we have produced spray booths that meet and exceed the highly specific demands of the aviation industries and the relentless demands of industry and manufacturers.
Our spray booths are in operation throughout the world, creating the ultimate clean-air environments for spraying and ensuring fast drying times for fast, energy-efficient production. Also we can customize for customer based on the detailed request.
|
SPECIFICATIONS OF STANDARD SIZE CAR SPRAY BOOTH
|
|
|
|
|||
|
Outer size (mm)
|
7000*5150*3250mm
|
Inner size (mm)
|
6900*3900*2600mm
|
|||
|
Gate (mm)
|
2900*2570mm (W*H)
|
Personal door (mm)
|
700*1800mm
|
|||
|
Power
|
35.5kw/11kw
|
Voltage
|
380v/3ph/50hz or customized
|
|||
|
Cabinet system
|
Wall panel |
EPS colorful steel skin panel, 50mm thick, steel 0.426mm thick, tongue & groove style,compound construction, galvanized steel roof
panel. |
|
|||
|
|
Basement |
The basement made by high quality galvanized C-shaped steel design and square tubes assembling.2 rows of grills made by flat bar and round steel,30*4mm; 3 rows of diamond plates, galvanized.
|
|
|||
|
|
Entry door
|
Folding door, 3pcs, size 2900mm(W)*2470mm(H), with 5mm thick tempered glass window.
|
|
|||
|
|
Personal door |
Size 650mm(W)*1700mm(H), with 5mm thick tempered glass window. （There is a pressure lock on the door, which will automatically
open when the indoor air pressure is too large.） |
|
|||
|
|
Ramp
|
One pair of galvanized ramps, size 1800*650mm.
|
|
|||
|
Air circulation system
|
Intake fan
|
Two sets of 3KW Double-intake centrifugal fan, air capacity 20000m³/h in total.
|
|
|||
|
|
Exhaust fan
|
One set of 4KW exhaust fan, air capacity 12500m³/h in total.
|
|
|||
|
|
Fan cabinet
|
Fan cabinet made by painted sections and powder-coated steel plate;the ex- haust duct made by high-quality galvanized steel, and
professional flange. |
|
|||
|
Roof system
|
Beam
|
Made by 40*60 galvanized square pipe, with supporting; and also 40*40mm angle iron connected by rivet.
|
|
|||
|
|
2-layer structure |
The plenum made by galvanized steel, powder-coated on the surface. The roof filter support frame made by 25*25 and 15*15
galvanized square tubes, powder-coated on the surface. |
|
|||
|
Purfication system
|
Intake filter |
Intake filter is high quality imported filter, could capture the articles larger than 10μm.
|
|
|||
|
|
Celling filter |
High efficiency filters made in Italy, could capture the articles larger than 5μm.
|
|
|||
|
|
Floor filter
|
The floor filter is fiberglass filter, TSP≤14mg/m³.
|
|
|||
|
Heating system |
Electric heating system |

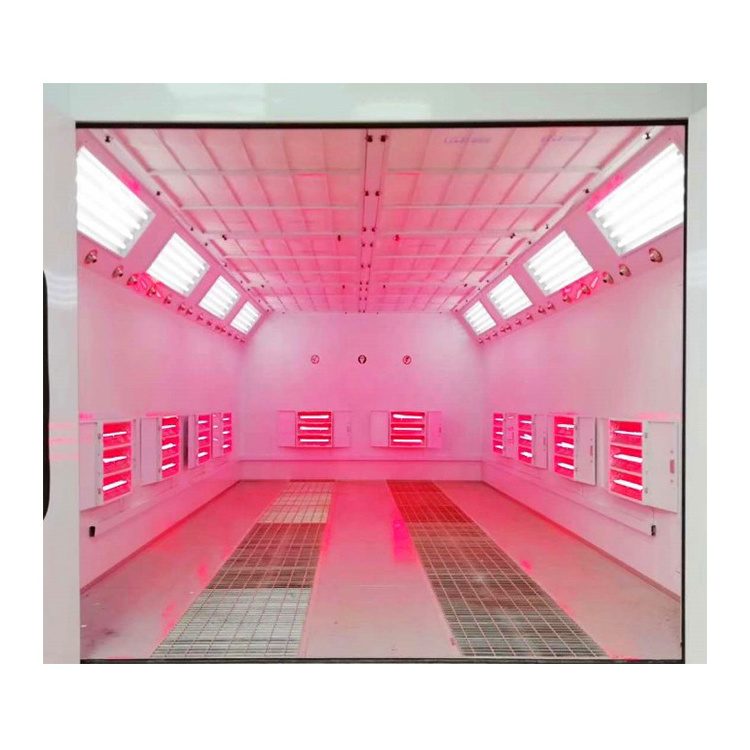

8 groups infrared curing lamps for heating, 3 lamps/unit, 1kw/lamp, each unit have a cover,total 24 tubes. Infrared heat radiation
have a feature of high penetration, efficient, no noise, pollution free etc. |
|
|||
|
|
Diesel heating system
|
RIELLO G10 diesel burner with heating exchanger, made of 1.5mm stainless steel SUS304.
|
|
|||
|
Lighting system
|
Ceiling light
|
8 Units, total 32pcs, 36w LED lamp, with Light Fixtures.
|
|
|||
|
Control system |
Switched Control Panel
|
Button type control box, with main switch
Spraying & baking switch, lighting switch, emergency stop, Breakdown alarm, temperature timer, time accumulator etc. |
|
|||
