Quick Details
-
Brand Name:
-
Zotai
-
Model Number:
-
ZT-7017A
-
Product name:
-
Electronic Bottle Cap Torque Test Equipment Supplier
-
Power supply:
-
AC220V 50HZ
-
Test range:
-
1~20Nm
-
Accuracy:
-
+/-0.5%
-
Printer:
-
built in printer
-
Peak Value Sampling Frequency:
-
2000 HZ
-
Battery life:
-
≥300 times
-
Size:
-
400mm*200mm*200mm
-
Net Weight:
-
35 KG
Quick Details
-
Warranty:
-
1year, 24 Months
-
Power:
-
Electronic
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Zotai
-
Model Number:
-
ZT-7017A
-
Product name:
-
Electronic Bottle Cap Torque Test Equipment Supplier
-
Power supply:
-
AC220V 50HZ
-
Test range:
-
1~20Nm
-
Accuracy:
-
+/-0.5%
-
Printer:
-
built in printer
-
Peak Value Sampling Frequency:
-
2000 HZ
-
Battery life:
-
≥300 times
-
Size:
-
400mm*200mm*200mm
-
Net Weight:
-
35 KG
Electronic Bottle Cap Torque Test Equipment Supplier
Specifications :
Electronic Bottle Cap Torque Test Equipment Supplier
|
Measuring range |
1N.m |
2N.m |
5N.m |
10N.m |
20N.m |
|
Division value |
0.0005N.m |
0.001N.m |
0.002N.m |
0.005N.m |
0.01N.m |
|
Sensor installation |
Built-in sensor |
||||
|
Accuracy |
±0.5% |
||||
|
Size |
4 6 0mm×2 9 0mm× 17 0mm |
||||
|
Net Weight |
20 KG |
||||
|
Power adapter |
Input : AC 220V 50HZ Output : DC 10V 300mA |
||||
Instrument Summary :

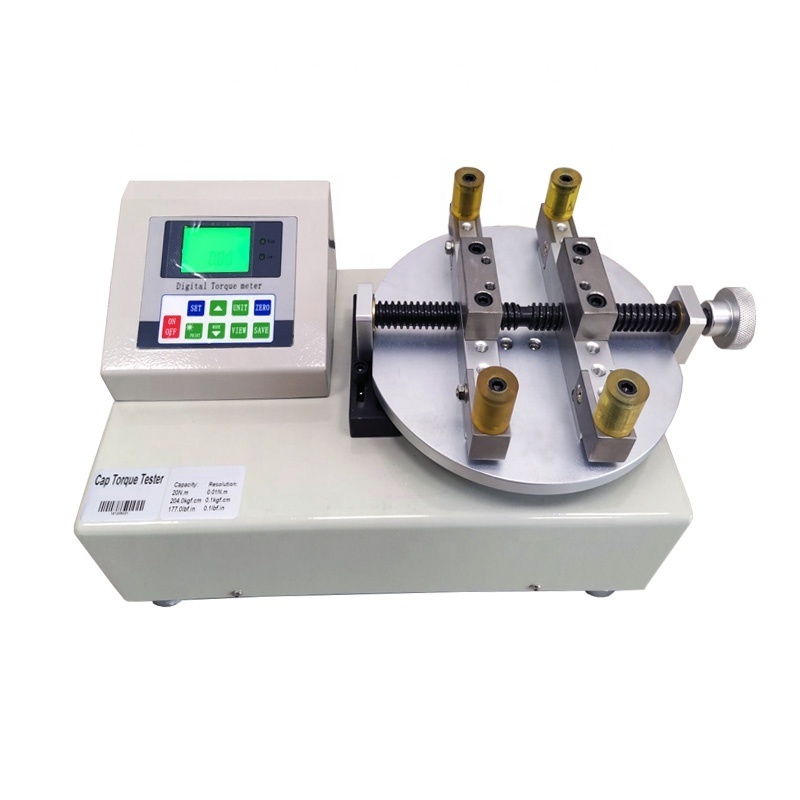

Electronic Bottle Cap Torque Test Equipment is one of intelligent multi-function instruction equipment for testing or inspecting many kinds of caps with torque. It specially is used on testing the torque of cap or lamb cap. It is widely used on product control system, with the function of easy to operate, high accuracy and economy.
Main feature:
1. High precision, high stability, high resolution
2. Free setting of upper and lower limit deviation value, automatic sound alarm and level signal output
3. Test direction display (counterclockwise +, clockwise -)
4. Segment LCD screen, green backlit screen
5. Store 99 sets of test data, and automatically calculate the average, maximum, and minimum values of the stored data
6. 3 units of N.m, kgf.cm, lbf.in are automatically interchangeable
7. Peak hold, automatic peak release function (0-99 seconds)
8. Gravity acceleration value can be set
9. Automatic shutdown without operation (free time setting 0-99 minutes)
10. Using an external smart charger, which can be charged safely and extend battery life
11. Serial port output (baud rate 9600) can print test data and maximum, minimum and average values
12. Connect to the host computer to read, store, analyze and print real-time data
1. Zotai Service:
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide operation video for machines .
2. Onsite Service:
A. Device installation;
B. Equipment Operation Test Technology training;
C. Equipment Calibration;
D. Daily maintenance and maintenance of equipment
3. Free technical training for visiting factories
4. 24-hour Online contact
5. Free software upgrades
6. Free information:
A.Product Instruction;
B.Product operation instruction/video;
C.Experiment Test (test application, test report)
7. Device Problem Handling:
A. Social media 24 hours online communication;
B. Mail Seamless Docking;
C. Video Conferencing;
D. Artificial free door-to-door service
