Quick Details
-
Model Number:
-
JS-626PR-A-Q-R/B-3H
-
Max. Current:
-
6A 10A 16A
-
Mechanical Life:
-
10000
-
Rating H:
-
6A250VAC / 10A125VAC
-
Rating T:
-
16A125VAC / 10A250VAC
-
Contact Resistance:
-
20mΩ
-
Insulation Resistance:
-
DC 500V 100MΩ(min.)
-
Dielectric Strength:
-
1500VAC 1MIN
-
Operating Temperature:
-
25°C~85°C
-
Housing Color:
-
Black/White/Gray......
-
Lamp Color:
-
Red/Green/Yellow......
-
Main Function:
-
D.P. Round Rocker Switch
-
Certification:
-
ULCUL ENEC CQC
Quick Details
-
Max. Voltage:
-
125VAC 250VAC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JEC
-
Model Number:
-
JS-626PR-A-Q-R/B-3H
-
Max. Current:
-
6A 10A 16A
-
Mechanical Life:
-
10000
-
Rating H:
-
6A250VAC / 10A125VAC
-
Rating T:
-
16A125VAC / 10A250VAC
-
Contact Resistance:
-
20mΩ
-
Insulation Resistance:
-
DC 500V 100MΩ(min.)
-
Dielectric Strength:
-
1500VAC 1MIN
-
Operating Temperature:
-
25°C~85°C
-
Housing Color:
-
Black/White/Gray......
-
Lamp Color:
-
Red/Green/Yellow......
-
Main Function:
-
D.P. Round Rocker Switch
-
Certification:
-
ULCUL ENEC CQC

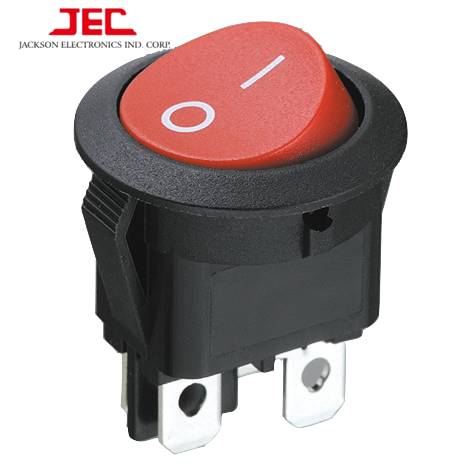

JEC RLEIL Round ROCKER SWITH 606 Series ON-OFF color light switch
JS-626PR Series
