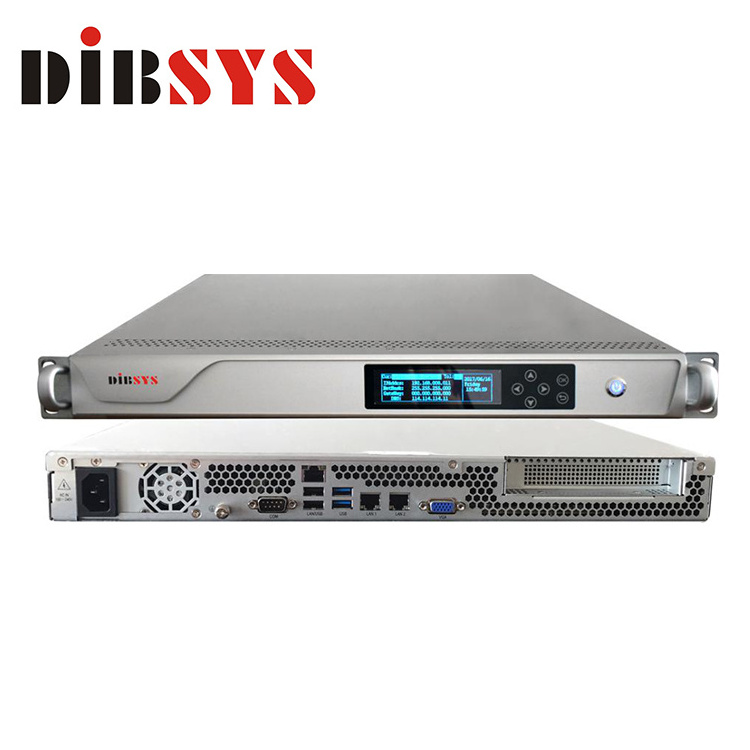

Anystream400 H.264 HEVC iptv ott system streaming server support 25SD transcoding

Anystream400 H.264 HEVC iptv ott system streaming server support 25SD transcoding

FOB Reference Price: Get Latest Price

≥1 Pieces

US $5450

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Video Encoding:: HEVC High /main Profile; H.264 High/main.baseline Profile

Number of channels:: 25channels(SD@HEVC),4channel(1080p@HEVC),1channel(4k@HEVC)

Resolution:: QSIF to 1080P

Inputs:: Mpeg-2/Mpeg-4/H.264 GigE IP

Codec Format:: MPEG-2,H.264/AVC,H.265/HEVC

Output protocol:: UDP/RTMO/RTSP/HTTP/HLS

Video Bitrate:: 32k-20Mbps

Product name:: live stream transcoder

Quick Details

Place of Origin:: China

Brand Name:: Dibsys

Model Number:: Anystream400

Video Encoding:: HEVC High /main Profile; H.264 High/main.baseline Profile

Number of channels:: 25channels(SD@HEVC),4channel(1080p@HEVC),1channel(4k@HEVC)

Resolution:: QSIF to 1080P

Inputs:: Mpeg-2/Mpeg-4/H.264 GigE IP

Codec Format:: MPEG-2,H.264/AVC,H.265/HEVC

Output protocol:: UDP/RTMO/RTSP/HTTP/HLS

Video Bitrate:: 32k-20Mbps

Product name:: live stream transcoder

Product Description

h265/h264 live stream transcoder OTT broadcast mobile IPTV headend replaced Xtream codes ffmpeg software transcoding

Overview

Anystream400 answers all market requirements and it is a suitable solution for Terrestrial, Satellite, Cable, IPTV,OTT networks. It is a real-time Max-channels transcoder, which can support 25*SD or 12*720p or 6*FullHD or 2* 4K streams Simultaneously. With the support for various encapsulation formats base on UDP, RTP/ RTSP, Pull/Push HTTP, RTMP, HLS protocols, it converts HD/SD streams H.264 or MPEG-2 to convert H.265/HEVC format, bitrate and resolution. The product can be configured to transcode up to 25 PIDs of H.264 video in a 1RU form factor, along with up to two audio PIDs per video PID.

Additional options for stream adaptation, such as deinterlacing, video scaling, frame rate conversion, and audio volume and sample rate conversion allow for serving set-top boxes, tablets, mobile phones and others.

Anystream400 provides the high bandwidth efficiency on the market, and the best video quality to end users. Purpose on Huge number of transcoded channels deployment fastly, Our R & D team also provides transcoding capable of 200 channels with high density, High reliability and Cost effective video headend distribution solution.

Key Features

1.High density 1-RU platform c an transcode up to 25*S D or 12*720p or 5*Full HD profiles

2.Optimized for 800 Kbps for SD, 1.5Mbps for HD 720p,3Mbps for HD 1080p

3.Creates simultaneous High,Medium, and Low bitrate streams (profiles) of MultiScreen IPTV application

4.H.265/HEVC Main Profiles Level 5.1

5.Baseline, main profile & high profile with variable GOP

6.Picture-in-picture (PIP) operation supported

7.HD-to-SD down, SD-to-HD up conversion

8.GbE IP outputs –UDP, RTSP, RTMP,Pull/Push HTTP, HTTP Live Smooth(HLS), FTP M3u8 playlist files

9.Flexible GOP structures with Reference-frame and B-frame edit

10.Frame rate down- and up-conversion

11.High quality pre-processing including filtering, Deinterlacing, cross scaling, image insertion

12.Support for Variable Bit Rate (VBR) encoding maximizes adaptive streaming video quality and bandwidth efficiency

13.PCR correction to accurately correct several PCR of the input data

14.Based on embedded Ubuntu Linux via flashdisk

15.DVB Subtitle and Logo insertion

16.High contrast LCD display

17.Parameter template settings and imports

18.Real time preview of input video stream in encoding and parameter configuration

19.Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≦87600 Hours

20.Real-time dynamic monitoring of each transcoding channel operation

21.Easy configuration via Web GUI

22.Designed for secure 24*365 operation

Main Application

1.Distribute Lowest bitrate H D Video to Ethern et

2.Bandwidth reduction for Internet/OTT streaming and wireless networks

3.IPTV live stream transcoding

4.Transcoding for multi-screens and devices for set-top boxes, tablets, mobile phones

5.Small/Middle-Scale Headends for Multiple System Operators

6.Upgrade H.264 to HEVC Video headend solutions

7.VOD archives from live streams

Specifications

Inputs and Outputs
Connector	Two Gig Ethernet Ports
		RJ45 100/1000M - Auto Negot
		MPEG-TS(MPTS or SPTS) Over IP input
		MPEG-2 TS (SPTS) Over IP out
		TS Over UDP/RTP/HTTP
		RTP over HTTP
		FLV Over HTTP
		RTMP
		MP3 over HTTP
		FLV
		ASP
		HTTP Live streaming Apple HLS (m3u8)

Pre-processing
LOGO insertion Subtitle Overlay	Option Static or roll subtitle, up to 3 way
Deinterlace	default, Close, Linear, Blend, Bob, Yadif
PID Configuration	PMT/Video/Audio PID;
PID Configuration		PCR delay/disp interval
Advanced Processing	In-loop De-blocking filter
		Scene detection, CABAC.
		CAVLC Entropy coding Automatic
		PicAFF,MBAFF Interlaced coding Automatic
		Flexible Macroblock Ordering(ASO) and Arbitrary
		Slice Ordering(ASO) in Baseline profile
		Flexible Macroblock Ordering(FMO) and Arbitrary
		Slice Ordering(ASO) in Baseline Profile
		8x8 vs, 4x4 Transform Adaptivity in High profile
		Quantization Scaling Matrices in High profile
		I,B and P Slices,Multiple Reference Frames

Video Processing
Bitrate Control	VBR,CBR,ABR,NearCBR
Frame rates	2-30fps
Screen Ratio	4:3, 16:9
Option	Multiple concurrent outputs per each encoding input
Video codec	H.265/ HEVC Main profile Level 4.1&5.1
		H.264 Main/High Profile 3.0- 5.1
		H.264 Baseline Levels 1, 2, 3
		H.263 Profile Levels 10, 20, 30
		MPEG-4 SP, Levels 0, 0b, 1, 2, 3
Encoding delay	1000-1500ms
B-Frame	0-5
Reference Frame	1-6
Key frame rate	1-18
Video Bitrate	32kbps to 10Mbps
Video Delay	0-1000ms
Scale	Ordinary, Auto Padding intelligent Scale
Fast Mode	Quality Priority, Balanced, Speed Priority

MPEG-2 Input	H.265 Output	Max Channels
SD/480i inputs @4Mbps	SD @800kbps, 480p	25
720p inputs@10 Mbps	720p @2Mbps	12-14
1080i/p inputs@18 Mbps	1080p @ 4Mbps	5-6
4k/H.264 @20Mbps	4k @ 12Mbps	1-2
Resolution	3840x2160p(UHD)
		1920x1080p,1280x720p
		720x576p,720x480p,640x480p,480x360p,
		Configurable

Audio Processing
Numbers of encoding	2 audio Channels per one video source (Provides up to 8 audio channels for customization)
Audio encoding	AAC,AACv2,AMR
		D Digital(AC-3)
		D Digital Plus(EAC-3)
		MP2A,MP3A,Transparent
Audio Channel	Single, Dual, 5.1 Channel
Audio Track	0, 1, 2, 3
AV Sync	0s, 0.5s, 1s, 3s, 4s, 5s, 6s
Sample rate	8khz to 48khz
Bitrate rate	8kbps to 384kbps
Volume	Ordinary, Intensity1, Intensity2, Intensity3
AGC	On, Off

Management
Local interface	Front panel keypad and LCD
Configuration	Web browser interface
Port	RJ45, 10/100/1000M Base-T
Language	English

Environment
Cooling	Front to rear airflow
Power Supply	110-240 VAC
Operation temperature	0~50℃ (32 -122°F)
Storage temperature	-40-70°C (-40-158°F)
Power Consumption	200W
Dimensions	483mm (W) x 534mm (L) x 45mm (H)
Weight	11kg (24lbs)
