Quick Details
-
Voltage:
-
220V/380V/415V/480V/600V
-
Dimension(L*W*H):
-
1000mm*2000mm*1200mm
-
Weight:
-
500 KG
-
Product name:
-
linear vibrating screen
-
Material:
-
carbon steel
-
Motor:
-
two vibration motor
-
Usage:
-
separation\screening
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
10-20t/h
-
Screen mesh size:
-
2-500 mesh
-
Shape:
-
linear
-
Advantage:
-
high yield
-
Used for:
-
mining
Quick Details
-
Type:
-
LINEAR
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Gaofu
-
Voltage:
-
220V/380V/415V/480V/600V
-
Dimension(L*W*H):
-
1000mm*2000mm*1200mm
-
Weight:
-
500 KG
-
Product name:
-
linear vibrating screen
-
Material:
-
carbon steel
-
Motor:
-
two vibration motor
-
Usage:
-
separation\screening
-
Layer(s):
-
1-5 Layers
-
Capacity:
-
10-20t/h
-
Screen mesh size:
-
2-500 mesh
-
Shape:
-
linear
-
Advantage:
-
high yield
-
Used for:
-
mining
Why Choose Us
Our strength
more than 350 mployees,
20 designers technical team,
10 production line ,
30,000 sets per year
60,000+m² cover area
20 designers technical team,
10 production line ,
30,000 sets per year
60,000+m² cover area
Fine Quality
The machine key part vibration motor is also produced by our factory .
ISO9001, ,CE,TUV,BV ,SGS certificated.
Our products have been exported more than 100 countries .
Fine feedback from customer.
ISO9001, ,CE,TUV,BV ,SGS certificated.
Our products have been exported more than 100 countries .
Fine feedback from customer.
Superior Service
Free design for your whole production line .
Technical drawing is offered before production .
The inspection videos will be sent before shipment .
The inspection videos will be sent before shipment .
Product Description
Technical parameters
|
Model
|
Size
(mm)
|
Granularity(mm)
|
Leanangle
(°)
|
Amplitude (mm)
|
Layers
|
Power
(kw)
|
|
SZF-520
|
500X2000
|
|
0°-7°
|
4-10
|
1-6
|
2x(0.4-0.75)
|
|
SZF-525
|
500X2500
|
|
|
|
|
2x(0.4-0.75)
|
|
SZF-1020
|
1000X2000
|
|
|
|
|
2x(0.4-0.75)
|
|
SZF-1025
|
1000X2500
|
|
|
|
|
2x(0.4-1.1)
|
|
SZF-1030
|
1000X3000
|
|
|
|
|
2x(1.1-1.5)
|
|
SZF-1040
|
1000X4000
|
|
|
|
|
2x(1.1-1.5)
|
|
SZF-1235
|
1200X3500
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1250
|
1200X5000
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1535
|
1500X3500
|
|
|
|
|
2x(1.1-2.2)
|
|
SZF-1565
|
1500X6500
|
|
|
|
|
2x(2.2-3.7)
|
|
SZF-1845
|
1800X4500
|
0.074-15
|
|
|
|
2x(2.2-3.7)
|
|
SZF-2050
|
2000X5000
|
|
|
|
|
2x(2.2-3.7)
|
|
SZF-2260
|
2200X6000
|
|
|
|
|
2x(2.2-3.7)
|
S
ZF

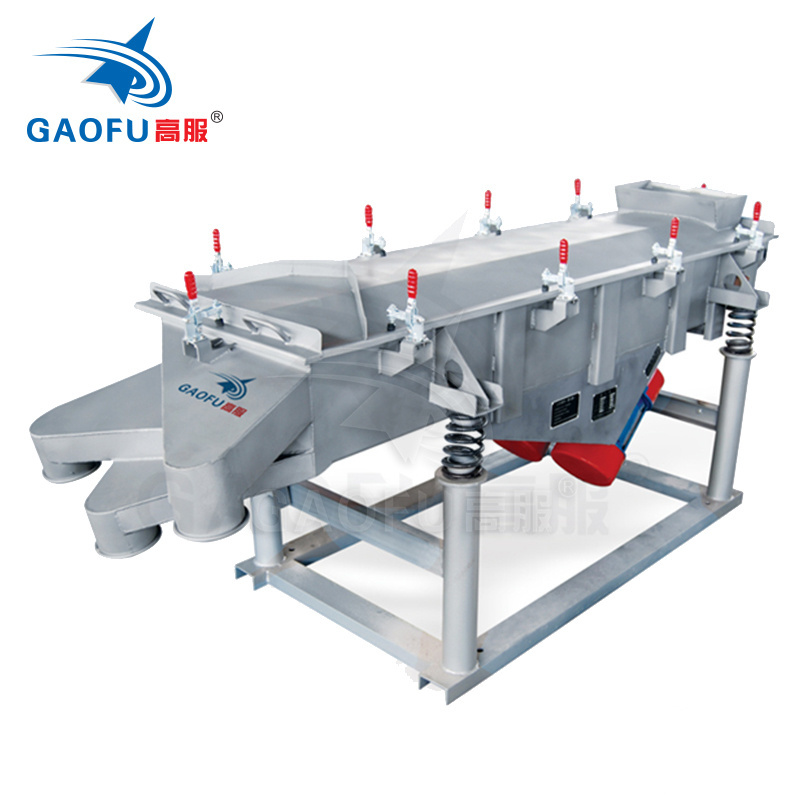

series linear sieve separating machine use vibration motor as vibration source, the material is rosed and moved in the straight at the same time. The material are entered into entrance equality, and then go through screen to create the materials with different sizes, which was discharged, from different gates. It is suitable for low consuming, high output, and simple structure, easily maintain all-closed structure, no powder dispersed.
The two motor of the machine do relative work, so that the material on the surface do jumping movement, material less than the mesh hole will fall to the lower deck ,and discharged after continuous jump.Because of the screening process is reasonable ,the materials after classification can obtain serveral different particle size,then the classification work is finished .
Suitable for coarse mesh and the material with strong grading ,such as sand building material
Spring
The spring of the machine adopt 65mn steel,it has long service life, safe and reliable .
Cover and dust removal hole
Gaofu design the cover with dust removal hole,if your material has a lot of dust, this design meets environmental protection requirement, and protect workers' health.
Cleaning Device
:
The machine adopt bouncing ball as cleaning device ,to avoide the material clog the mesh hole.
