Quick Details
-
Mounting Type:
-
Flexible spring plate
-
Description:
-
Hoop locking structure encoder, K76 hollow shaft encoder
-
Manufacturing Date Code:
-
2024
-
Model Number:
-
K76 hollow shaft encoder
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HENGXIANG
-
Theory:
-
incremental encoder type, Optical sensor
-
Output:
-
square-wave signal
-
Usage:
-
PRESSURE SENSOR
-
Item Name:
-
K76 hollow shaft encoder 24v dc motor encoder 48000ppr
-
External diameter:
-
76.5mm
-
Shaft diameter:
-
30/28/25/22/20/18mm
-
Thickness:
-
28mm
-
Protection grade:
-
IP50
-
Optional:
-
DC5V & DC8V-30V
-
Outlet type:
-
wire out from side
-
Output mode:
-
NPN & voltage output & push-pull output & difference output
Quick Details
-
Use:
-
measure speed or angle
-
Series:
-
K76 hollow shaft encoder
-
Features:
-
Self-designed encoder
-
Mounting Type:
-
Flexible spring plate
-
Description:
-
Hoop locking structure encoder, K76 hollow shaft encoder
-
Manufacturing Date Code:
-
2024
-
Model Number:
-
K76 hollow shaft encoder
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
HENGXIANG
-
Theory:
-
incremental encoder type, Optical sensor
-
Output:
-
square-wave signal
-
Usage:
-
PRESSURE SENSOR
-
Item Name:
-
K76 hollow shaft encoder 24v dc motor encoder 48000ppr
-
External diameter:
-
76.5mm
-
Shaft diameter:
-
30/28/25/22/20/18mm
-
Thickness:
-
28mm
-
Protection grade:
-
IP50
-
Optional:
-
DC5V & DC8V-30V
-
Outlet type:
-
wire out from side
-
Output mode:
-
NPN & voltage output & push-pull output & difference output
Products Description
1.Highlights of K76 encoder

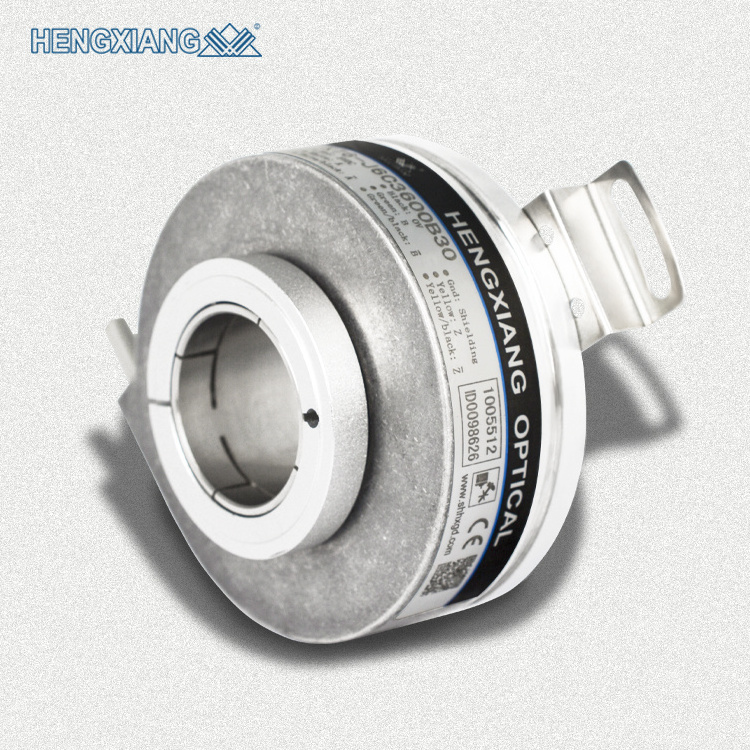

2.Real product image
Model Selection Guide
3.Dimension
4.
Electrical parameters
|
Items
|
Basic parameters
|
|
|
Encoder type
|
Incremental encoder
|
|
|
Brand
|
HENGXIANG
|
|
|
External diameter
|
76.5mm
|
|
|
Thickness
|
37mm
|
|
|
Installation dimension
|
69mm; 96mm
|
|
|
Hollow shaft type
|
through hole (clamping ring at prior and clamping ring at rear)
|
|
|
Hollow shaft diameter
|
18mm,20mm,22mm,25mm,28mm,30mm
|
|
|
Resolution
|
100;200;250;300;360;400;450;500;512;600;720;800;1000;
|
|
|
|
1024;1200;1800;2000;2048;2500;3000;3600;4096;5000;
|
|
|
|
7200;8192;10000;14400;16384;28800;32768;64000;65536
|
|
|
|
1024/4;1024/6;1024/8;2048/4;2048/6;2048/8;2500/4;2500/6;
|
|
|
|
2500/8;4096/8;4096/6;4096/16;5000/4;5000/6;5000/8;5000/10;5000/12;5000/16;
|
|
|
|
8192/8;8192/10;/8192/16;10000/8;10000/10;10000/16
|
|
|
Output phase
|
Phase A+,B+,Z+,A-,B-,Z-,U+,V+,W+,U-,V-,W-
|
|
|
Supply voltage
|
DC5V ; DC8-30V
|
|
|
Outlettype
|
Cable out from side
|
|
|
Output mode
|
NPN/PNP(Open Collector Output)
|
|
|
|
Voltage output
|
|
|
|
Push-pull output
|
|
|
|
line drive (DC5V, 26LS31/26C31) TTL
|
|
|
|
line drive(DC8-30V) HTL
|
|
|
Consumption current
|
120mA MAX
|
|
|
Top response frenquency
|
300KHZ
|
|
|
Allowable ripple
|
≤3%rms
|
|
|
Load Voltage
|
≤DC30V
|
|
|
GND
|
not connect to encoder
|
|
|
Mark to Space ratio
|
45% to 55%
|
|
|
starting torque
|
less than 80 x 10-3 N.m
|
|
|
Intertia moment
|
less than 100x 10-6kg.m2
|
|
|
Shaft load
|
Radial 70N; Axial 50N
|
|
|
Top REV
|
≤3000RPM
|
|
|
Environmental temperature
|
Operating:-20 ～+85°；storage:-25 ～+90°
|
|
|
Enviromental humidity
|
Operating and storage: 35-85%RH(noncondensing)
|
|
|
Vibration(endure)
|
Amplitude 0.75mm,5-55Hz,2 hours for three axis individually
|
|
|
Sock(endure)
|
1960m/s2 ,11 ms three times for X,Y,Z direction individually
|
|
|
Shaft Material
|
Stainless steel
|
|
|
Shell Material
|
Aluminium alloy
|
|
|
Cable length
|
1000mm(cable with shielding)
|
|
|
Protection grade
|
IP50
|
|
|
Certification
|
CE
|
|
|
package
|
Carton box
|
|
|
Net weight
|
About 360g (with package)
|
|
