Quick Details
-
Voltage:
-
220/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Keepway
-
Dimension(L*W*H):
-
1650*800*1450mm,1600*660*760mm
-
Weight:
-
380 KG
-
Certification:
-
CE ISO
-
Product Name:
-
automatic heat tunnel shrink wrapping machine
-
Max.Packing Size:
-
550*450mm
-
Packing Speed:
-
15-30bags/min
-
Conveyor Speed:
-
0-15m/min
-
Conveyor Load:
-
Max 20kgs
-
Suitable Film:
-
center folded POF film
-
Keyword:
-
Automatic Shrink Wrap Machine
-
Function:
-
Shrinking Sealing
-
Packing material:
-
POF Shrink Film
-
Usage:
-
Film Shrink Packager
Quick Details
-
Packaging Type:
-
Film
-
Packaging Material:
-
Plastic
-
Driven Type:
-
Electric
-
Voltage:
-
220/380V
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Keepway
-
Dimension(L*W*H):
-
1650*800*1450mm,1600*660*760mm
-
Weight:
-
380 KG
-
Certification:
-
CE ISO
-
Product Name:
-
automatic heat tunnel shrink wrapping machine
-
Max.Packing Size:
-
550*450mm
-
Packing Speed:
-
15-30bags/min
-
Conveyor Speed:
-
0-15m/min
-
Conveyor Load:
-
Max 20kgs
-
Suitable Film:
-
center folded POF film
-
Keyword:
-
Automatic Shrink Wrap Machine
-
Function:
-
Shrinking Sealing
-
Packing material:
-
POF Shrink Film
-
Usage:
-
Film Shrink Packager
Product Description

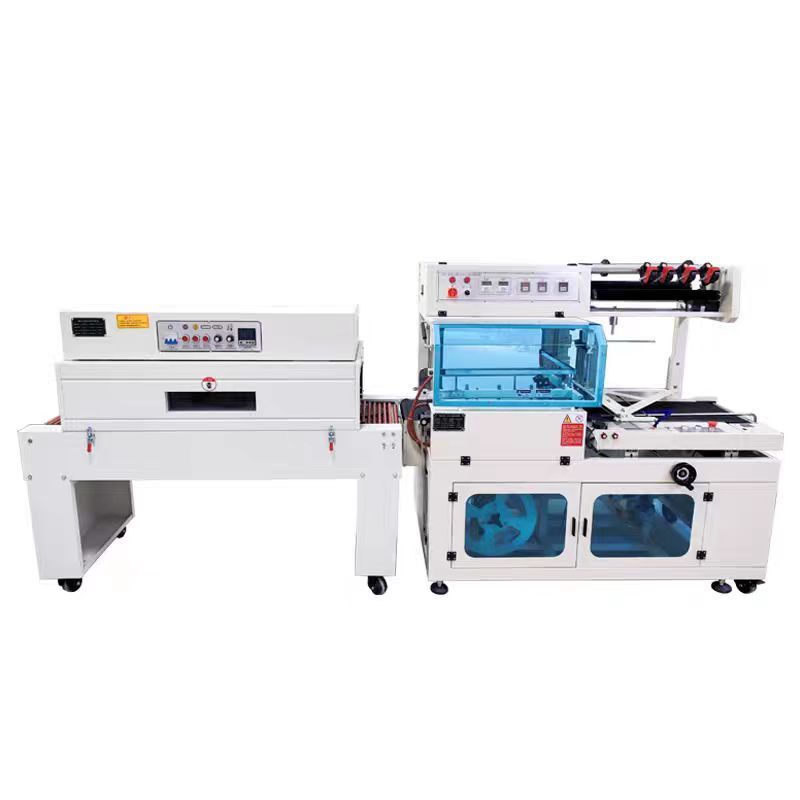

Automatic Sealing Cutting Shrink Wrapping Packing Machine
The L type automatic sealing machine can be used for automatic online shrink packaging of products. It uses photoelectric to automatically detect the products.
It can choose two modes of automatic feeding or manual feeding.
It adopts half-folding film and can seal the other three sides. The constant temperature heating sealing and cutting system can be used for sealing and cutting various industrial standard heat sealing films such as PE, PVC, POF, etc.
When the product size is changed, it only needs to be adjusted simply by the hand wheel, without replacing any parts, reducing the product replacement time and making it easier to operate.
The speed-adjustable front-end feeding system and the back-end storage work platform enable the whole machine to achieve high-speed and unmanned automatic operation.
Product Parameters
Sealing Machine
|
KPW-FQL450A
|
Tunnel Machine
|
KPW-BSN4020C
|
Voltage
|
220V,50-60HZ,1 Phase
|
Voltage
|
220/380V,50-60HZ,
3 phases
|
Power
|
1.35KW
|
Power
|
9KW
|
Air Pressure Required
|
5-7kg/cm3
|
Tunnel Size(L*W*H)
|
1200x400x200mm
|
Packing Speed
|
15-30bags/min
|
Products Size(W*H)
|
300x100mm
|
Max.Packing Size
(L+H,H<150mm)
|
< 500mm
|
Conveyor Speed
|
0-15m/min
|
Max.Packing Size
(W+H,H<150mm)
|
< 400mm
|
Conveyor Material
|
Chain Roller
|
Cutter Size L*W(mm)
|
550×450
|
Max.Load
|
20kgs
|
Machine Size(L*W*H)
|
1650x800x1450mm
|
Machine Size(L*W*H)
|
1600x660x760mm
|
Machine Weight
|
300kg
|
Machine Weight
|
80kg
|
Suitable Film
|
POF.PE
|
Suitable Film
|
POF.PVC.
|
Details Images
Effect of heat shrink packaging
Product Advantage
Film frame support conveying mechanism
Alloy knife sealing and cutting mechanism
Front-end bagging mechanism
Product Real Pictures
Packing & Delivery
Customer Photos
Sales Service
How about your pre-sales service?
a: Our sales team will supply professional product information and 98.5% response rate.
b: Our engineers will provide professional guidance according to the actual production needs of customers and recommend the most suitable models for customers.
If it is easy to operate of your machine?
a: Under the condition of ensuring safe transportation, we will not disassemble the machine very much, so that it can be easier to install and debug after you receive our equipment.Meanwhile We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
a: Our sales team will supply professional product information and 98.5% response rate.
b: Our engineers will provide professional guidance according to the actual production needs of customers and recommend the most suitable models for customers.
How about your after-sales service?
a: Usually our warranty period is 1 years.Not only spare parts,we also supply online technical support of all life of machines.
b: When we get your order,we will start production with in 1-2 working days,our sales will report you the production progress in time.After finishing production,we will supply machine running video to let you check.
c. All equipment is strictly tested by professional engineers before leaving the factory to ensure that customers can put the equipment into production in time after receiving.
d. The data of each factory equipment is entered into the computer, and after-sales engineers regularly check the use of the customer.
e. At the same time provide 7×24 Receive maintenance information within hours, assist you in solving problems according to the situation, and ensure that you can use it normally.
a: Usually our warranty period is 1 years.Not only spare parts,we also supply online technical support of all life of machines.
b: When we get your order,we will start production with in 1-2 working days,our sales will report you the production progress in time.After finishing production,we will supply machine running video to let you check.
c. All equipment is strictly tested by professional engineers before leaving the factory to ensure that customers can put the equipment into production in time after receiving.
d. The data of each factory equipment is entered into the computer, and after-sales engineers regularly check the use of the customer.
e. At the same time provide 7×24 Receive maintenance information within hours, assist you in solving problems according to the situation, and ensure that you can use it normally.
If it is easy to operate of your machine?
a: Under the condition of ensuring safe transportation, we will not disassemble the machine very much, so that it can be easier to install and debug after you receive our equipment.Meanwhile We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
