- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
/
-
Dimension(L*W*H):
-
4140*1940*2156mm
-
Weight:
-
4585kg, 4585KG
-
Working Pressure:
-
25bar
-
Air capacity:
-
25.4/22.8 m3/min
-
Model:
-
V900
-
Rated working pressure:
-
20/25bar
-
Displacement:
-
25.4/22.8 m3/min
-
Lubricating oil capacity:
-
89L
-
Engine:
-
(QSL8.9-C360-30)
-
Number of cylinders:
-
6
-
Full load speed:
-
1900/1700r/min
-
Output Power:
-
264KW
-
Standard for Emission:
-
China III
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Famous
-
Model Number:
-
V900
-
Voltage:
-
/
-
Dimension(L*W*H):
-
4140*1940*2156mm
-
Weight:
-
4585kg, 4585KG
-
Working Pressure:
-
25bar
-
Air capacity:
-
25.4/22.8 m3/min
-
Model:
-
V900
-
Rated working pressure:
-
20/25bar
-
Displacement:
-
25.4/22.8 m3/min
-
Lubricating oil capacity:
-
89L
-
Engine:
-
(QSL8.9-C360-30)
-
Number of cylinders:
-
6
-
Full load speed:
-
1900/1700r/min
-
Output Power:
-
264KW
-
Standard for Emission:
-
China III
Contact
Sales Manager
Phone/Skype/WhatsApp: +8617852035877 https://www.facebook.com/0324Judy
Email: judy@maxizm.com WWW.maxizm.com
Maxizm Construction Machinery (Qingdao) Co., Ltd.
www.maxizm.com

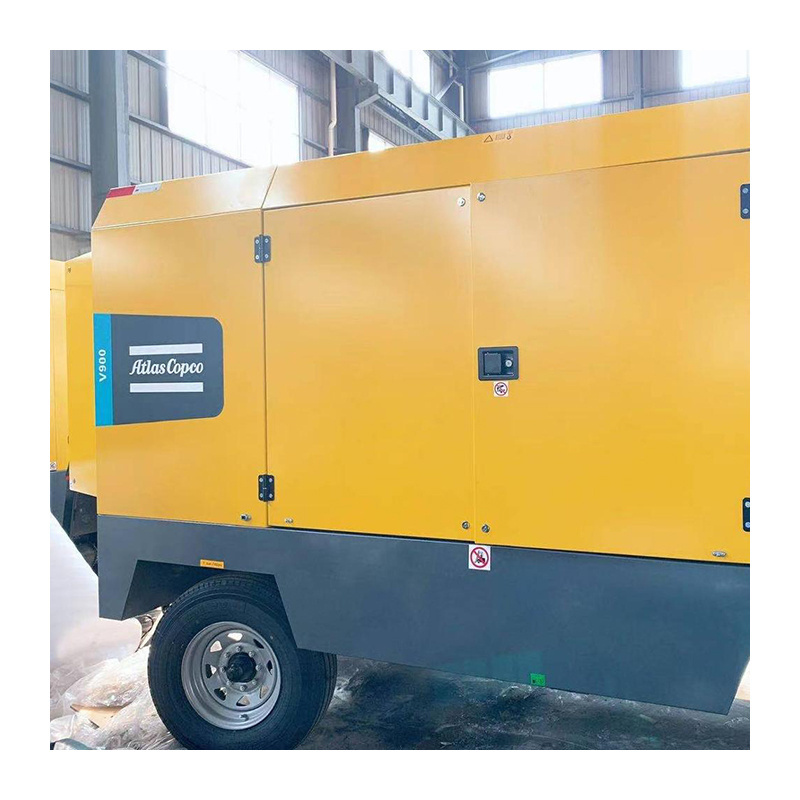

High Pressure Atlas Copco V900 25bar Two- Stage 805c Diesel Screw Air Compressor
Products Description
V900 air compressor
This series of air compressors is equipped with a screw rotor developed by Atlas Copco, which has quality assurance; a uniqueprofile design, solid and reliable, ensuring high efficiency and low consumption. The whole system is equipped with Cumins three-emission engine with strong power.
The leading high-pressure common rail technology can effectively reduce fuel consumption and reduce emissions
This series of air compressors is equipped with a screw rotor developed by Atlas Copco, which has quality assurance; a uniqueprofile design, solid and reliable, ensuring high efficiency and low consumption. The whole system is equipped with Cumins three-emission engine with strong power.
The leading high-pressure common rail technology can effectively reduce fuel consumption and reduce emissions
Atlas Copco V900 air compressor is equipped with dynamic air volume adjustment function. During the drilling phase, the combination of air compressor exhaust pressure and gas volume can be automatically adjusted according to the depth of the drilling, thereby speeding up the drilling speed and increasing the overall drilling speed by 10%. Efficiency goes up, but fuel consumption is 5% lower than traditional air compressors
Product Paramenters
|
Working Pressure
|
20/25bar
|
|
Air Discharge Volume
|
25.4/22.8 m3/min
|
|
Compressor oil
|
89 L
|
|
1Size of Discharge Valve
|
1*2", 1*3/4"
|
|
Engine brand
|
(QSL8.9-C360-30)
|
|
Number of cylinders
|
6
|
|
Full-load Speed
|
1900/1700 prm
|
|
Rated Output Power
|
264KW
|
|
Engine oil
|
21 L
|
|
Coolant Capacity
|
58 L
|
|
Fuel Tank Capacity
|
420 L
|
|
Standard for Emission
|
China III
|
|
Dimensions:undercarriage
|
|
|
Length
|
4100
|
|
Width
|
2100
|
|
Height
|
2500
|
|
Weight
|
4585
|
