Quick Details
-
Applicable Industries:
-
Printing
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WeiGang
-
Dimensions(L*W*H):
-
2400x950x1500MM
-
Weight:
-
1100KG
-
Certification:
-
CE,ISO
-
Warranty:
-
1year
-
options 1:
-
UV dryer (baoding brand)
-
Marketing Type:
-
Hot Product
Quick Details
-
Condition:
-
New
-
Color & Page:
-
Multicolor
-
Voltage:
-
220Vd10%
-
Applicable Industries:
-
Printing
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
WeiGang
-
Dimensions(L*W*H):
-
2400x950x1500MM
-
Weight:
-
1100KG
-
Certification:
-
CE,ISO
-
Warranty:
-
1year
-
options 1:
-
UV dryer (baoding brand)
-
Marketing Type:
-
Hot Product
Product Description

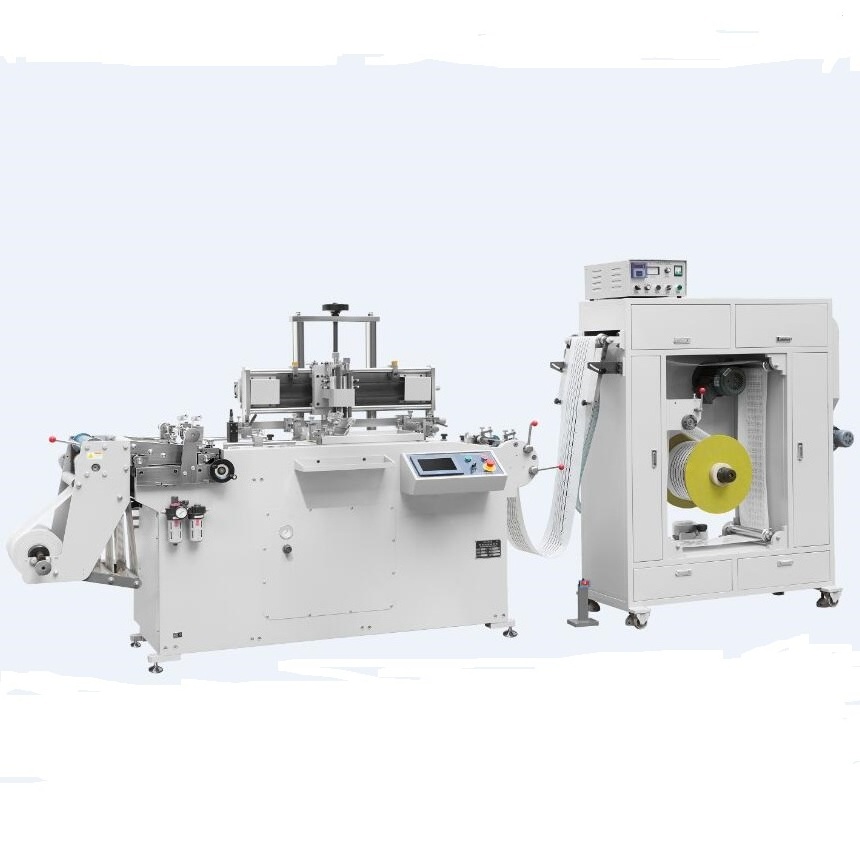

WQ-320 Silk Screen Printing Machine
WQ-320 series CNC silk screen printing machine is applicable for printing on variety of material, like PVC, OPP, ant counterfeit trademarks and adhesive labels, and more. It can finish printing, drying and rewinding at one stroke.
The material towing is controlled by servo motor, the main machine driving part adopts pneumatic device,and the web-guiding is tracked by photocells.The machine has the characteristics of high accurate color register, steady material-feeding,
automatic counter and alarm, convenient adjustment and compact sturcture, etc
Weigang Machinery Company is a professional silk screen printing machine manufacturer and supplier based in China .
We have been ISO 20000-1:2011certified ,In addition to silk screen presses , we can also provide flexo printing machines, offset printing equipment and die-cutting machinery, and more. All our products are CE certified and are sought after by customers from the United Stated, Spain, Portugal, Russia, South Korea, among over 80 countries.
Specification
|
Machine model
|
WQ-320
|
|
Printing speed
|
10-80 t/min
|
|
Max. web width
|
320mm
|
|
Max.Printing width
|
300mm
|
|
Max. Printing length
|
320mm
|
|
Accuracy
|
+/-0.15mm
|
|
Main motor power
|
1.2KW
|
|
Oven power
|
4.1KW
|
|
Main machine dimension
|
2400*950*1500mm
|
|
Oven dimension
|
1750*600*1800
|
Packing & Delivery
Packed by standard wooden case
