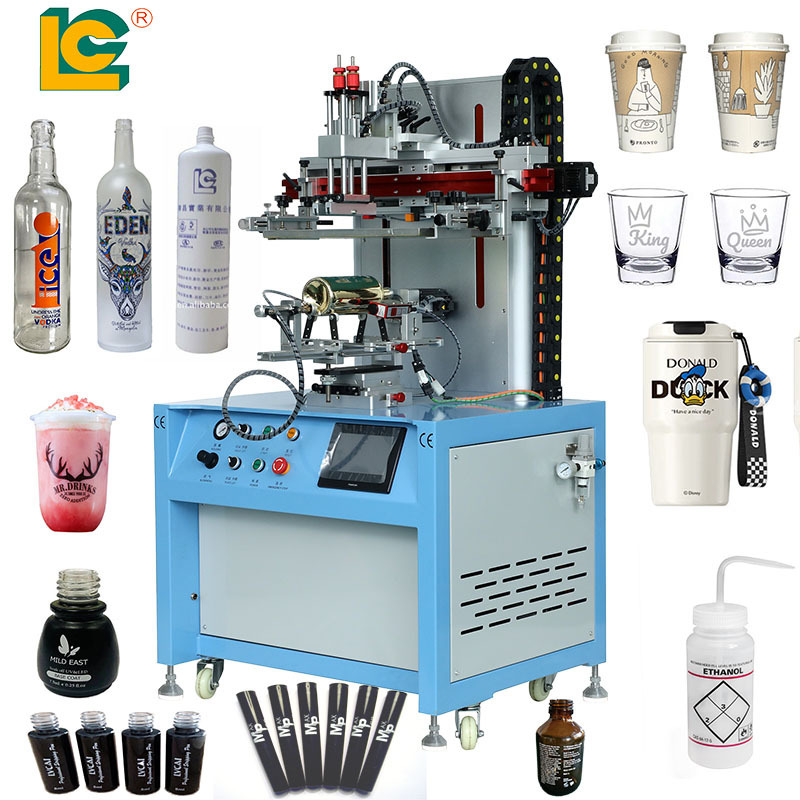

Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor
Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor
Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor
Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor
Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor
Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor
Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor
Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor

Plastic Cup Serigraphic Printing Machine LC Brand Semi Automatic Bottle Screen Printing Machine with Servo Motor

FOB Reference Price: Get Latest Price
≥1 Sets
US $6600
≥5 Sets
US $5990
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
LC
Dimensions(L*W*H):
1030*1000*1480mm
Weight:
300 KG
Certification:
CE
Model:
LC-PA-400ES
Product appearance:
Round
Max Printing diameter:
120mm (it can be customized by the product diameter )
Printing Speed:
1500 PC/Hr
Machine weight:
300kg
Machine size:
980*880*1390mm
Package Size:
1030*1000*1480mm
Power:
2KW
Air pressure:
6-8bar
Voltage power:
220V/ 50HZ or 110V/60HZ

Quick Details

Condition:
New
Color & Page:
single color
Voltage:
220V/ 50HZ or 110V/60HZ
Place of Origin:
Guangdong, China
Brand Name:
LC
Dimensions(L*W*H):
1030*1000*1480mm
Weight:
300 KG
Certification:
CE
Model:
LC-PA-400ES
Product appearance:
Round
Max Printing diameter:
120mm (it can be customized by the product diameter )
Printing Speed:
1500 PC/Hr
Machine weight:
300kg
Machine size:
980*880*1390mm
Package Size:
1030*1000*1480mm
Power:
2KW
Air pressure:
6-8bar
Voltage power:
220V/ 50HZ or 110V/60HZ
Product Description
Model Name
LC-PA-400ES
Printing Speed
1500 pcs/hr
(Round)Max. Printing diameter
120 mm
(Round)Max printing arc length
370 mm
Package dimensions
1030*1000*1480 mm
Machine weight
300 kg
Power requirements
AC380V 3Phase 50Hz /60Hz
Rated power
4 kw
Air pressure
0.5 Mpa
LC-PA-400ES adopted 2sets ABB Swiss Servo Motor, German Leuze color sensor and Japan Hitachi PLC system. One servo is for Screen movement, another servo is for Fixture rotation. And the German Leuze color sensor is used to recognized the print position. It make sure to accurate position of products and no need to adjustment . It's suitable for bottles, cups, tubes and etc.

Advantages: 1. Round printing function (taper section) 2. Automaticoil scrabbing, oil return and lifting table 3. Adujustability of routs and speeds 4. Self-poise scraper to balance printing pressure 5. Adjustable table (fluctuation & round) and netting easel (fluctuation & both sides) 6. High precision and easy & quick adjustability
