Quick Details
-
Brand Name:
-
GN
-
Model Number:
-
CX-FLM-KEY
-
Product name:
-
Magnetic float level switch
-
operation mode:
-
omnibearing
-
Medium:
-
non-corrosiveness liquid
-
fluid density:
-
0.70-1.15
-
max pressure:
-
10bar
-
max temperature:
-
60℃
-
Protection Grade:
-
IP 68
-
electrical characteristic:
-
24VDC
-
cut out power:
-
16 Aresistance 6A-response
-
inching switch:
-
silver / Nireverse contact
-
Certification:
-
ISO, CE
Quick Details
-
Grade:
-
Industrial
-
Warranty:
-
yes
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GN
-
Model Number:
-
CX-FLM-KEY
-
Product name:
-
Magnetic float level switch
-
operation mode:
-
omnibearing
-
Medium:
-
non-corrosiveness liquid
-
fluid density:
-
0.70-1.15
-
max pressure:
-
10bar
-
max temperature:
-
60℃
-
Protection Grade:
-
IP 68
-
electrical characteristic:
-
24VDC
-
cut out power:
-
16 Aresistance 6A-response
-
inching switch:
-
silver / Nireverse contact
-
Certification:
-
ISO, CE
The Ball Float Level Sensor
A.[Feature of Ball Float Level Sensor]
- Good design and strict production technics;
- Adopt stainless steel material,high mechanical strength and good sealing;
- Cable adopt special material, it have high oil,acid,alkali,corrosive resistance.
- The ON or OFF switch control signal is very reliable and stable,without any error;
- Easy to installation,convenient to debug,fast fluctuation shift random to select the control range.
B.[Parameters]
| Ball Float Level Sensor--Basic production Info | |
| Rating current and voltage | 10(8A) 250V-10(4A) 380V; |
| Rating power | 1Kw |
| Working temperature | -20~170℃ |
| Accuracy | +/-0.05m |
| Working pressure | 1 atm |
| Medium | Rinsing;sewage;oil |
| Cable length | Standard is 5meters (can customized for you) |
| Contact capacity | 10A /250VAC |
| High tempeature type | ss304 float ball,mercury switch contact,high flexible silicome cable can reach high temperaturer |
| Normal temperature type | ss304 float ball,reed switch or mercury switch contact CCC certificate high-quality rubber cable |
| It can customized the anti-corrosive stainless float(just for normal temperature type switch) | |
| Power life | 1×100000 times |
| Machine life | 5×100000 times |
C.[Installation]
- Use the black and blue wire.
when the float is on the level surface,the contact is under the obstructed status,when the float is under the water,the contact is turn-on status;
- Use the black and yellow wire
When the float is on the level surface,the contact si turn-on status,when is under the water,the contact is the obstructure status;

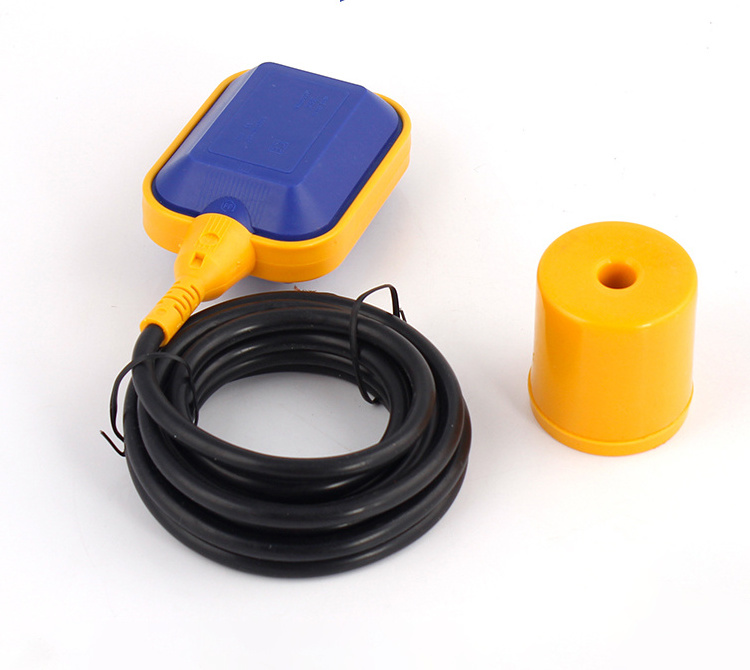

- Installation of fixed hammer
The level control height is decided by the cable length of magnetic float type level switch and the position of the hammer;
- The ways of install the hammer
- Displace snap ring of the plastic non-cone terminal,and to the appropriate place on the cable.
- Then let the cable penetrate the terminal of the plastic cone,the snap ring of set on the cable limit the position of the hammer;
-
Finally,fixed the cable outside of the container,let the cable connect to control box and avoid using middle joint.if it need joint forbid to put the joint in he water.
