Toowei Factory Supply CE RoHS Approval IP67 12MM Waterproof micro automotive push button switches

Toowei Factory Supply CE RoHS Approval IP67 12MM Waterproof micro automotive push button switches

FOB Reference Price: Get Latest Price

≥100 Pieces

US $1.19

≥2000 Pieces

US $1.13

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Zhejiang, China

Brand Name:: Toowei

Model Number:: 4126.8102.18 4126.8202.18

IP level:: IP67

Product name:: IP67 12MM Waterproof micro automotive push button switches

Part number:: 4126.8102.18 4126.8202.18

Rating:: 3A 250VAC

Function:: Latching/momentary

Mounting Hole Size:: 12MM

Terminal:: Soldering

Protection level:: IP67

Light color optional:: Red, Green, Yellow, Blue, White

Button color can be selected:: Red, Black, Grey, Blue, Orange, Yellow, Green, White

Material:: black plastic

Quick Details

Protection Level:: IP67

Max. Current:: 3A

Max. Voltage:: 250V

Place of Origin:: Zhejiang, China

Brand Name:: Toowei

Model Number:: 4126.8102.18 4126.8202.18

IP level:: IP67

Product name:: IP67 12MM Waterproof micro automotive push button switches

Part number:: 4126.8102.18 4126.8202.18

Rating:: 3A 250VAC

Function:: Latching/momentary

Mounting Hole Size:: 12MM

Terminal:: Soldering

Protection level:: IP67

Light color optional:: Red, Green, Yellow, Blue, White

Button color can be selected:: Red, Black, Grey, Blue, Orange, Yellow, Green, White

Material:: black plastic

Products Description

A4126series waterproof push button switch, protection degree reach IP67, installation size is 12mm. According to the material, it has metal push button switch and plastic push button switch. All the switches has self-locking and momentary two different kinds. If equip with LED light, color can be customized based on the customer's request.

It widely used in beauty equipment, small yacht, lamps, medical equipment, military communication intelligent network equipment and the other instruments.

Product name	Toowei Factory Supply CE RoHS Approval IP67 12MM Waterproof micro automotive push button switches
Part number	4126.8102.18/ 4126.8202.18
Function	latching/momentary
Dimension	12MM
Button Color Optional	Red, Black, Grey, Blue, Orange, Yellow, Green, White
Light Color Optional	Red, Green, Yellow, Blue, White
Shell material	Black plastic

Details Images

A4126 Series:

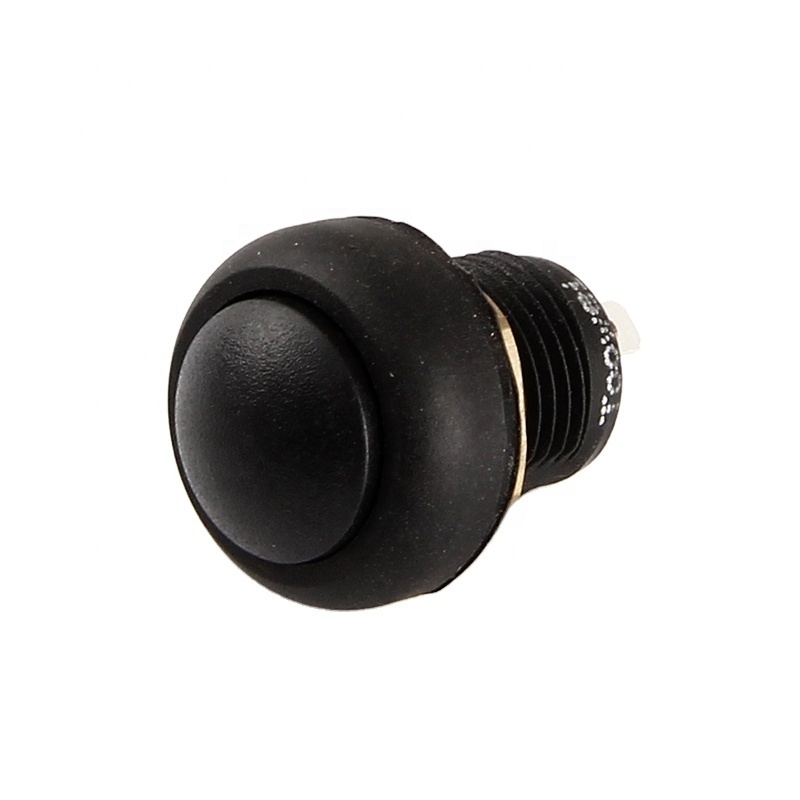

12mm installation size, 1 # Button form, black button color

Without light, Soldering Terminal, Black plastic material for shell

Four button shapes option

Two Terminal form option

Product Paramenters

Technical Parameter

1. Operating force ≤6Nf, best range is 5Nf~6Nf, Maximum endurance 5kgf
2. Contact resistance ≤50m Ω
3. Rated current 3A, rated voltage 250VAC
4. Insulation resistance ≥100m Ω/min
5. Withstand voltage: AC 1000V(50~60hz)/min
6. Solderability: soldering iron 340°±5°/1-2s
7. Solder resistance: soldering iron 340°±5°/3-5s
8. Durability : Electrical life 50000 times, Mechanical life 100000 times
9. Protection degree: IP67
10. Base Material: Dupont Nylon PA66+20% glass fiber
11. Installation size: 12mm
12. Self-locking, momentary
