1.Digital stable signal
:100% No interference, camera signal will stay smooth
2.IP67 waterproof:
The highest waterproof level completely makes it work well under damp environment
3.High resolution:
HD recording resolution offer the best viewing experience to you
4.Automatic recording
: When the car is started, the recorder automatically starts up and turns on the recording
5.Loop recording: When memory card fills up,it can automatically record over previous video
6.G-sensor
: Automatically turn on and record when the engine starts. G-sensor data protection automatically senses a crash and saves the video files
- Product Details
- {{item.text}}
Quick Details
-
Function:
-
bluetooth, Waterproof, NIGHT VISION, FULL COLOR, park MODE, Loop recording
-
Screen Size:
-
10.36"
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZX/OEM
-
Model Number:
-
DSMP5
-
Product Name:
-
4K 2.5D Touch Monitor System
-
Language:
-
Chinese/English/support all language
-
Video Standard:
-
PAL/NTSC
-
Night vision:
-
Top Starlight Night Vision
-
Application:
-
Bus, Truck, RV,Harvester,Engineering vehicle,etc
-
Waterproof:
-
IP67/IP68/IP69K
-
Video Compression:
-
H.264/H.265
-
Screen:
-
7/10.1/10.36 Inch Touch Screen
-
Storage:
-
32G-128G TF card
Quick Details
-
Car Fitment:
-
Universal
-
Angle:
-
120°-170°
-
Resolution:
-
4K
-
Function:
-
bluetooth, Waterproof, NIGHT VISION, FULL COLOR, park MODE, Loop recording
-
Screen Size:
-
10.36"
-
Working Temperature Range:
-
-20 - 70 ℃
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
ZX/OEM
-
Model Number:
-
DSMP5
-
Product Name:
-
4K 2.5D Touch Monitor System
-
Language:
-
Chinese/English/support all language
-
Video Standard:
-
PAL/NTSC
-
Night vision:
-
Top Starlight Night Vision
-
Application:
-
Bus, Truck, RV,Harvester,Engineering vehicle,etc
-
Waterproof:
-
IP67/IP68/IP69K
-
Video Compression:
-
H.264/H.265
-
Screen:
-
7/10.1/10.36 Inch Touch Screen
-
Storage:
-
32G-128G TF card
|
Build-in DVR Monitor Specification
|
|
|
|
Model
|

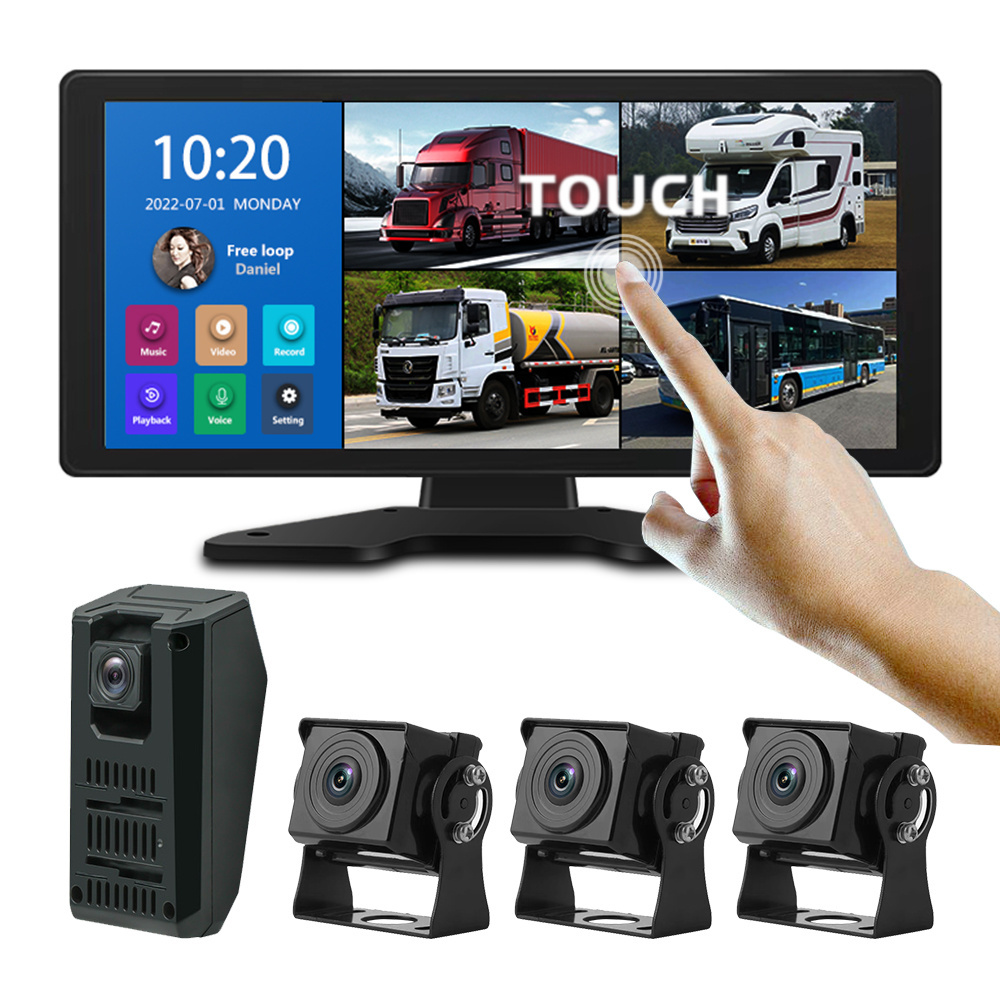

7/10.1/10.36inch 4K 2.5D Touch Monitor System
|
|
|
Solution
|
Quanzhi
|
|
|
Video Compression
|
H.264/H.265
|
|
|
Video Input
|
4ch AHD 1080P /1080N / 720P/720N input
|
|
|
|
4ch CVBS input
|
|
|
|
Compatible with CVBS and AHD signals
|
|
|
|
Compatible with PAL and NTSC systems
|
|
|
Video Output
|
40pin\50pin(TTL\LVDS )interface , 1024 * 600 resolution
|
|
|
Output Resolution
|
1920*1080, 1280*720, 1024*768, 800*600
|
|
|
Recording Resolution
|
1920*1080
|
|
|
Storage
|
32G-128G TF card
|
|
|
Display Mode
|
12 different display modes , support full screen mode of each channel
|
|
|
Boot Screen
|
H, Quad, 3 split mode, dual mode , power –off memory are optional
|
|
|
Record Mode
|
H, Quad, 3 split mode, Dual mode(default mode : QAUD);
|
|
|
Recording Quality
|
4K Ultra HD, 2K HD, 1080P Standard, 720P Ordinary are adjustable
|
|
|
Video Mode
|
Automatic record mode, delay-off 24h record mode
|
|
|
Video Playback
|
Online playback or playback on computer ( Use USB to back the files or use professional player )
|
|
|
Power Management
|
Adaptive wide voltage input, reverse short circuit / low voltage / high voltage protection , etc.
|
|
|
Working Voltage
|
DC 9V-36V
|
|
|
Power Consumption
|
<7W( doesn't include 4pcs cameras )
|
|
|
Working Temperature
|
-30°C~+70°C
|
|
|
Operation Mode
|
Button Key/touch (optional)
|
|
|
Language
|
English / German / French / Spanish / Italian / Portuguese / Traditional Chinese / Simplified Chinese/ Japanese
|
|
Product Description
Easy installtion
1. Connect the camera external power cable to the reverse light. (DC12V - 36V, Red lear to positive, black lead to ground)
2. Connect the external power cable to the camera and install the camera, then route the excess cable
3. Now when you put your car in reverse gear, the camera will automatically turn on
Detailed Functions
1.Full real-time display , videos from 4pcs cameras can be displayed on a screen
2.Support mixed input of AHD1080P/N, AHD 720P/N, CVBS
3.Compatible with NTSC/PAL system
4.High quality resolution 1920x1080P ( include video input, recording resolution )
5.4ch cameras can record and store videos simultaneously
6.Support video display mode modification , such as H , QUAD, 3 split mode , dual split mode , etc.
7.Support 4chs synchronous online video playback, pause, fast forward, fast back and other operations are available
8.When the storage capacity is full, videos will be overwritten automatically
9.Support video files locking function, and locked files won't be overwritten and deleted
10.As for each video source , brightness, contrast, saturation, color and sharpness can be adjusted independently
11.Independent adjustment of left and right mirror, up and down / 90 degree / 270 degree rotation for each channel .
12.Support open or close the overlay display information, such as time, date, channel character, etc.
13.Support IR remote controller operation
14.With automatic trigger function, reversing light , high beam, brake light , etc. correspond to some operations.
15.Real-time video storage technology, even if the power is off suddenly, the video files won't be lost
16.Independent setting and adjustment of auxiliary line , when encounters barriers, the driver can adjust the auxiliary line based on the vehicle width, to make a decision whether the car can pass the barriers successfully .
17.As for video output, zoom display of top, bottom, left and right margins can be adjusted , to ensure that images can be displayed totally.
18.Power-off memory function, if the power is off suddenly, the last setting screen will be displayed when the power restores.
