Quick Details
-
Brand Name:
-
BONENS
-
Model Number:
-
RS25
-
Max. Current:
-
0.25A
-
Mechanical Life:
-
10000
-
Certification:
-
3C
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
30V
-
Place of Origin:
-
Sichuan, China
-
Brand Name:
-
BONENS
-
Model Number:
-
RS25
-
Max. Current:
-
0.25A
-
Mechanical Life:
-
10000
-
Certification:
-
3C
Product Description

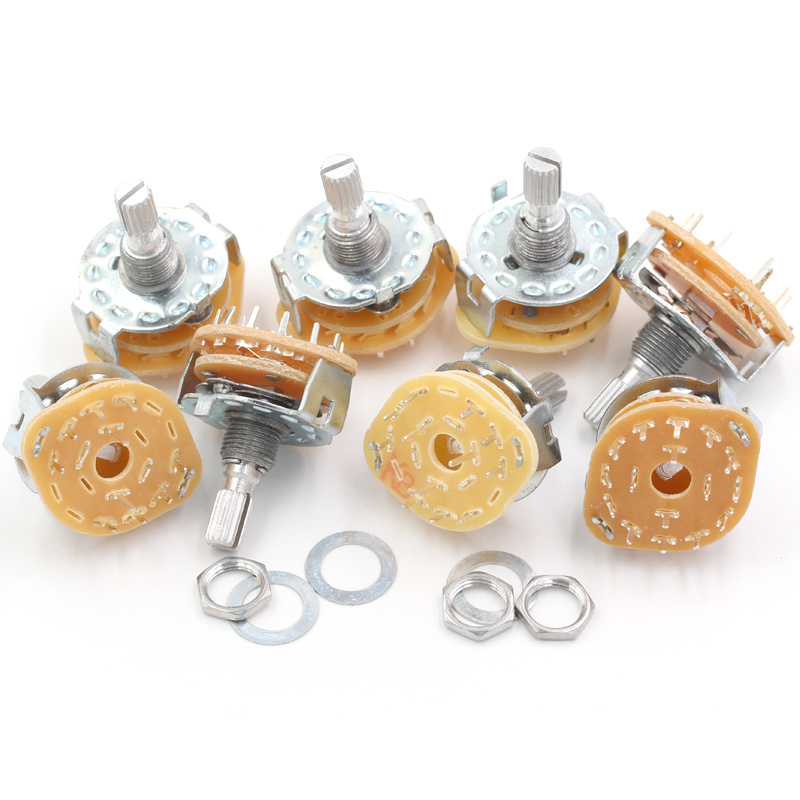

RS25 band switch gear:
One knife: 1X1 1X2 1X3 1X4 1X5 1X6 1X7 1X8/ 1X9 1X10 1X11 1X12 2X2 2X3 2X4 2X5 2X6
Three cuts: 3X2/3X3/3X4
Four knives: 4X2/4X3
Shaft diameter: 6mm
Shaft length: 10mm/15mm/20mm
Pin: Down pin/Up pin (with pin/terminal pin)
RS25 band gear parameters
1. Electrical Characteristic:
1.1 Rated Power: AC 125V 0.3A/AC 250V 06A
1.2 Insulation Resistance: More than 100MΩ at DC500V
1.3 Withstand Voltage: For 1 minute at: 500V
1.4 Comtact Resistance: Less than 20mΩ
2. Mechanical Characteristics
2.1 Rotation Angle:/
2.2 Rotation Torque: 3kgf.cm max
Pull-Push Strength of 3 axes: 5Kgf.cm
2.4 Rotational Stop-End Torque: 5kgf.cm
2.5 Solder To Soldering Heat: 260±5°C at 3±1 seconds
2.6 Use temperature range: (Used Temperature Range): -10C~70°C
2.7 Switch Action: 1±0.5kgf.cm
3 Durability (Durabillity)
3.1 Rotation Life: 10,000 Cycles Min
RS25 band switch description:
RS25 band gear switches can be customized according to customer requirements, involving a variety of sizes, the smallest disc diameter is 12mm, and can be connected in series in multiple layers. RS25 band switch can be widely used in industrial control and small household appliance industry, reliable life, high-quality feeling, good sealing, perfect for use in various environments.
6mm shaft diameter 18T RS25 2 pole 12 position rotary switch
Products drawing
|
Place of Origin
|
China
|
|
|
sichuan
|
|
Brand Name
|
bonens
|
|
Model Number
|
RS25
|
|
Max. Current
|
DC30V 0.3A
|
|
Max. Voltage
|
500V AC 1 MIN
|
|
Mechanical Life
|
OVER 10000 cycels
|
|
Contact rating
|
DC30V 0.3A
|
|
Initial contact resistance
|
20mΩMax
|
|
Insulation resistance
|
500MΩ min DC500V
|
|
Withstand voltage
|
500V AC 1 MIN
|
|
Life cycle
|
10000 CYCLES
|
