Quick Details
-
Design Printing:
-
Offer Printing
-
Material:
-
PVC
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
liantu
-
Model Number:
-
suc900
-
Thickness:
-
0.13mm / 0.15mm /0.18mm 0.2mm
-
product:
-
cinta aislante electrica high voltage insulation tape 25mmx20meter
-
width:
-
12-25mm
-
length:
-
4-20m
-
temperature:
-
80℃
-
adhesive:
-
rubber pressure sensitive
-
elongation:
-
160%
-
surface:
-
shiny and matt
-
ID core:
-
wound on 32mm 38mm,etc.paper core
-
color:
-
black,yellow,red,blue etc.
-
peel strength:
-
1.8N/10mm
Quick Details
-
Adhesive:
-
Rubber
-
Adhesive Side:
-
Single Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
Offer Printing
-
Material:
-
PVC
-
Feature:
-
Heat-Resistant
-
Use:
-
MASKING
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
liantu
-
Model Number:
-
suc900
-
Thickness:
-
0.13mm / 0.15mm /0.18mm 0.2mm
-
product:
-
cinta aislante electrica high voltage insulation tape 25mmx20meter
-
width:
-
12-25mm
-
length:
-
4-20m
-
temperature:
-
80℃
-
adhesive:
-
rubber pressure sensitive
-
elongation:
-
160%
-
surface:
-
shiny and matt
-
ID core:
-
wound on 32mm 38mm,etc.paper core
-
color:
-
black,yellow,red,blue etc.
-
peel strength:
-
1.8N/10mm
Product Details

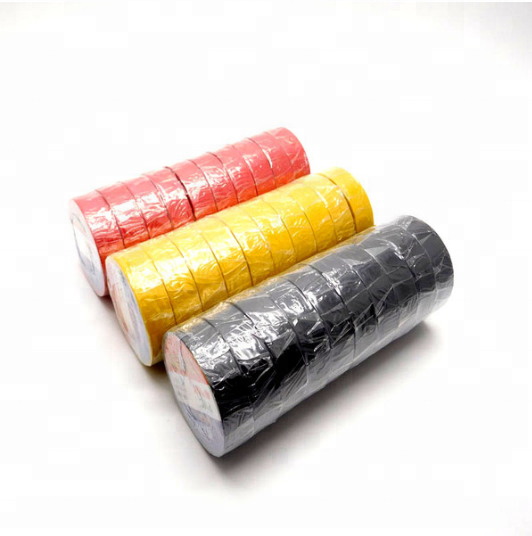

PVC Electrical Insulation Tape
(
productos de belleza pvc isolation tape rolls 18mm x 7.3m
)
It is made from polyvinyl chloride as backing material, and coated with rubber pressure sensitive adhesive.
Based on pure PVC backing rolling as carrier, insulation corrosion resistance, aging resistance and other
characteristics, relatively soft can stretch contraction. Excellent insulation, good viscosity, withstand voltage, high-tensile, burn-resistance, cold resistance etc. It's suitable for automotive wiring, wire/cable wrapped,
Specification:
Backing material: PVC
Adhesive: Rubber pressure-sensitive adhesive
Colors: black, white, red, green, yellow, etc.
Backing material: PVC
Adhesive: Rubber pressure-sensitive adhesive
Colors: black, white, red, green, yellow, etc.
|
material
|
pvc+rubber
|
|
thickness
|
0.11-0.20mm
|
|
width
|
12-25mm
|
|
tensile strength
|
16-28N/cm
|
|
temperature
|
80°C
|
|
percentage elongation
|
160-200%
|
|
peel strength
|
1.8N/10mm
|
|
surface
|
shiny and matt
|
|
ID (inside diameter) core
|
wound on 32mm 38mm etc.paper core
|
Product Feture
|
Peel Strength
|
1.6N/m
|
|
Tensile Strength
|
16-28N/cm
|
|
Elongation
|
180%
|
|
Rated Voltage
|
6.5-8.0KV
|
1.Excellent insulation property,high intensity, easy to tear,strong restoring force, good flame retardant capacity, withstand voltage
2.Significant adhesiveness, weatherproof, resistant climate,alkali-resistant
3.Self-adhesive,acid-resistant, no out of shape
4.Anti aging,withstand voltage,strong retractile
2.Significant adhesiveness, weatherproof, resistant climate,alkali-resistant
3.Self-adhesive,acid-resistant, no out of shape
4.Anti aging,withstand voltage,strong retractile
5.Good insulation with fireproof adhesive,aging resistant, smooth adhesion and so on.
Usage
1.It is widely used for enlacing auto harness, wrapping electric wire/cable
2. It is the main insulation material of automobile, transformer and household electrical apparatus.
3. Wire and cable insulation, colour coding of electrical cables, loom harnessing, stopping off in plating,prevention of electrolytic corrosion, packaging applications, drum and tube sealing.
4.Power distribution equipment, automobile circuit, electrical engineering, motor, capacitor, regulators etc all kinds of motor, electronic parts of the insulation fixed use.
3. Wire and cable insulation, colour coding of electrical cables, loom harnessing, stopping off in plating,prevention of electrolytic corrosion, packaging applications, drum and tube sealing.
4.Power distribution equipment, automobile circuit, electrical engineering, motor, capacitor, regulators etc all kinds of motor, electronic parts of the insulation fixed use.
Product show
Product packaging
• each roll wrapped individually, for small roll, 10 rolls a bunch, 200-500 rolls in a carton; for big rolls, 2-10rolls a carton.
• Or as customer's requirement
• Or as customer's requirement
Our Company
• OEM is available, as professional manufacturer, we can produce according to the customers' sample or requirement.
• All the packings are free of charge, based on at least one 20'ft, including paper label, paper core and carton design.
• We offer free samples, with shipping and taxes paid by the buyer.
