Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Resistance tolerance:
-
+10%, -5%
-
Thermocouple:
-
K or J can be attached
-
Material:
-
SS304 / SS316/SS321 / Nicoloy800 etc.
-
Application:
-
Industry Heating Process
-
Tube Diameter:
-
3mm-30mm
-
Insulation Material:
-
High purity mgo powder
-
Heating wire:
-
NiCr
-
Normal wire length:
-
500mm or Customized
-
Lead way:
-
inside or external
Quick Details
-
Type:
-
Water Heater
-
Power Source:
-
Electric
-
Voltage:
-
12V,24V,120V,etc
-
Place of Origin:
-
Jiangsu, China
-
Resistance tolerance:
-
+10%, -5%
-
Thermocouple:
-
K or J can be attached
-
Material:
-
SS304 / SS316/SS321 / Nicoloy800 etc.
-
Application:
-
Industry Heating Process
-
Tube Diameter:
-
3mm-30mm
-
Insulation Material:
-
High purity mgo powder
-
Heating wire:
-
NiCr
-
Normal wire length:
-
500mm or Customized
-
Lead way:
-
inside or external
MICC Factory Direct Supplied 12 -480v Electric Heating Element Cartridge Heater solar water heater
Description of Electric Cartridge Heaters
Electric heater cartridge is a piece of equipment, made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr2080),High temperature leads, seamless stainless steel sheath(304,321,316,800,840). usually in tube form,
that is used in heating applications by way of insertion into metal blocks via a series of drilled holes. Cartridge heaters are manufactured in two basic forms - high density and low density.
High density cartridge heaters are used to heat plastic injection moulds, dies, platens and so forth, whereas low density cartridge heaters are more suitable for packing machinery, heat sealing, labelling machines and hot stamping applications.
Application for Electric Cartridge Heaters
· Injection moulding - Internal heating of nozzles
· Hot runner systems - Heating of manifolds
· Packaging industry - Heating of cutting bars
· Packaging industry - Heating of hot stamps
· Laboratories - Heating of analytical equipment
· Medical: Dialysis, Sterilization, Blood Analyzer, Nebulizer, Blood/Fluid Warmer, Temperature Therapy
· Telecommunications: Deicing, Enclosure Heater
· Transportation: Oil/Block Heater, Aircraft Coffee Pot Heaters,
· Food Service: Steamers, Dish Washers,
· Industrial: Packaging Equipment, Hole Punches, Hot Stamp.
Technical data for Electric Cartridge Heaters
|
Industrial heater |
Immersion cartridge water heater with thermocouple |
|
Resistance heating wire |
NiCr 80/20 wire |
|
Sheath |
stainless steel 304,321,316, Incoloy 800, Incoloy 840 |
|
Maximum temperature |
800 degree Celsius |
|
Wattage Tolerance |
+5%, -10% |
|
Resistance tolerance |
+10%, -5% |
|
Voltages available |
380V,240V, 220V,110V,36V,24V or 12V |
|
Length tolerance |
±1 mm |
|
Diameter tolerance |
-0.02mm |
|
Standard Cold Zone |
5-10mm |
|
Delivery time |
7-10 working days |
|
Insulation resistance (cold) |
≥ 500 MΩ |
|
Maximum leakage current (cold) |
≤ 0.5 mA |
|
Thermocouple Location |
type J |
|
type K
|
|

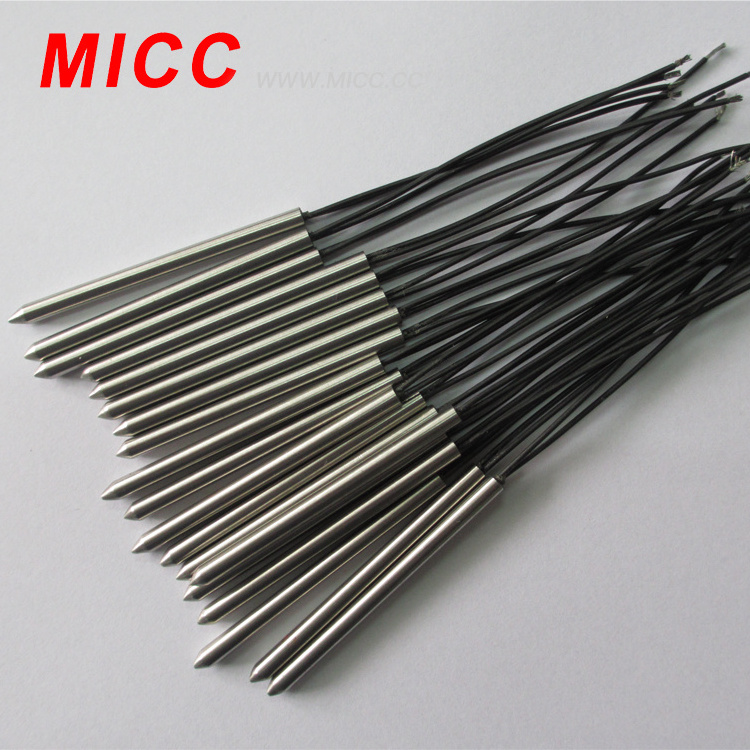

Products Show For Electric Cartridge Heaters
