Quick Details
-
Vibrating Amplitude:
-
0.3-0.6mm
-
Length of Flexible Shaft:
-
0.5M
-
Voltage:
-
220V
-
Weight:
-
200 kg
-
Dimension(L*W*H):
-
80x80x60CM
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
Small Experimental Test Platform Concrete Vibration Table
-
Certification:
-
none
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
OBRK
-
Frequency:
-
2860 time/m
-
Vibrating Amplitude:
-
0.3-0.6mm
-
Length of Flexible Shaft:
-
0.5M
-
Voltage:
-
220V
-
Weight:
-
200 kg
-
Dimension(L*W*H):
-
80x80x60CM
-
After-sales Service Provided:
-
Overseas service center available
-
Name:
-
Small Experimental Test Platform Concrete Vibration Table
-
Certification:
-
none

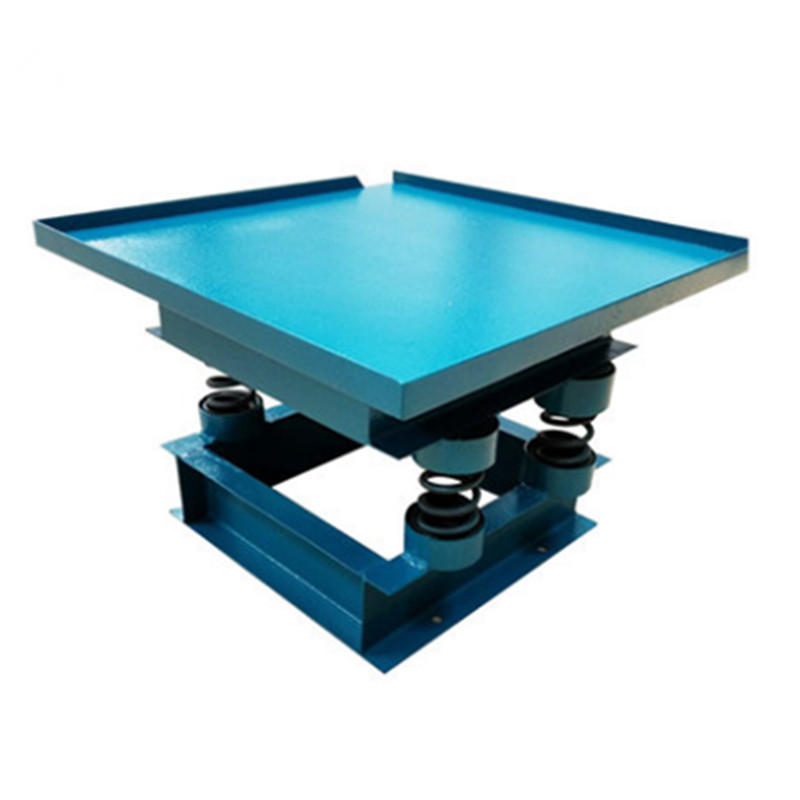

Small Experimental Test Platform Concrete Vibration Table
We assure high quality for each part of Concrete Vibration Table
| Items | Type A:50x50mm | Type A:80x80mm | Type A:1000x1000mm |
| Table size | 500x500mm | 800x800mm | 1000x1000mm |
| vibration frequency | 2860 time/m | 2860 time/m | 2860 time/m |
| amplitude | 0.3-0.6mm | 0.3-0.6mm | 0.3-0.6mm |
| Vibrator power | 0.55Kw | 1.5Kw | 1.5Kw |
| Maximum load | 100Kg | 200Kg | 200Kg |
| Voltage | 220V/380V choice | 220V/380V choice | 220V/380V choice |
We manufacture a complete line of vibrating table. We manufacture Vibrating machine for concrete testing using high quality grade. Vibrating Table manufactured by us generally used for compacting concrete cubes and cylinders. We also provide Vibrating Tables of table top size 50 cm x 50 cm as well as 100 cm x100 cm on special demands to our prestigious clients.
It is used for molding of test sample of concrete and mortar in the testing laboratory. Electric vibration table is used to compact the concrete specimens by vibrating method in the laboratory, field test and so on. It has the advantages such as high production efficiency, good vibration efficiency and compaction performance, stable quality, cramped construction, low noise, easy to operate and convenient to maintain and repair.
