Quick Details
-
Signal Output:
-
Yes
-
Time Delay:
-
0,3,6,9s
-
Lock Size:
-
205Lx35Wx40H(mm)
-
Strike Size:
-
90Lx25Wx2H(mm)
-
Input Voltage:
-
DC12V±10%
-
Working Current:
-
110mA
-
Weight:
-
0.72kgs
-
Security Type:
-
Power off to unlock
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Vians
-
Item name:
-
Automatic Electric Bolt Lock
-
Signal Output:
-
Yes
-
Time Delay:
-
0,3,6,9s
-
Lock Size:
-
205Lx35Wx40H(mm)
-
Strike Size:
-
90Lx25Wx2H(mm)
-
Input Voltage:
-
DC12V±10%
-
Working Current:
-
110mA
-
Weight:
-
0.72kgs
-
Security Type:
-
Power off to unlock
Specification
|
Face Plate Dimensions
|
205L*35W*40H(mm)
|
|
Strike Plate Dimensions
|
90L*25W*2H(mm)
|
|
Working Current
|
110mA
|
|
Delay Timer
|
0,3,6,9s
|
|
Signal output
|
Dry contact NC,COM
|
|
Input voltage
|
DC12V±10%
|
|
Suitable for
|
Wooden/Glass/Metal/Fireproof door
|
|
Weight
|
0.72kg
|

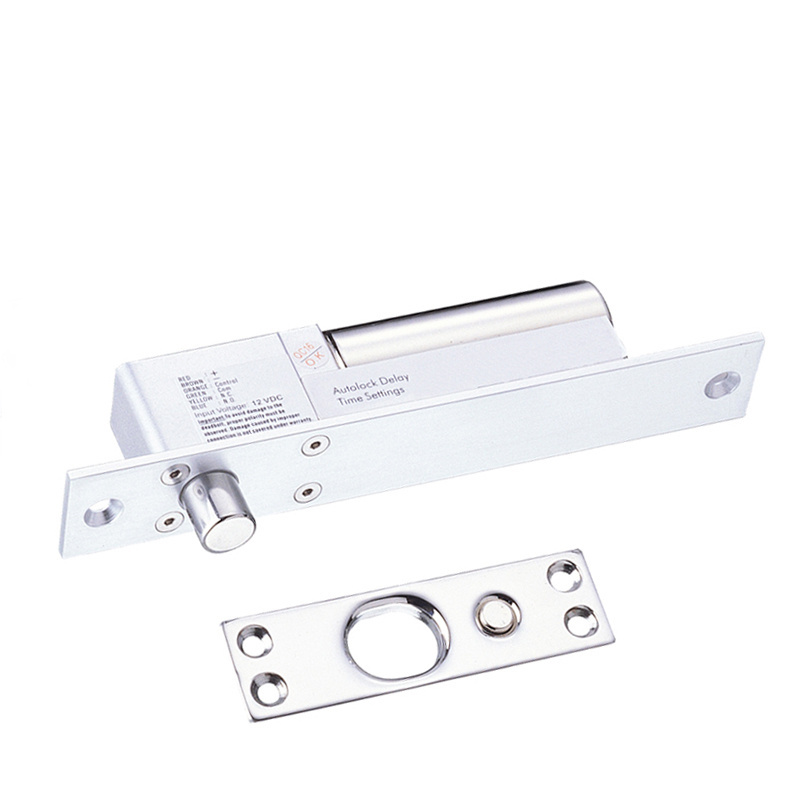

Product Description
Electric Bolt lock is kind of electric control locks, it works by means of extending or retracting the lock bolt with electric current. The VIANS Electric Bolt lock use the microprocessor chip to control electric circuit, so it decreases the power consumption and really has the ultralow temperature function. After 500000 times of test, we can assure our locks are more stable, more environmentally friendly and durable. Electric Bolt lock is designed mainly for glass door, wooden door and mental door, it is suitable for bidirectional door and sliding door, becomes the best choice of access control management.
Feature
1.Design without Mechanical Failure
2.Low Temperature, safe & Durable.
3.Low Power, Environmental Protection.
4.Long Life with 500000 cycles.
5.MOV Provides Reverse Current Protection.
6.Special photoelectricity control,three steps current application.
7.Superior Strength Aluminium Alloy,Solid Stainless Steel Bolt.
8.Working with cylinder cannot be copied,do increase security.
9.The humanized design of Led helps to indicate the working status of lock.
10.The applying of kirsite and Stainless Steel prevent the lock from high temperature,corrosion or damage.
Package & Delivery
Certifications
Company Profie
FAQ
Q:Are you a trading company or a manufacturer?
A:
We are a manufacturer in Shenzhen,Guangdong, China expertised in smart lock for over 13 years.
Q: Can I get a catalogue of your door lock?
A: Yes. Please send us a message or request in the form below.
We will e-mail our comprehensive brochure in PDF to you very soon.
We will e-mail our comprehensive brochure in PDF to you very soon.
Q: Can I have our own logo on product and packing?
A: Yes. We can imprint or laser the logo on product, and can print/sticker the logo on packing as well.
Q:When is your delivery date?
A: The delivery time is about 3-5 days after receiving the payment.
Q: What kind of transportation will you choose to dilivery the goods?
A: We support various transportation like post, express, by air or by sea.
