Quick Details
-
WIFI:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SRAN
-
Model Number:
-
K2 USB017-hei
-
Product name:
-
US home usb c socket
-
Size:
-
72*118mm
-
Product certifications:
-
CE ROHS EMC FCC UKCA
-
Panel Material:
-
Stainless steel
-
Other Material:
-
Plastic/Tempered glass panel/Aluminum alloy/Pc fireproof material/PC
-
Color:
-
Sliver Black Gray White Custom Blue Red Yellow Green Orange
-
Function:
-
Power charging/Easy installation/Protection/Qc2.0
-
Usage:
-
Cell phone/Household electricalappliances/Power bank/Electric tool
-
Plugs type:
-
Cn/EU/Uk/Us/Universal
-
Protection:
-
Overcurrent/Overvoltage/Over-charging/Ovp/Otp/Olp
Quick Details
-
Rated Voltage:
-
90V-110V-220V-240V-250V
-
Rated Current:
-
15A
-
Application:
-
Residential / General-Purpose/Conference room/Hospital/Commercial
-
WIFI:
-
NO
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
SRAN
-
Model Number:
-
K2 USB017-hei
-
Product name:
-
US home usb c socket
-
Size:
-
72*118mm
-
Product certifications:
-
CE ROHS EMC FCC UKCA
-
Panel Material:
-
Stainless steel
-
Other Material:
-
Plastic/Tempered glass panel/Aluminum alloy/Pc fireproof material/PC
-
Color:
-
Sliver Black Gray White Custom Blue Red Yellow Green Orange
-
Function:
-
Power charging/Easy installation/Protection/Qc2.0
-
Usage:
-
Cell phone/Household electricalappliances/Power bank/Electric tool
-
Plugs type:
-
Cn/EU/Uk/Us/Universal
-
Protection:
-
Overcurrent/Overvoltage/Over-charging/Ovp/Otp/Olp
Product Description

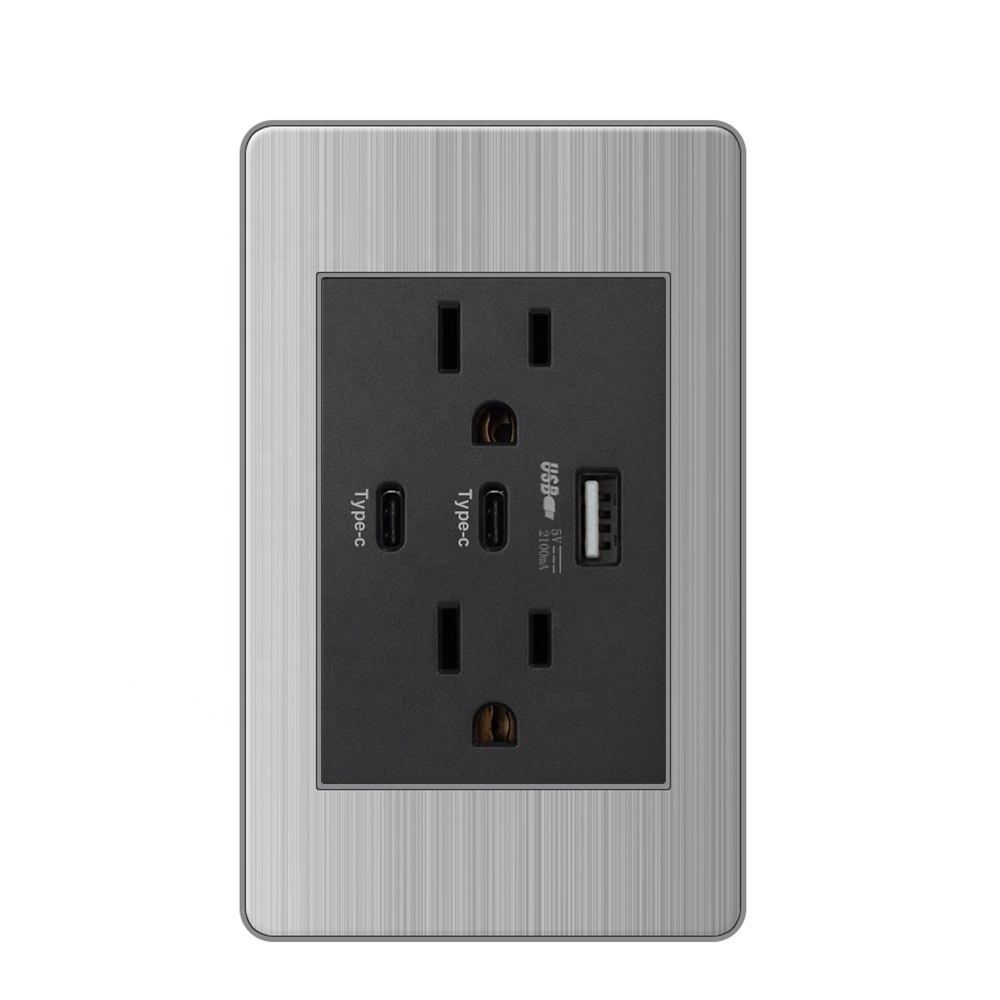

Socket with usb and type c plug US home switch charger power socket with usb port
SRAN K2
Stainless steel
series Model：
K2 USB017
US standard 86mm*86mm
Stainless steel
panel 15A Socket with Usb A+2C 5V2.1A
|
Series product features:
|
|
|
|
|
||||
|
1、
Stainless steel panel 118*72mm with iron plate.Global socket function module combination.Suitable for 118 mounting box.
|
|
|
|
|
||||
|
2、K series panel size: 118mm*72mm(Single)/ 120mm*120mm(Double)/OEM/ODM
|
|
|
|
|
||||
|
3、K series panel material:Tempered glass/PC/Aluminum alloy/Acrylic/Stainless steel/OEM
|
|
|
|
|
||||
|
4、
K series finished product composition: Phosphor copper binding post, Switch silver contact, Flame retardant plastic.1/3+1/3+1/3 or 1/2+1/2 or 1/2+1/3+1/6 any combination of functional modules
|
|
|
|
|
||||
|
5、Colour：White/Black/Gold/Gray and OEM
|
|
|
|
|
||||
|
6、Installation：American installation size, the screw hole distance is 85mm.
|
|
|
|
|
||||
|
7、Series Module Features：Touch siwtch,Wifi switch,1/2/3/4 gang 1/2 way switch,20A/45A industrial grade water heater high power switch switch,Doorbell Momentary reset switch,TV/TEl/Rj45/Sat TV socket,UK 3pin socket,Universal 2pin/3pin/5pin/6pin socket,15A/20A Us and Thai socket,45A socket,Usb socket,Sound and light control socket,Fan and Dimming switch,Plug-in card to take power,human body induction,foot light switch,Do not disturb,Touch delay switch,Blank plate and OEM
|
|
|
|
|
||||
|
Technical Parameters:
|
|
|
|
|
||||
|
1、Input:AC ~250V(50/60HZ),Other parameters refer to different functional products.
|
|
|
|
|
||||
|
2、Flame retardant：Glow wire 750 degrees.
|
|
|
|
|
||||
|
3、Rated Power：Power Socket output 15A/20A 250V，USB output DC 5V 2100ma.
|
|
|
|
|
||||
|
4、Size standard：US standards.
|
|
|
|
|
||||
|
5、Wiring：Neutral, Live, Standard ground.
|
|
|
|
|
||||
|
6、OEM：Panel material, color, logo, packaging,circuit board,Certification，Mold
|
|
|
|
|
||||
|
7、USB port supports charging devices：DC 5V device; Apple phone; Android phone
|
|
|
|
|
||||
