voltage:12V 20A / 24V 10AOperating temperature: -25°-80°Waterproof rating:IP65 Installation Guide:Total power will go to 600w at
12V, 1200W at 24V and the maximum current is 60A.The maximum output current of groud 1 & 2 is 30A, the maximum output current of
ground 3-8 is 20A. The recommended connection method is to decrease the current gradually from groud 1 to 8 groud.Make sure all
the lamps are connectly before connecting the power cable.Guideline for connecting the red, yellow and white control cables:
1.The red cable connects the master switch power cable to the ACC. If you want to light up the LED lamps before the car start-up,
please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
please connect the recommended because the higher the power is, the more the power of the battery will be consumed.
2. The yellow cable connects the width lamp to the master switch panel.3. The white cable is the panel light brightness control cable. It can
controls 3 brightness levels by each switching. You can disconnect the white cable in order to have the most brightness swicth

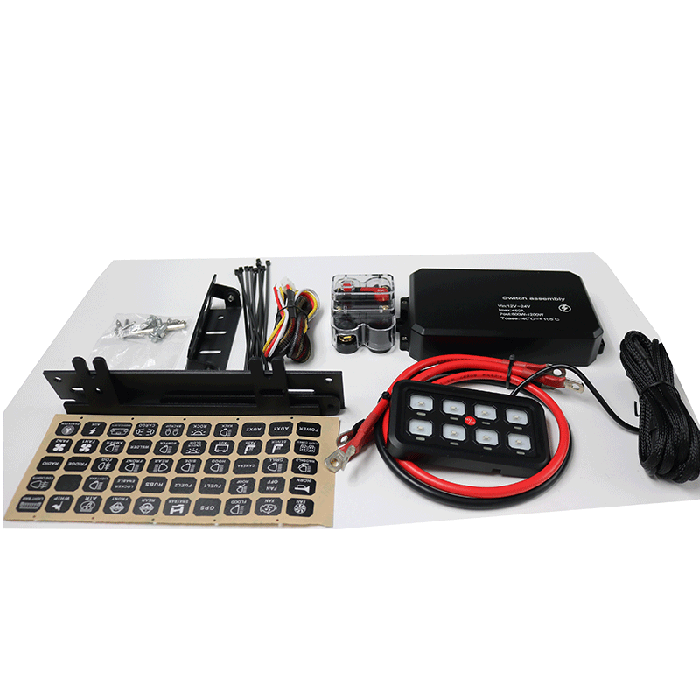

panel if require.Package Included:1 x 8 Gang switch Panel Screen1 x Circuit control Box1 x Sheet of 50 Self-Adhesive Labels3 x
Mounting Brackets10 x Zip TiesVoltage Protection BreakerWiring Harness and Screw Sets
controls 3 brightness levels by each switching. You can disconnect the white cable in order to have the most brightness swicth
panel if require.Package Included:1 x 8 Gang switch Panel Screen1 x Circuit control Box1 x Sheet of 50 Self-Adhesive Labels3 x
Mounting Brackets10 x Zip TiesVoltage Protection BreakerWiring Harness and Screw Sets
