Quick Details
-
Brand Name:
-
Brightway
-
Model Number:
-
BW-80/120
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
30kw
-
Cable Length:
-
customized
-
Outlet Size:
-
46#
-
Power:
-
50hz or customized
-
Material:
-
Copper and stainless steel
-
Color:
-
Blue
-
Medium:
-
LO2 LN2 LAr LNG
-
Flow rate:
-
80m3/h
-
Inlet pressure:
-
0.02-0.8Mpa
-
Head:
-
120m
-
Packing:
-
Standard Wooden Case
-
Delivery time:
-
30days
-
Warranty:
-
1 Year
-
Type:
-
Horizontal
Quick Details
-
Application:
-
District Energy, Food and Beverage Industry, Marine, Metal and Equipment Manufacturers
-
Pressure:
-
0.2-8bar
-
Voltage:
-
380v or customized
-
Brand Name:
-
Brightway
-
Model Number:
-
BW-80/120
-
Place of Origin:
-
Zhejiang, China
-
Horsepower:
-
30kw
-
Cable Length:
-
customized
-
Outlet Size:
-
46#
-
Power:
-
50hz or customized
-
Material:
-
Copper and stainless steel
-
Color:
-
Blue
-
Medium:
-
LO2 LN2 LAr LNG
-
Flow rate:
-
80m3/h
-
Inlet pressure:
-
0.02-0.8Mpa
-
Head:
-
120m
-
Packing:
-
Standard Wooden Case
-
Delivery time:
-
30days
-
Warranty:
-
1 Year
-
Type:
-
Horizontal
Product Description

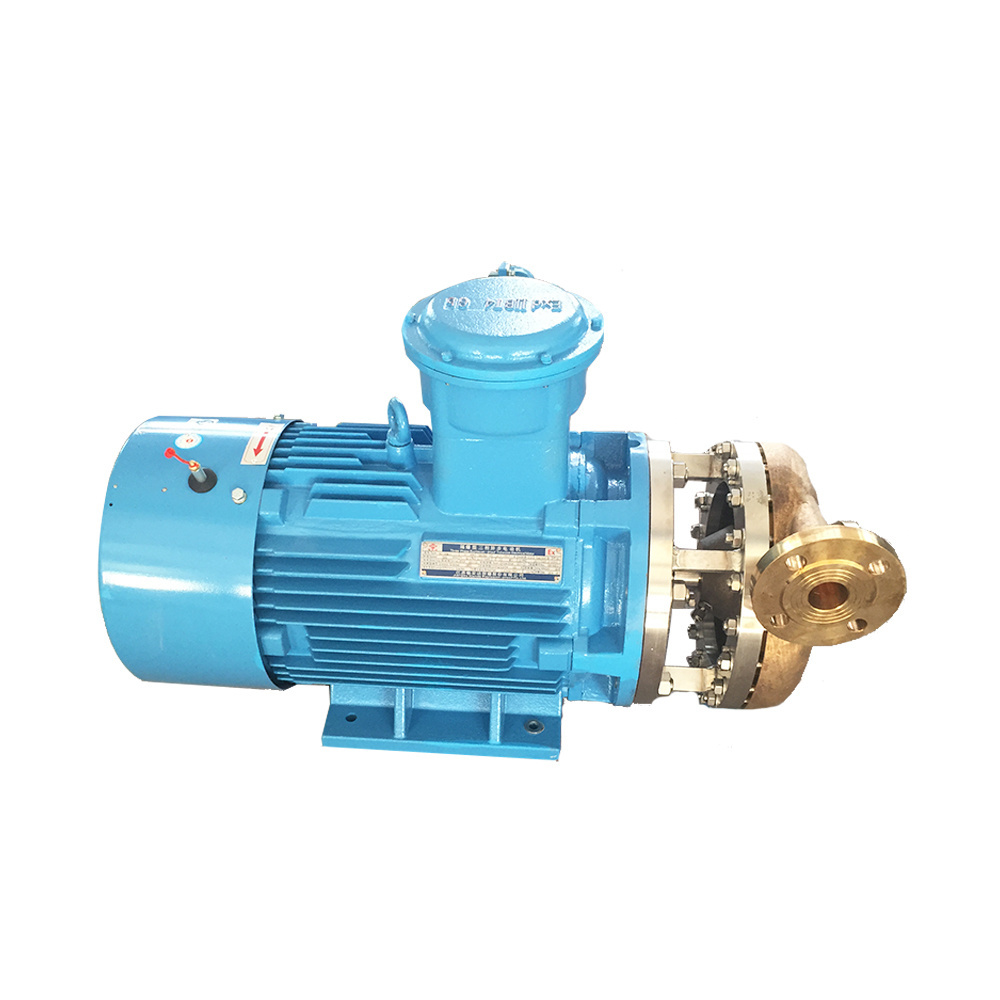

Cryogenic centrifugal pump is used for filling of cryogenic tank,loading and transfer cryogenic liquids.
Suitable Media:LO2 LN2 LAr LNG
Main Technic
al Parameters:Flow:5-200m3/h; Head:10-1000m
Optional Configuration:
Sationary motor/frequency control
Safety valve/Cryogenic stop valve
Liquid outlet pressure interlocking device
Equipment Selection Table:
| Model | Type | Flow m3/h | Inlet Pressure Mpa | Head m |
| BW-24/60 | Horizontal&Centrifugal | 24 | 0.02-0.8 | 60 |
| BW-24/90 | 24 | 90 | ||
| BW-40/90 | 40 | 90 | ||
| BW-80/120 | 80 | 120 | ||
| BW-13/130 | 13 | 130 | ||
| BW-55/260 | 55 | 260 | ||
| BW-30/280 | 30 | 280 | ||
| BW-80/280 | 80 | 280 |
