* Filter new oil
* Bypass filtration of hydraulic lubrication
system, adding new oil and filtering
* Removing moisture from system oil
* Purification of oil in use
- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
380v/50hz(customized)
-
Power:
-
1.1
-
Dimension(L*W*H):
-
720*680*1020mm
-
Weight:
-
90 kg
-
Filtration:
-
3μm
-
Operating temperature:
-
5-80℃
-
Rated pressure:
-
0.6mpa
-
Rated flow rate:
-
150L/min
-
principle:
-
Pressurized filtration
-
style:
-
Cartridge type
-
performance:
-
Precision filtration
Quick Details
-
Flow:
-
25-150L/min
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
henanchaolv
-
Voltage:
-
380v/50hz(customized)
-
Power:
-
1.1
-
Dimension(L*W*H):
-
720*680*1020mm
-
Weight:
-
90 kg
-
Filtration:
-
3μm
-
Operating temperature:
-
5-80℃
-
Rated pressure:
-
0.6mpa
-
Rated flow rate:
-
150L/min
-
principle:
-
Pressurized filtration
-
style:
-
Cartridge type
-
performance:
-
Precision filtration
Products Description

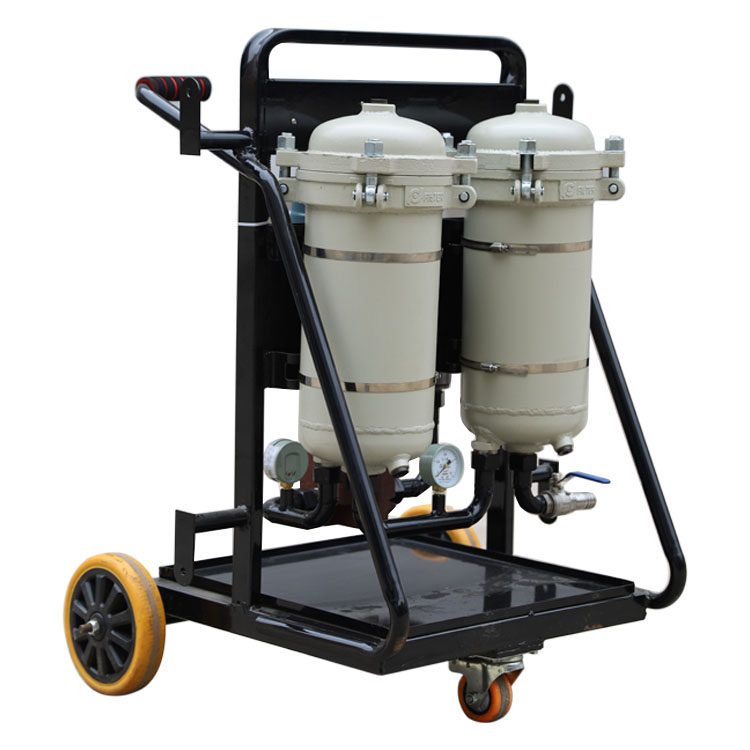

LYC -B series oil purifier
1. This series of oil filters includes a specialized gear pump driven by an electric motor, whichhas the characteristics of low noise, strong self suction ability, and smooth operation.
2. The high-pressure pipeline of this series of oil filters is equipped with an overflow
protection device, which can effectively protect the safety of the hydraulic system.
3. This series of oil filters adopts thermal relay protection to prevent motor damage caused by motor overload.
4. The coarse filter at the suction port of this series of oil filters protects the oil pump and
extends the service life of the main filter.
5. This series of oil filters are equipped with a two-stage fine filter behind the pump, allowing
the oil to quickly reach a high level of cleanliness.
Product
application
Product Specifications
|
LYC-B
|
|
|
|
|
|
|
|
|||||||
|
Model
|
LYC-B25-*/**
|
LYC-B32-*/**
|
LYC-B40-*/**
|
LYC-B50-*/**
|
LYC-B63-*/**
|
LYC-B100-*/**
|
LYC-B150-*/**
|
|||||||
|
Flow rate(L/min)
|
25
|
32
|
40
|
50
|
63
|
100
|
150
|
|||||||
|
Pressure(Mpa)
|
0.6
|
|
|
|
|
|
|
|||||||
|
Pressure loss(Mpa)
|
≤0.02
|
|
|
|
|
|
|
|||||||
|
Coarse filtration accuracy(μm)
|
100
|
|
|
100
|
|
|
|
|||||||
|
First level coarse filter(μm)
|
10、20、40
|
|
|
|
|
|
|
|||||||
|
Second level filter(μm)
|
3,5,10
|
|
|
|
|
|
|
|||||||
|
Alarm differential pressure(Mpa)
|
0.2
|
|
|
|
|
|
|
|||||||
|
Operating temperature(℃)
|
5-80℃
|
|
|
|
|
|
|
|||||||
|
Recommended viscosity(CST)
|
10-160
|
|
|
|
|
|
|
|||||||
|
Voltage
|
AC380V、50HZ
|
|
|
|
|
|
|
|||||||
|
Motor power
|
0.55
|
0.75
|
1.1
|
1.1
|
1.5
|
2.2
|
3.0
|
|||||||
|
Weight(Kg)
|
46
|
78
|
90
|
96
|
102
|
120
|
160
|
|||||||
|
Size(L*B*H)
|
520*350*950
|
|
720*680*1020
|
|
|
720*750*1220
|
|
|||||||
|
Note: *- Filtration accuracy, e.g. 003 is 3 microns **- Filter media, omitted: ordinary hydraulic oil; BH: water-glycol; V:
Phosphate ester hydraulic oil - Explosion-proof type: add F before the model, omitted: ordinary type |
|
|
|
|
|
|
|
|||||||
