Quick Details
-
Model Number:
-
MDHYDS8FA
Quick Details
-
Weight (KG):
-
500
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
minder-hightech
-
Model Number:
-
MDHYDS8FA
Product Description

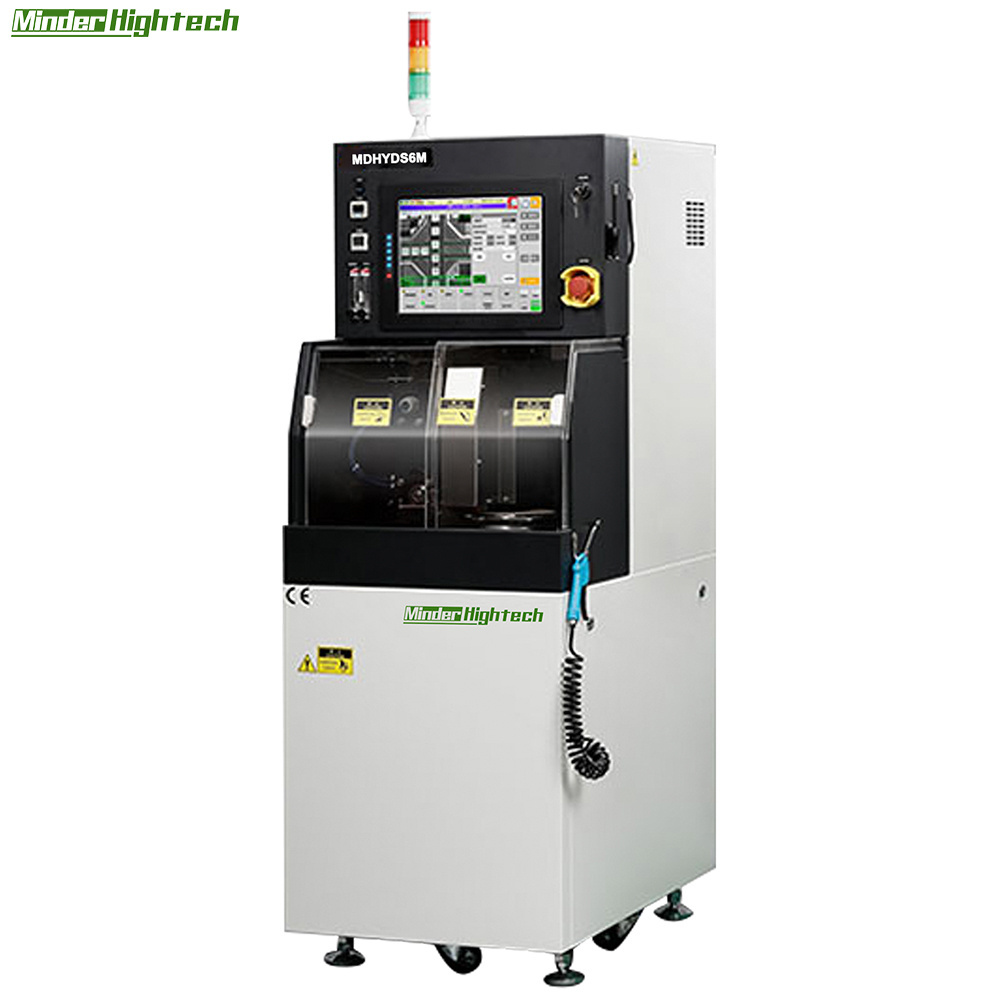

Dicing saw for semiconductor industry
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Features
√ Blade database management
√ Workpiece cutting database management
√ Auto focus function
√ Two-way lifting knife cutting function
√ Compensation function for blade exposure
√ Multiple safety guarantees and alarm functions
√ Workpiece cutting database management
√ Auto focus function
√ Two-way lifting knife cutting function
√ Compensation function for blade exposure
√ Multiple safety guarantees and alarm functions
Applications
IC,Optical,communication,LED,MEMS,Medical,NTC,Quartz,Diode,Triode etc.
Material suitable
Si,GaAsLiNbO3,Al2O3,Ceramic,Glass,Quartz,PCB,EMC etc.
Specification
|
|
|
|
MDHYDS6L
|
MDHYDS6M
|
MDHYDS6H
|
|
Spec
|
dicing size
|
mm
|
ф6”〡□150
|
ф6”〡□150
|
ф6”〡□150
|
|
|
dicing depth
|
mm
|
≤4mm or custom
|
≤4mm or custom
|
≤4mm or custom
|
|
Main spindle
|
rotaty speed
|
minˉ¹
|
3000∽40000
|
10000∽50000
|
10000∽50000
|
|
|
power
|
kW
|
AC,1.25at40000minˉ¹
|
AC,1.5at50000minˉ¹
|
DC,1.5at50000minˉ¹
|
|
X axis
|
stroke
|
mm
|
250
|
250
|
250
|
|
|
speed range
|
mm/s
|
0.1∽400
|
0.1∽400
|
0.1∽500
|
|
Y axis
|
stroke
|
mm
|
170
|
170
|
170
|
|
|
resolution
|
mm
|
0.0001
|
0.0001
|
0.0001
|
|
|
single move accuracy
|
mm
|
≤0.003/5
|
≤0.003/5
|
≤0.002/5
|
|
|
F accuracy
|
mm
|
≤0.005/170
|
≤0.005/170
|
≤0.004/170
|
|
Z axis
|
stroke
|
mm
|
30
|
30
|
30
|
|
|
max blade size:
|
mm
|
ф58
|
ф58
|
ф58
|
|
|
resolution
|
mm
|
0.0001
|
0.0001
|
0.0001
|
|
|
accuracy
|
mm
|
0.001
|
0.001
|
0.001
|
|
R axis
|
rotary range
|
deg
|
380
|
380
|
380
|
|
Basic required
|
power
|
KVA
|
3.0（single phase，AC220V）
|
3.0（single phase，AC220V）
|
3.0（single phase，AC220V）
|
|
|
air
|
Mpa L/min
|
0.5∽0.6max consumption180
|
0.5∽0.6max consumption200
|
0.5∽0.6max consumption200
|
|
|
cutting fluid
|
Mpa L/min
|
0.2∽0.3max consumption3.0
|
0.2∽0.3max consumption3.5
|
0.2∽0.3max consumption3.5
|
|
|
cooling water
|
Mpa L/min
|
0.2∽0.3max consumption1.5
|
0.2∽0.3max consumption1.5
|
0.2∽0.3max consumption1.5
|
|
|
exhaust
|
m³/min
|
1.5
|
1.5
|
1.5
|
|
|
size
|
mm
|
580*910*1650
|
580*910*1650
|
580*910*1650
|
|
|
weight
|
kg
|
500
|
500
|
500
|
|
|
MDHYDS6L
|
MDHYDS6M
|
MDHYDS6H
|
|
Multi plate dicing
|
√
|
√
|
√
|
|
Auto focus
|
√
|
√
|
√
|
|
Auto align
|
*
|
*
|
√
|
|
Shape recognition
|
-
|
-
|
*
|
|
Dicing mark check
|
-
|
*
|
*
|
|
Non contact height test
|
-
|
*
|
√
|
|
Blade broken check
|
-
|
*
|
*
|
|
Dual camera align system
|
-
|
*
|
√
|
