Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Applied material:
-
PE plastic tube film
-
Craft:
-
Hot sealing Cold Cutting
-
Degree of automation:
-
Automatic
Quick Details
-
Machine Type:
-
Bag Forming Machine
-
Bag Type:
-
T-shirt Bag
-
Material:
-
Plastic
-
Place of Origin:
-
Zhejiang, China
-
Applied material:
-
PE plastic tube film
-
Craft:
-
Hot sealing Cold Cutting
-
Degree of automation:
-
Automatic
Name: Hot Sealing Colding Cutting plastic rubbish bag making machine
Descriptions:
Automatic T-shirt Bag Making Machine is suitable for producing HDPE and LDPE plastic . It adopts the servo motor or stepping motor for feeding the tube film in high speed and photocell to track the cutting, punch the "U" shape bag in one tine. And with such features, such as easy operation, high efficiency and high quality finished products.
Features
*Double deck with two sealing bars
*Four unwind stations
*Four Line cutting
*In-line aumatic puncher for t-shirt bag
Features
*Cold Cutting
*Double deckers
*To work in four lines or two lines, depending on bag size
*To work in sinle line if bag with printed color
*Single mark tracking photocell
*Single step motors to pull film
*Microcomputer control
*In-line auto. Puncher included
*High speed to make T-shirt bag and flat bag
SPECIFICATION:
|
MODEL |
SHXJ-B600 |
SHXJ-B700 |
SHXJ-B800 |
SHXJ-B900 |
|||
|
Max. Cutting width (MM): |
500mm |
600mm |
700mm |
800mm |
|||
|
Max. Cutting length (MM): |
1200 (Max.) |
||||||
|
Cutting thickness |
0.01 ~ 0.04 (single layer) |
||||||
|
Cutting speed (cycle/minute): |
40 ~ 150 (stepper motor) 50 ~ 220 (servo motor) |
||||||
|
Back feeding motor |
100 W D.C MOTOR X 4 |
||||||
|
Film pulling motor |
Step motor x 1 |
||||||
|
Power of main motor (KW): |
1.5kw |
1.5kw |
2.2kw |
2.2kw |
|||
|
Control way to main motor |
A.C inverter |
||||||
|
Computer |
Included |
||||||
|
Heater power (KW) |
3kw |
3lw |
4kw |
4kw |
|||
|
Number of working line |
4 lines (small size/natural color) 2 lines (big size/natural color) line (pinted color) |
||||||
|
In-line Auto. Puncher |
Included |
||||||
|
Die-cutter of Puncher |
4 PCS included |
||||||
|
Belt Drving Motor of Puncher |
0.75 KW |
||||||
|
Pneumatic Driver of Puncher |
5 Tons x 2 |
||||||
|
Air Compressor |
Not included |
||||||
|
Weight (KG) |
800kg |
850kg |
900kg |
950kg |
|||
|
Dimension (L x W x H) (M) |
3300*940*1600 |
3300*1040*1600 |
3300*1140*1600 |
3300*1240*1600 |
|||

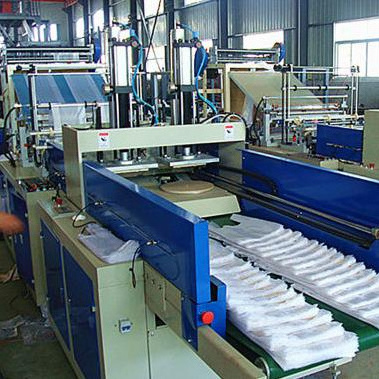

Machine live photos:
