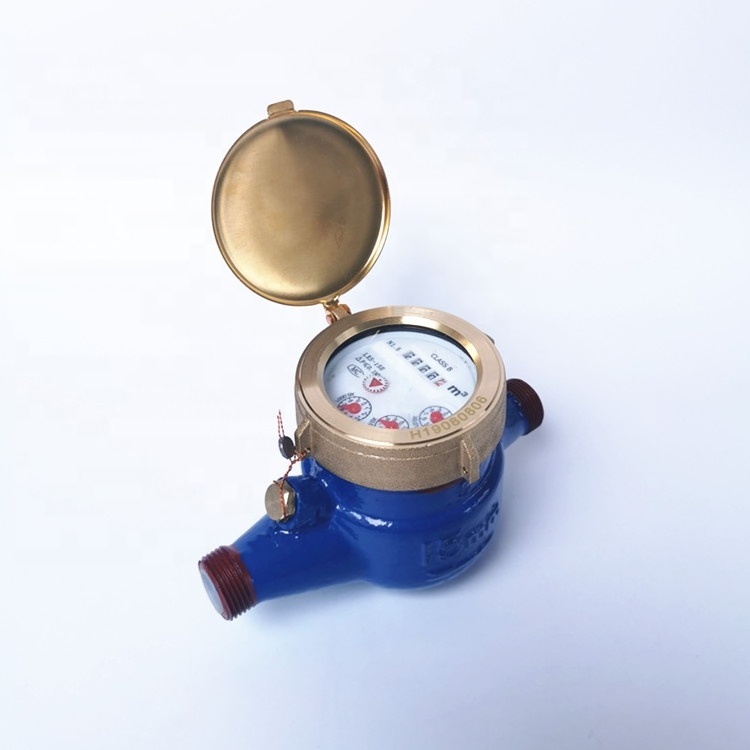

Quick Details
-
Brand Name:
-
JIAJIE
-
Model Number:
-
LXSG-15MM~50MM
-
Certification:
-
ISO9001:2008
-
Standards:
-
ISO4064
-
Temperature:
-
0~50
-
Material:
-
Cast Iron Body
-
Installation:
-
Horizonal
-
Feature:
-
High Accuracy
Quick Details
-
Warranty:
-
1 year
-
Type:
-
Multi-jet meters
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
JIAJIE
-
Model Number:
-
LXSG-15MM~50MM
-
Certification:
-
ISO9001:2008
-
Standards:
-
ISO4064
-
Temperature:
-
0~50
-
Material:
-
Cast Iron Body
-
Installation:
-
Horizonal
-
Feature:
-
High Accuracy
Features:
1.Multi—jet
2.Dry type / Wet type
3.Anti—magnetic, good anti—freezing property
4.The adoption of mechanism with vacuum sealed keeping the reading clear in long term operation
5.Measuring accuracy is up to ISO4064 CLASS B
6.High quality materials, steady & reliable characteristic
3.Anti—magnetic, good anti—freezing property
4.The adoption of mechanism with vacuum sealed keeping the reading clear in long term operation
5.Measuring accuracy is up to ISO4064 CLASS B
6.High quality materials, steady & reliable characteristic
Material:
Body: Iron
Cover: Brass
Connector: Brass
Working Conditions
Cold water temperature≤35℃
Hot water temperature≤90℃
Water pressure≤1.0Mpa / 1.6Mpa
Water pressure≤1.0Mpa / 1.6Mpa
ERROR CURVE
a.at low zone is ± 5％ from Qmin to Qt(not)
b.at high zone is ± 2％ from transitional flow(Qt) to maximum low(Qmax)
|
MAIN TECHNICAL DATA
|
|
|
|
|
|
|
|
|||||||
|
Meter Size
(mm)
|
CLASS
|
Qmax
(m³/h)
|
Qn
(m³/h)
|
Qt
(m³/h)
|
Qmin
(m³/h)
|
Min Reading
|
Max Reading
|
|||||||
|
15
|
B
|
3.125
|
2.5
|
0.05
|
0.03125
|
0.0001
|
99999
|
|||||||
|
20
|
B
|
5
|
4
|
0.08
|
0.05
|
0.0001
|
99999
|
|||||||
|
25
|
B
|
7.875
|
6.3
|
0.126
|
0.07875
|
0.0001
|
99999
|
|||||||
|
32
|
B
|
12.5
|
10
|
0.2
|
0.125
|
0.0001
|
99999
|
|||||||
|
40
|
B
|
20
|
16
|
0.32
|
0.2
|
0.001
|
99999
|
|||||||
|
50
|
B
|
31.25
|
25
|
3.15
|
0.5
|
0.001
|
99999
|
|||||||
|
DIMENSIONS AND WEIGHT
|
|
|
|
|
|
|
|
|||||||
|
Meter size
|
DN
|
15
|
20
|
25
|
32
|
40
|
50
|
|||||||
|
Length
|
L1(mm)
|
165
|
195
|
225
|
230
|
245
|
300
|
|||||||
|
Width
|
B(mm)
|
98
|
98
|
103
|
103
|
125
|
135
|
|||||||
|
Height
|
H(mm)
|
114
|
114
|
114
|
114
|
144
|
155
|
|||||||
|
Connecting thread
|
d
|
R1/2
|
R3/4
|
R1
|
R1-1/4
|
R1-1/2
|
R2
|
|||||||
|
|
D
|
G3/4
|
G1
|
G1-1/4
|
G1-1/2
|
G2
|
G2-1/2
|
|||||||
|
Weight
|
kg
|
1.2
|
1.6
|
2.6
|
3.2
|
4.5
|
7
|
|||||||
