Quick Details
-
Power:
-
16W
-
Dimension(L*W*H):
-
2000*3000*2530mm
-
Weight:
-
100 KG
-
External Size(W*D*H):
-
2000*3000*2530mm
-
HEPA Filters:
-
2000*3000*2530mm
-
Consumption:
-
1500W
-
FFU Nos.:
-
6 pcs
-
Clean Level:
-
ISO 5 (Class 100), Class A
-
Control System:
-
Microprocessor control system
-
Rectangular Tube Material:
-
Aluminium alloy
-
Wall Material:
-
Anti-static dustproof curtain
-
Gross Weight:
-
670Kg
-
Noise:
-
≤75db
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
BIOBASE
-
Voltage:
-
220V
-
Power:
-
16W
-
Dimension(L*W*H):
-
2000*3000*2530mm
-
Weight:
-
100 KG
-
External Size(W*D*H):
-
2000*3000*2530mm
-
HEPA Filters:
-
2000*3000*2530mm
-
Consumption:
-
1500W
-
FFU Nos.:
-
6 pcs
-
Clean Level:
-
ISO 5 (Class 100), Class A
-
Control System:
-
Microprocessor control system
-
Rectangular Tube Material:
-
Aluminium alloy
-
Wall Material:
-
Anti-static dustproof curtain
-
Gross Weight:
-
670Kg
-
Noise:
-
≤75db

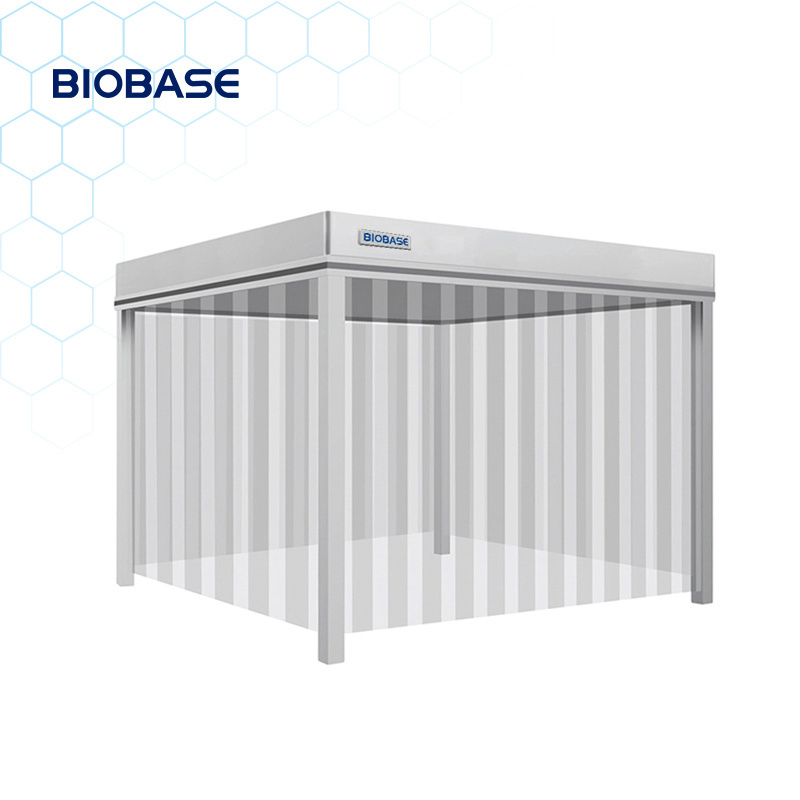

Biobase China Clean Booth Down Flow Booth screen printing cleaning machine washing booth
Products Description
Features:
1. Customized design is welcomed.
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement
(Universal wheel can be installed).
2. It can be used singly or combined.
3. Compared with civil type and fabricated type clean room of hundred clean level, it has low running cost and fast effect and can be easily installed.
4. Modular construction, easy to increase clean level, good expansion and reusable, convenient movement
(Universal wheel can be installed).
|
Model
|
BKCB-1500
|
BKCB-2000
|
|
BKCB-3000
|
BKCB-5000
|
|||||
|
External Size (W*D*H)
|
1500*2000*2530mm
|
2000*3000*2530mm
|
|
3000*4000*2530mm
|
5000*5000*2530mm
|
|||||
|
HEPA Filters
|
99.999% efficiency at 0.3 um
|
|
|
|
|
|||||
|
Consumption
|
800W
|
|
1500W
|
2800W
|
5000W
|
|||||
|
FFU Nos.
|
4 pcs
|
|
6 pcs
|
12 pcs
|
25 pcs
|
|||||
|
Clean Level
|
ISO 5 (Class 100), Class A
|
|
|
|
|
|||||
|
Control System
|
Microprocessor control system
|
|
|
|
|
|||||
|
Rectangular Tube Material
|
Aluminium alloy
|
|
|
|
|
|||||
|
Wall Material
|
Anti-static dustproof curtain
|
|
|
|
|
|||||
|
Blower
|
Built-in centrifugal blower; speed adjustable
|
|
|
|
|
|||||
|
UV Lamp
|
40W*2
|
|
40W*2
|
40W*3
|
40W*5
|
|||||
|
|
Emission of 253.7nanometers, with UV timer
|
|
|
|
|
|||||
|
Illuminating Lamp
|
16W*1
|
|
16W*2
|
16W*3
|
16W*5
|
|||||
|
|
LED Lamp,Illumination :≥500lux
|
|
|
|
|
|||||
|
Air Velocity
|
0.1~0.6m/s, average 0.45m/s
|
|
|
|
|
|||||
|
Noise
|
≤75db
|
|
|
|
|
|||||
|
Power Supply
|
AC220V±10%, 50/60Hz; 110V±10%, 60Hz
|
|
|
|
|
|||||
|
Gross Weight
|
390Kg
|
|
670Kg
|
1100Kg
|
2900Kg
|
|||||
|
Package Size (W*D*H)
|
2110*930*920mm
2280*660*500mm |
|
3080*980*1280mm
3080*660*550mm |
3080*980*1280mm
3080*980*1280mm 4080*660*550mm |
4080*980*1280mm
4080*980*1280mm 4080*980*1280mm 1260*660*1280mm 5080*460*500mm |
|||||
|
Customized design for clean level, size or material is available
|
|
|
|
|
|
|||||
