Quick Details
-
Brand Name:
-
Shiningkey(SK)
-
Model Number:
-
RS2-24D on/off switch
-
Max. Current:
-
16A
-
Mechanical Life:
-
100,000
-
IP level:
-
IP40
-
Name:
-
16A enec rotatory selector rotary dip potentiometer with on/off switch
-
Certification:
-
CQC, RoHS, ENEC
-
Color:
-
Black
-
Type:
-
RS2-24D rotary switch
-
Pins:
-
5 pin rotary switch
-
Operating temperature:
-
T125
-
dielectric resistance:
-
1500V
-
Contact Resistance:
-
≤50mΩ
-
Insulation resistance:
-
≥100mΩ
-
Electronic life:
-
50,000cycles
Quick Details
-
Whether the smart:
-
NO
-
Max. Voltage:
-
250V AC
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Shiningkey(SK)
-
Model Number:
-
RS2-24D on/off switch
-
Max. Current:
-
16A
-
Mechanical Life:
-
100,000
-
IP level:
-
IP40
-
Name:
-
16A enec rotatory selector rotary dip potentiometer with on/off switch
-
Certification:
-
CQC, RoHS, ENEC
-
Color:
-
Black
-
Type:
-
RS2-24D rotary switch
-
Pins:
-
5 pin rotary switch
-
Operating temperature:
-
T125
-
dielectric resistance:
-
1500V
-
Contact Resistance:
-
≤50mΩ
-
Insulation resistance:
-
≥100mΩ
-
Electronic life:
-
50,000cycles

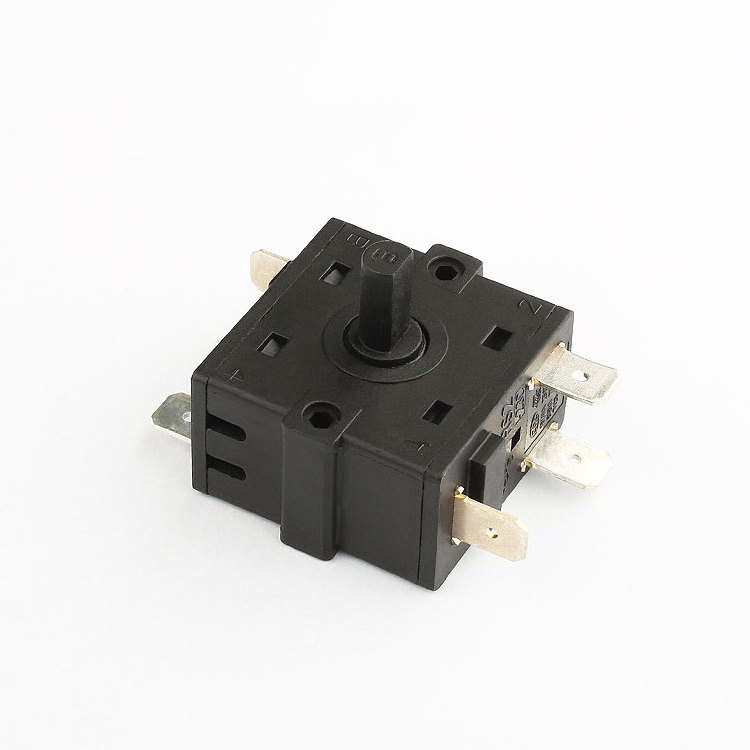

16a 250vac rotary potentiometer with on/off 3 speed rotary switch
Product Description
If you have enough demand, we can customize the switch that meets customer requirements. We have 60 senior engineers, injection molding workshop, 5S production workshop, experimental equipment and perfect development process.
| specification | |
| Max.Rating Current&Voltage(Resistive load) | 6A 250VAC |
| Contact Resistance | ≤50mΩ |
| Insulation Resistance | ≥100MΩ |
| Dielectric Resistance | 1500v |
| Electronic life(cycles) | 10,000 |
| Operating temperature | T125 |
|
6A 250VAC 1E4 T125 |
