Quick Details
-
Lamp Body Material:
-
Aluminum
-
Support Dimmer:
-
Yes by DC12V-24V dimmer
-
Product Weight（kg）:
-
0.15
-
Input Voltage(V):
-
DC12V-24V
-
Lamp Luminous Flux(lm):
-
270
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TMDM-3W-B
-
Product name:
-
COB LED Spotlight
-
Beam Angle:
-
90 Degree
-
LED Chip:
-
Epistar COB led
-
Type:
-
Led Commercial Recessed Spot Light
-
Keyword:
-
Ceiling Spot Downlight
-
Warranty(Years):
-
3
-
Certification:
-
CE RoHS
Quick Details
-
Lamp Luminous Efficiency(lm/w):
-
90
-
Application:
-
Outdoor
-
Design Style:
-
Modern
-
Lamp Body Material:
-
Aluminum
-
Support Dimmer:
-
Yes by DC12V-24V dimmer
-
Product Weight（kg）:
-
0.15
-
Input Voltage(V):
-
DC12V-24V
-
Lamp Luminous Flux(lm):
-
270
-
Working Lifetime(Hour):
-
35000
-
Place of Origin:
-
Guangdong, China
-
Model Number:
-
TMDM-3W-B
-
Product name:
-
COB LED Spotlight
-
Beam Angle:
-
90 Degree
-
LED Chip:
-
Epistar COB led
-
Type:
-
Led Commercial Recessed Spot Light
-
Keyword:
-
Ceiling Spot Downlight
-
Warranty(Years):
-
3
-
Certification:
-
CE RoHS
Products Description

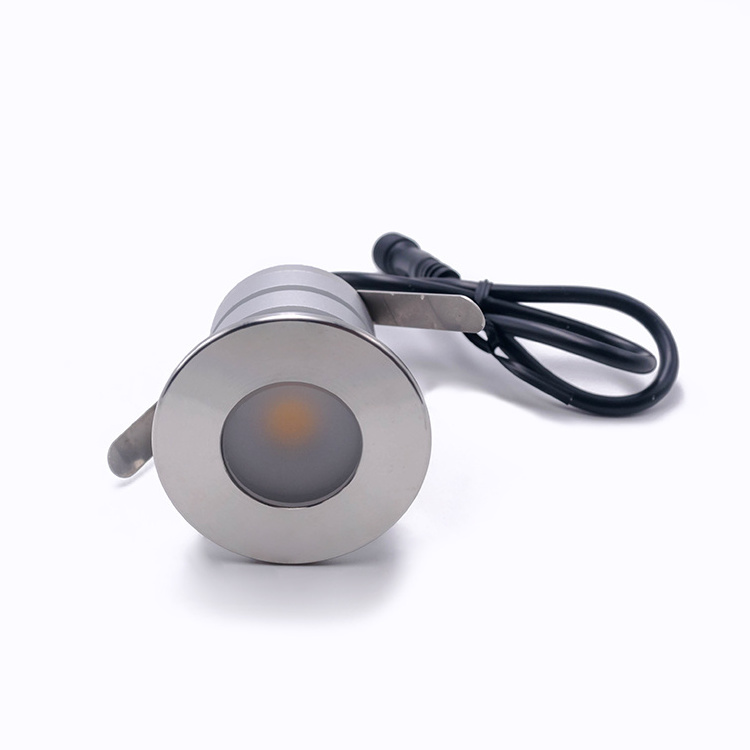

Dia48mm Garden ground spotlight, Epistar COB led 280lm, Input voltage DC12V-24V, Recessed install, is good for Garden lighting, ground lighting, Pathway lighting, wall corner lighting, ect outdoor decoration lighting.
1. Protection class
IP67, external use at ease.
2. Various light color for optional, not only warm white, cold white, also have red, green, blue and other light.
3. Light body with aluminum 6063 and stainless steel 304 surface ring, with corrision-resistant, high temperature, never change color, real durable.
4. COB high lumen high quality LED, >90LM/W, >80RA
2. Various light color for optional, not only warm white, cold white, also have red, green, blue and other light.
3. Light body with aluminum 6063 and stainless steel 304 surface ring, with corrision-resistant, high temperature, never change color, real durable.
4. COB high lumen high quality LED, >90LM/W, >80RA
Loading capacity is around 300kg, it is walkable, it allows people walkover.
5. Wide application in square, sidewalks, gardens, corrdors, parks,bridge, pathway, patio, and other outdoor places.
Single light’s voltage is DC12-24V, can parallel connection to work on DC12V/24V power supply. Each light with male waterproof connector, just adding extension cable to plug and play, very easy and convenient to use.
5. Wide application in square, sidewalks, gardens, corrdors, parks,bridge, pathway, patio, and other outdoor places.
Single light’s voltage is DC12-24V, can parallel connection to work on DC12V/24V power supply. Each light with male waterproof connector, just adding extension cable to plug and play, very easy and convenient to use.
Product Paramenters
|
Model No.
|
TMDM-3W-B
|
LED Type
|
Epistar COB LED
|
|
Power
|
3W
|
CRI
|
>80Ra
|
|
Voltage
|
DC12V-24V
|
CCT
|
3000K/4000K/6000K
|
|
Lumens
|
280lm
|
Customized
|
2700K/Red/Green/Blue
|
|
Size
|
Dia48mm*L57mm, cut out 35mm
|
IP Protection
|
IP67 (1meter underwater)
|
|
Beam angle
|
90 degree
|
Warranty
|
3 Years
|
Installation Instructions
Product packaging
|
Color box
|
units/160g
|
|
|
||
|
EXT CTN
|
180units, 29kg
|
|
|
||
|
Package Size(cm)
|
L
|
W
|
H
|
||
|
Color box
|
7
|
7
|
5
|
||
|
EXT CTN
|
52
|
52
|
44
|
||
