Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Desuman
-
Model Number:
-
EPS Sandwich Ceiling Panel
-
Product Name:
-
EPS Sandwich Ceiling Panel
-
Steel sheet Thickness:
-
0.2-1.0mm
-
Effective width:
-
1150MM/950MM/1050MM/960MM
-
Color:
-
Blue,white or according to your requirements
-
Density of EPS:
-
8-25KG
-
Characteristics:
-
Fast installation, heat insulation, fireproof and waterproof, low cost
-
Length:
-
According to your request
-
Surface treatment:
-
Zinc Galvanize/Wood grain/Artificial Stone
-
EPS Thickness:
-
50, 75, 100, 150, 200mm
Quick Details
-
Project Solution Capability:
-
graphic design, Others
-
Application:
-
Workshop
-
Design Style:
-
Chinese
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Desuman
-
Model Number:
-
EPS Sandwich Ceiling Panel
-
Product Name:
-
EPS Sandwich Ceiling Panel
-
Steel sheet Thickness:
-
0.2-1.0mm
-
Effective width:
-
1150MM/950MM/1050MM/960MM
-
Color:
-
Blue,white or according to your requirements
-
Density of EPS:
-
8-25KG
-
Characteristics:
-
Fast installation, heat insulation, fireproof and waterproof, low cost
-
Length:
-
According to your request
-
Surface treatment:
-
Zinc Galvanize/Wood grain/Artificial Stone
-
EPS Thickness:
-
50, 75, 100, 150, 200mm
| Good Insulation EPS Expandable Polystyrene Foam Sandwich Panel For Ceiling Steel EPS Sandwich Panel Manufacturer |
| Name | Good Insulation EPS Expandable Polystyrene Foam Sandwich Panel For Ceiling Steel EPS Sandwich Panel Manufacturer |
| Effective width | Wall panel: 950mm 1150mm Roof panel: 960mm 1050mm |
| Length | customized |
| materials | Polystyrene(EPS), Color steel sheet |
| Structure | Upper and lower layer: Color steel sheet Middle: Polystyrene(EPS) |
| Thickness |
Color steel sheet: 0.3-1.2mm
EPS foam: 50mm 75mm 100mm 150mm 200mm |
| The EPS density | 8-20kg/m3 |
| Steel sheet color | Ivory white, off white , sea blue, sky blue, lotus green, Grey brick, marble and wooden grain, bright red, etc… |
| lifetime | 15~20 years |
| Character | Water proof, Light weight, heat & sound insulation, moisture proof, easy to install |
| Application | various roofs and walls referring to the large size factory buildings, storage, exhibition halls, gymnasiums ,Purifying factory, combined house, etc. |
Featured:
1. Heat and sound insulation. Temperature suitable
2. Light weight, water-proof, Good chemical resistance and seismic resistance, anti-corrosion etc.
3. Energy conservation, environment protection, economical, good structure, easy to installation.

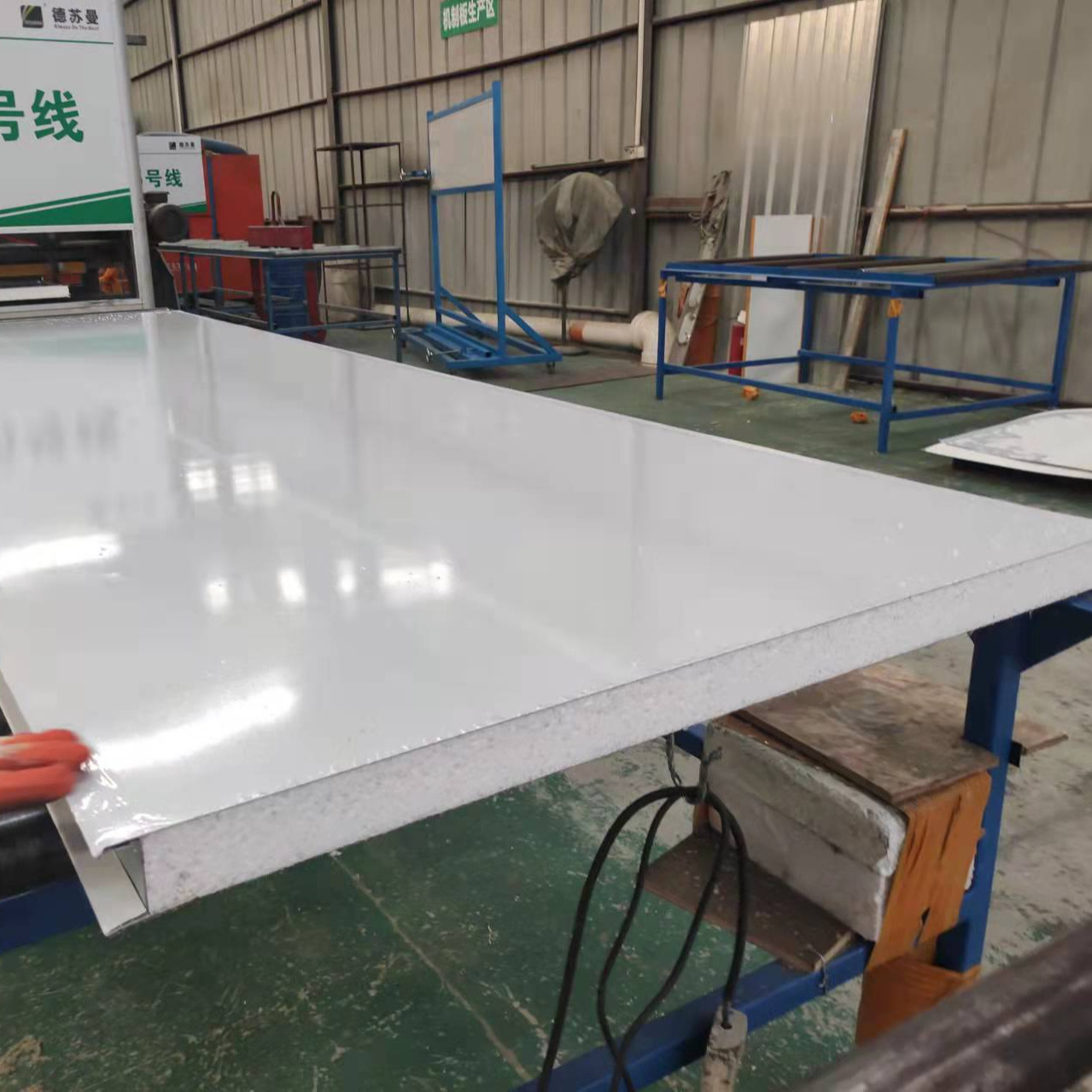

Sandwich panel looks like sandwich. Two external surfaces are made of powder-coated steel sheets.
And insulation materials usually use EPS, XPS, PU, Rock wool, Paper honeycomb, Aluminum honeycomb etc.
They are widely used in clean room as non-force bearing wall, roof and ceiling and as force bearing wall in single-storey prefabricated buildings.
The major application demonstrates in the clean room system as partitions & ceilings.
The fields range from electronics to semi-conductor, pharmaceutical, bio-tech and food processing etc.
