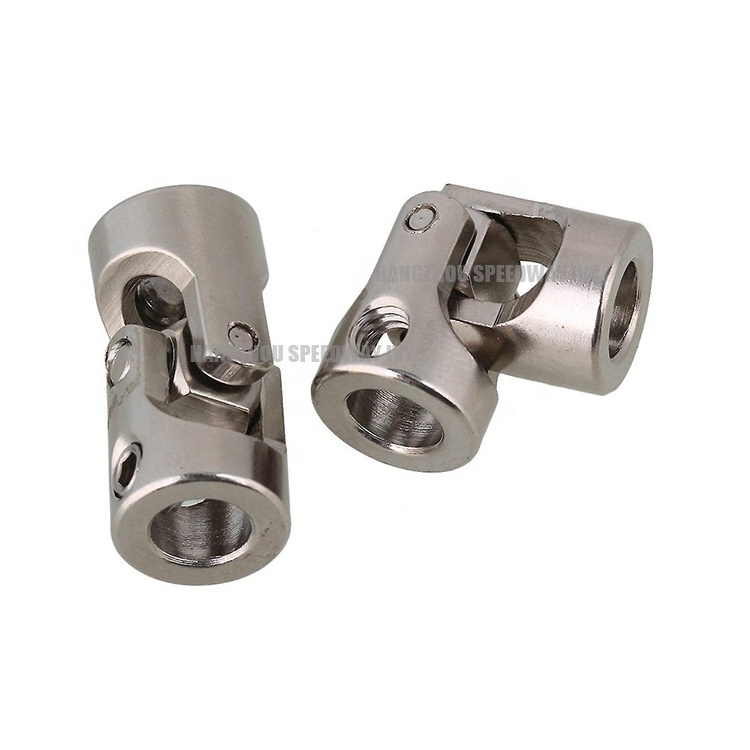

Stainless Steel Precision small Universal Joint Coupling / steering universal joint / flexible shaft coupling, auto spare parts
Specifications
Stainless Steel Precision small Universal Joint Coupling / steering universal joint / flexible shaft coupling
1) Material: ZG35CrMo
2) Max.speed : ≤1000RPM
3) Static breaking torque : ≤5000N.m
4) Max.working angle : 45°
5) Flexible or Rigid :
Flexible
6) Hole type : Circular hole or square hole
7) HRC : 56~62
8)
Customized according to your sample or drawing or demands
9) High quality, competitive price
10) Brand name: According to each other customers requests to engrave it on the products
11) ISO9001: 2000 certificated
12) Pure-hearted services
13) Flexible minimum order quantity
14) All of our products are wildly used in Metallurgy Industry, Iron & Steel Industry, Petroleum Industry, Chemical Industry and Paper Making, such as metal machinery, rolling mills, mill machines, cranes, non ferrous metal, oil machinery, and plastic machines.
15) Contact us for more information.
Universal Joints Coupling
*Suitable for every application in the range of general engineering up to a maximum speed of 1000 min -1
*Type G precison single joint
*Type GD precison double joint
*Maximum articulation angle 45° For each joint
*Bearings designed as plain bearings
*Available with finish bore H7 - on request with keyway, hexagon bore or square bore.
PB series
PB Series
---Max.speed: ≤1000RPM
---Static breaking torque: ≤5000N.m
---Max.working angle 45°
(1)PB(Single)
(2)PB(Double)
(3)PB(Telescopic)
(4)PB-HS
(5)PB-R
| MODEL | D(H7) | E | L2 | L1 | A | L4 | L3 | K(JS9) | T | F(H8) | SW(H8) | |
| XS13 | XD13 | 6 | 13 | 40 | 20 | 13 | 20 | 60 | ||||
| XS16 | XD16 | 8 | 16 | 40 | 20 | 11 | 22 | 62 | 2 | 9 | 8 | 8 |
| XS20 | XD20 | 10 | 20 | 45 | 22.5 | 11 | 24 | 72 | 3 | 11.4 | 10 | 10 |
| XS22 | XD22 | 10 | 22 | 48 | 24 | 13 | 26 | 74 | 3 | 11.4 | 10 | 10 |
| XS25 | XD25 | 12 | 25 | 56 | 28 | 15 | 30 | 86 | 4 | 13.8 | 12 | 12 |
| MODEL | D(H7) | E | L2 | L1 | A | L+ALL | L+ALL | L+ALL | SPLINE | K(JS9) | T | F(H8) | SW(H8) |
| XM20 | 10 | 20 | 45 | 22.5 | 11 | 160+45 | 180+60 | 195+75 | 6-14*11 | 3 | 11.4 | 10 | 10 |
| XM22 | 10 | 22 | 48 | 24 | 13 | 175+45 | 190+60 | 205+75 | 6-14*11 | 3 | 11.4 | 10 | 10 |
| XM25 | 12 | 25 | 56 | 28 | 15 | 220+50 | 250+100 | 300+150 | 6-16*13 | 4 | 13.8 | 12 | 12 |
| XM28 | 14 | 28 | 60 | 30 | 15 | 240+50 | 265+100 | 330+150 | 6-20*16 | 5 | 16.3 | 14 | 14 |
| XM32 | 16 | 32 | 68 | 34 | 17 | 255+50 | 280+100 | 350+150 | 6-20*16 | 5 | 18.3 | 16 | 16 |
| MODEL | D(H8) | E | L | B | A | F | P(H8) | K(JS9) | T |
| HXS16 | 8 | 16 | 36 | 18 | 10 | 4.5 | 4 | 2 | 9 |
| HXS20 | 10 | 20 | 42 | 21 | 12 | 5 | 4 | 3 | 11.4 |
| HXS23 | 12 | 23 | 52 | 26 | 15 | 7 | 5 | 4 | 13.8 |
| HXS26 | 14 | 26 | 62 | 31 | 18 | 8.5 | 6 | 5 | 16.3 |
| HXS30 | 16 | 30 | 74 | 37 | 22 | 11 | 6 | 5 | 18.3 |
Other small universal joint coupling:
2. PR Series
Max.speed: ≤1300RPM
Static breaking torque: ≤2000N.m
Max.working angle 45°
(1)PR(Single)
(2)PR(Double)
(3)PR(Telescopic)
(4)PR-HS
3. NB Series
Max.speed: ≤2500RPM
Static breaking torque: ≤2000N.m
Max.working angle 45°
(1)NB(Single)
(2)NB(Double)
4. CN Series
Max.speed: ≤4000RPM
Static breaking torque: ≤3000N.m
Max.working angle 45°
(1)CN(Single)
(2)CN(Double)
Custom Stainless Steel Precision Single/ Double Universal Coupling / Universal Joint Coupling / Steering joint,flexible coupling, transmission parts . Meet TS/ISO16949 quality certification.High intensity and rigidity ,competitive price, excellent performance and long using life.
| Material: | 1045 steel or as per customer's requirement |
| Manufacture method: | Forging or casting parts |
| Surface finish: | Heat treatment & rust prevention |
| LOGO on product & package: | Neutral with no LOGO or as per customer's requirement |
| Package: | PVC bag + Plywood box , or as per customer's requirement. |
OEM are welcome.
Your sample or drawing request are welcome.
Drawing of
Universal Joint Assembly,
Universal coupling
| NO | PART NO. | D1 | D2 | L | a |
| 1 | WFLZQ1 | 12.7 | 12.7 | 55.6 | >45° |
| 2 | WFLZQ2 | 20 | 20 | 84 | >45° |
| 3 | WFLZQ3 | 25 | 25 | 112 | >45° |
| 4 | WFLZQ4 | 30 | 30 | 96 | >45° |
| 5 | WFHTS5 | 35 | 35 | 100 |
>45°
|
Why Speedway?
1. Customized and designed according to the customers' sample, drawing or requirements.
2. Following the customers' requirements or as our usual packing.
3.Quick reply for Emails and messages within 24 hours
4. Customer-First , Price-Competitive, Quality- High, Services- Professional.
5. Flexible minimum order quantity
6.
20 years of rich bearing industry export experience
7. ISO & MPA & CE & SGS & BV certified
Packing detail:
each product will be packed in individual box with label of all information on it, and boxes will be packed in carton, cartons will be packed in wooden cases. Heavy parts, light parts and fragile parts will be packed separately
Delivery Detail:
30-35 days for sea order based on containers.
