Quick Details
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Bing Yan laser
-
Marking Head Brand:
-
BY-GS-A
-
Weight (KG):
-
59 KG
-
Product name:
-
Fiber laser marking machine
-
Laser wavelength:
-
1064nm
-
Laser Power:
-
10W/20W/30W/50W/80W/100W
-
Working area:
-
110*110 /150*150/175*175/ 200*200/300*300mm
-
Marking Depth:
-
0.01-5mm(Optional)
-
Applicable Material:
-
Metal, plastic
-
Software:
-
JCZ EZCAD Software
-
Minimum Line Width:
-
0.01mm
-
Marking Speed:
-
0-8000mm/s
Quick Details
-
Working Accuracy:
-
0.01mm
-
Graphic Format Supported:
-
AI, PLT, DXF, BMP, Dst, Dwg, LAS, DXP
-
Laser Type:
-
Fiber Laser
-
Cooling Mode:
-
Air Cooling
-
Control Software:
-
EZCAD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Bing Yan laser
-
Marking Head Brand:
-
BY-GS-A
-
Weight (KG):
-
59 KG
-
Product name:
-
Fiber laser marking machine
-
Laser wavelength:
-
1064nm
-
Laser Power:
-
10W/20W/30W/50W/80W/100W
-
Working area:
-
110*110 /150*150/175*175/ 200*200/300*300mm
-
Marking Depth:
-
0.01-5mm(Optional)
-
Applicable Material:
-
Metal, plastic
-
Software:
-
JCZ EZCAD Software
-
Minimum Line Width:
-
0.01mm
-
Marking Speed:
-
0-8000mm/s
|
BY Fiber Laser Series Technical Specifications
|
|
|
|
|||
|
Power
|
BY-20GS-A/B/C
|
BY-30GS-A/B/C
|
BY-50GS-A/B/C
|
|||
|
Advantages
|
Great value for money
|
Perfect functionality
|
Hot selling
|
|||
|
Marking Area
|
110X 110mm(4.3X43in)
|
Optional
|
|
|||
|
|
150X 150mm(5.9X59in)
|
|
|
|||
|
|
175X 175mm(6.9x6.9in)
|
|
|
|||
|
Maximum
Material
Thickness
|
300mm(11.8in)(at)110x 110mm
|
|
|
|||
|
|
250mm(9 in)(at)150 X 150mm
|
|
|
|||
|
|
206mm(8.1in)(at)175X 175mm
|
|
|
|||
|
Laser Type
|
JPT/RAYCUS/MAX/IPG Optional
|
|
|
|||
|
Repetition Rate (Frequency)
|
20-80kHZ(at)RAYCUS
|
|
|
|||
|
|
1-600kHZ(at)JPT LP / 1-4000kHZ(at)JPT MOPA M7
|
|
|
|||
|
|
1.6-1000kHZ(at)IPG
|
|
|
|||
|
Output power adjustment range
|
10%-100%
|
|
|
|||
|
Marking Speed
|
≤7m/s(275. 6in/s)
|
|
|
|||
|
Repeatability
|
0.01mm
|
|
|
|||
|
Cooling type
|
Air cooling
|
|
|
|||
Samples show

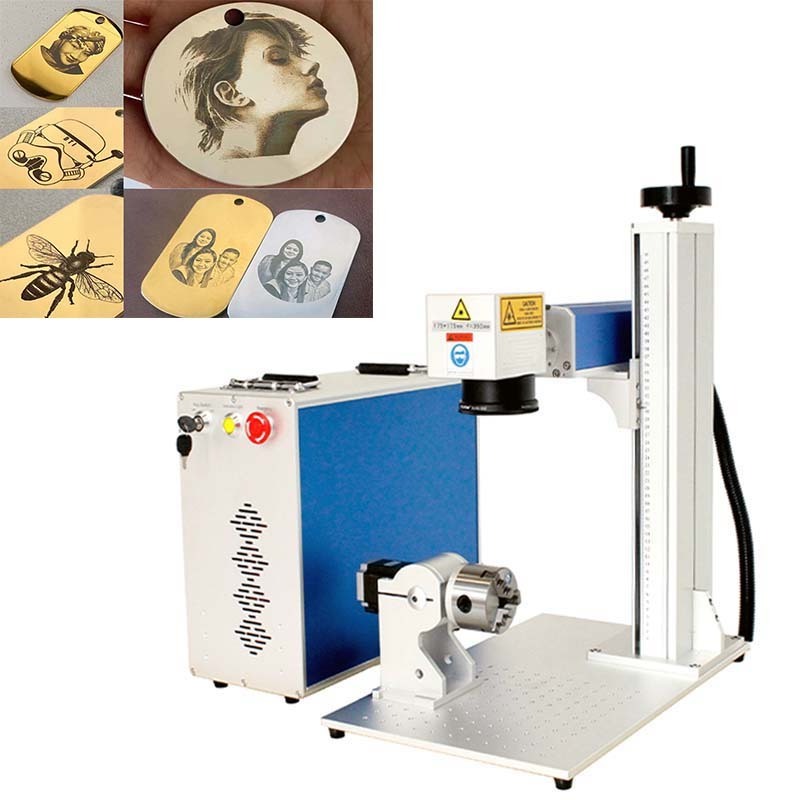

Fiber Laser Marking Machine
1.Suitable for all metal materials,such as common metals(iron,copper,etc),
rare metals(gold,silver,platinum,titanium,etc),metal oxides, metal deep carving.
2.It's also suitable for various non-metallic materials,such as ABS,PC,PVC,PE and so on.
3.Please contact us to confirm which model of machine is suitable for your product materials.
1.Suitable for all metal materials,such as common metals(iron,copper,etc),
rare metals(gold,silver,platinum,titanium,etc),metal oxides, metal deep carving.
2.It's also suitable for various non-metallic materials,such as ABS,PC,PVC,PE and so on.
3.Please contact us to confirm which model of machine is suitable for your product materials.
1.
Free test samples -
We can carry out free marking effect tests according to your product material
2.
Video Live-
You can connect with our sales consultants to watch the production process and the operation of the machine in online video.
3.
Customised
/OEM-
Customised machines on request，
Contact us！
Related Products
Our Advantages
FAQ
1. Q: Are you a manufacturer or a trading company?
A: We are a manufacturer established in 2010 ,now in Luoyang CN. Committed to
providing the majority of users with economic, high-quality laser equipment. Welcome to our factory.
providing the majority of users with economic, high-quality laser equipment. Welcome to our factory.
2. Q: How long does it take to learn the laser?
A: The software is easy to learn with teaching video, also we can help you to learn the laser online. Usually
it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
it will take a few hours to operate the laser ,But it will take a bit of trial and error to learn what speed and power settings to use with different materials. So we include a comprehensive guide with your system that has recommended speed and power settings for various materials with which you will be working.
3. Q: Will the laser machine be safe during transport?
A: (1) Inner: plastic stretch film and white foam.
(2)Middle: small pieces of wood and screws.
(3)outside: standard export wooden case. So,the laser machine will send to you safely. In case the machine was damaged , please contact us ,We will process the replacement as soon as possible to ensure that it arrives in time .
4. Q: What should I do when something goes wrong with the laser?
A: We offer a two-year warranty. In warranty, we will provide the broken items free of charge. Beyond the warranty period, we still provide maintenance service.
5. Q: How deep can it engrave into metal?
A: All metals can be engraved into with some depth; However, some metals are more amenable to depth engraving. Softer aluminum material will engrave with depth with only a few passes. The best way to test your material is with our Applications Lab.
