Quick Details
-
Model:
-
SEC-8700E
-
Operating pattern:
-
Single, automatic, continuous
-
Working viscosity:
-
<100000CPS
-
Mixing ratio:
-
±2%
-
Dispensing speed:
-
1g/sec~15g/sec or 5g/sec~30g/sec
-
Anti clogging time set:
-
0-100Sec
-
Operating method:
-
PLC, touchscreen
-
Metering method:
-
Stepper motor, gear pump/screw pump servo motor, piston pump
-
Working environment:
-
Temperature: 0-40℃, Humidity 20-90%
-
After-sales Service Provided:
-
Video technical support
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
second
-
Weight (KG):
-
330
-
Model:
-
SEC-8700E
-
Operating pattern:
-
Single, automatic, continuous
-
Working viscosity:
-
<100000CPS
-
Mixing ratio:
-
±2%
-
Dispensing speed:
-
1g/sec~15g/sec or 5g/sec~30g/sec
-
Anti clogging time set:
-
0-100Sec
-
Operating method:
-
PLC, touchscreen
-
Metering method:
-
Stepper motor, gear pump/screw pump servo motor, piston pump
-
Working environment:
-
Temperature: 0-40℃, Humidity 20-90%
-
After-sales Service Provided:
-
Video technical support

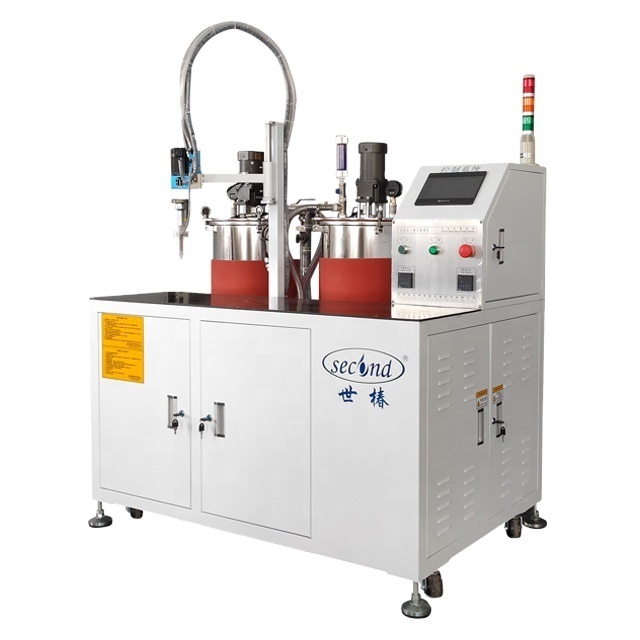

ab two part components liquid silicone epoxy resin PU glue dispenser dispensing mixing filling potting machine
Features
1
The metering motor is accurately controlled by PLC to achieve precise proportioning, automatic mixing, and automatic quantitative dispensing of two-component glue.
2 With vacuum feeding, vacuum degassing, heating, stirring,automatic cleaning and other functions, it can cope with a variety of complex glue environment.
3 Unique industrial design, generous appearance, compact structure, stable operating system, friendly operation interface, cost-effective
Specification
|
Model
|
SEC-8700E
|
|
Operation pattern
|
single,automatic,continuous
|
|
Operable viscosity
|
100000CPS
|
|
Mixing precision
|
±2%
|
|
Potting precision
|
±2%
|
|
Mixing ratio
|
100:100~100:20 or 100:20~100:10
|
|
Potting speed
|
1g/sec~15g/sec 5g/sec~30g/sec
|
|
Operation system
|
PLC+touch screen
|
|
Measuring mode
|
Stepping Motor/gear pump/rotary-plunger pump servo motor+piston pump
|
|
Operation mode
|
Foot switch/auto switch
|
|
Feed system
|
manual/semi-automatic(vacuum suction)
|
|
Time of preventing curing
|
0-100sec
|
|
Power supply
|
AC220V 50HZ 2KW
|
|
Size
|
1300(L) *900(W)*1650(H)mm
|
|
Weight
|
About 200kg
|
|
Work condition
|
Humidity:20-90%, Temperature :0-40°C
|
