Quick Details
-
Application:
-
Sorting Robot
-
Series:
-
Stereo Camera Module
-
Features:
-
3D Camera Module
-
Mounting Type:
-
USB
-
Description:
-
Dual Lens Camera Module
-
Sensor Size:
-
1/4' inch
-
F.NO:
-
2.4
-
View Angle:
-
DFOV72
-
Focal Length:
-
3.6mm
-
Distortion:
-
<5%
-
Chip Type:
-
OV9732
-
Array Size:
-
1280 x 720
-
IR filter:
-
650nm
-
Interface:
-
USB2.0
-
Function:
-
dual camera module
Quick Details
-
Place of Origin:
-
Guanhgzhou
-
Brand Name:
-
Sincere First
-
Model Number:
-
SF-1780-2H S2.0 OV9732Y
-
Application:
-
Sorting Robot
-
Series:
-
Stereo Camera Module
-
Features:
-
3D Camera Module
-
Mounting Type:
-
USB
-
Description:
-
Dual Lens Camera Module
-
Sensor Size:
-
1/4' inch
-
F.NO:
-
2.4
-
View Angle:
-
DFOV72
-
Focal Length:
-
3.6mm
-
Distortion:
-
<5%
-
Chip Type:
-
OV9732
-
Array Size:
-
1280 x 720
-
IR filter:
-
650nm
-
Interface:
-
USB2.0
-
Function:
-
dual camera module
Products Description
|
Sensor:
|
OV9732
|
Pixels:
|
1MP
|
|||
|
F.NO:
|
2.4
|
Focal Length:
|
3.6mm
|
|||
|
Fov(D):
|
72°
|
TV Distortion:
|
＜5%
|
|||
|
Module Size:
|
80mm×22mm×24.6mm
|
Object Distance:
|
30cm~Infinity
|
|||
|

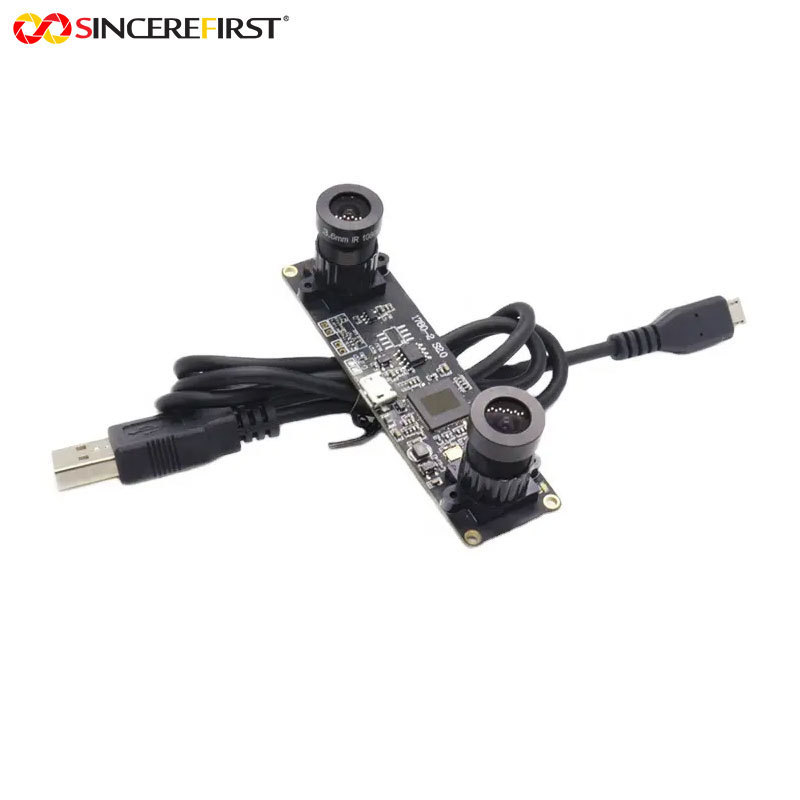

SF-1780-2H S2.0 OV9732 Description:
The OV9732 is a low-power and ultra-compact CameraChip™ sensor that brings 720p high definition (HD) video to mainstream security systems and wireless battery-powered smart-home cameras. It is a CMOS image sensor with a resolution of 0.922 MP. Compared to the previous generation OV9712, the OV9732 is 35 percent smaller and delivers dramatically improved pixel performance. SF-1780-2H S2.0 OV9732 Features: ◆1/4-inch optical format ◆3-micron pixel size ◆1080p resolution ◆Supports up to 30fps (frames per second) ◆Low-light sensitivity with high signal-to-noise ratio (SNR) ◆Small form factor for easy integration into compact devices ◆Support for digital zoom and cropping ◆Flexible control and customization options through an I2C interface ◆On-chip image processing for enhanced color accuracy and sharpness ◆Low power consumption for increased battery life in mobile devices. Camera Module, USB Camera Module, USB Board Camera, Board Level Camera USB, USB2.0, USB3.0 Camera Module, Board Camera: The USB camera module is a general-purpose camera control board designed for both PCs and embedded systems like the ARM,Raspberry Pi,Odroid,and similar hardware. It supports almost all parallel interface image sensors and many MIPI camera sensors, including both global and rolling shutter sensors. The USB cameras adopt the standards of the USB interface, so they are easily expandable and adapted. What’s more, they could be made driver-free by following the USB device standards,which is suitable for the image software or system applications. USB Camera Module Application Areas Camera Module For Imaging And Vision Solutions, Integrated Complex And Customized Technology, Machine Vision, Intelligent Systems, Future Security, Optical Technology Solutions, Camera Module Customized Solutions, Internet Of Things End-to-end Solution, Iris Recognition Technology, Iris Solutions, Face Recognition, VR High End Camera Solutions, Smart Home Solutions, Intelligent Hardware Solutions, Professional Camera Modules, Specially Designed For Small Uav, Airborne Camera Modules, Uav Solutions, Uav Special Modules, Drone Solutions, Aerial Filming Solutions, Optical Technology Solutions, Mobile Phone Camera Module, Camera Solutions, Optronics Solutions Imaging Technology Solutions, Video Technology Solutions, Optoelectonic Research, Infrared Imagers For Industry, Embedded Systems Solutions Main Developmet Board, Graphics Processing Unit, System Adaption Main Developmet Board: Arduino, ESP32, Raspberry Pi, NVIDIA Graphics Processing Unit: Ambarella, Rockchip, MediaTek, Qualcomm, NVIDIA, ATI System Adaption: Self-developed Software, Android, Window, MAC-IOS
