Quick Details
-
Brand Name:
-
FLYT
-
Model Number:
-
FLYT-SF-120
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1050*535*2.8
-
Solar panel:
-
Solar panel
-
Panel Size:
-
1050*535*2.8
-
Feature:
-
Waterproof
-
Power:
-
100W
-
Mini Fan:
-
Mini Fan
-
Mini Fan Power:
-
USB Plug
-
Color:
-
Black
-
Certificate:
-
/
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
Flexible
-
Warranty:
-
3months-1year
-
Brand Name:
-
FLYT
-
Model Number:
-
FLYT-SF-120
-
Place of Origin:
-
Jiangsu, China
-
Panel Dimensions:
-
1050*535*2.8
-
Solar panel:
-
Solar panel
-
Panel Size:
-
1050*535*2.8
-
Feature:
-
Waterproof
-
Power:
-
100W
-
Mini Fan:
-
Mini Fan
-
Mini Fan Power:
-
USB Plug
-
Color:
-
Black
-
Certificate:
-
/

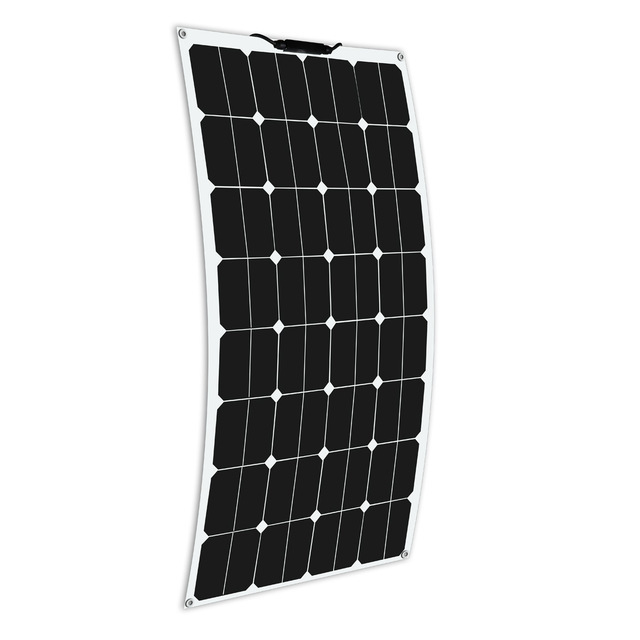

Product Description
Advantages:
* High Efficiency: Monocrystalline silicon cell with high conversion efficiency ensure max output power.
* Unique Material: Anti-corrosion, anti-fouling, easy to clean, and extend the life of solar panel.
* Bendable Panel: Semi flexible solar panel can be mounted on a curved surface.
* Durability: Ultra durable semi-flexible Solar Panel is an ideal choice for RV,yacht,boats etc.
* Quality and Grade: CE and ROHS certified. Waterproof grade IP67.
* High Efficiency: Monocrystalline silicon cell with high conversion efficiency ensure max output power.
* Unique Material: Anti-corrosion, anti-fouling, easy to clean, and extend the life of solar panel.
* Bendable Panel: Semi flexible solar panel can be mounted on a curved surface.
* Durability: Ultra durable semi-flexible Solar Panel is an ideal choice for RV,yacht,boats etc.
* Quality and Grade: CE and ROHS certified. Waterproof grade IP67.
Specification
1.brand-new ROHS approved mini Solar panel
2.Epoxy Solar Panel
3. Polycrystalline silicon
4.Max work voltage:18V
5.Open circuit voltage:19.8V
6.Max work current: 0-110MA
7:Short circuit current120MA
8.Power: 2W
9.Dimension136*110*3mm
2.Epoxy Solar Panel
3. Polycrystalline silicon
4.Max work voltage:18V
5.Open circuit voltage:19.8V
6.Max work current: 0-110MA
7:Short circuit current120MA
8.Power: 2W
9.Dimension136*110*3mm
Applications:
1. SMALL HOME PROJECTS .
2. SCIENCE PROJECTS .
3. ELECTRONIC APPLICATIONS .
4. CHARGING SMALL DC BATTERIES .
5. BUILD YOUR OWN SELF POWERED MODELS / SYSTEM / SOLAR DISPLAYS .
6. DIY TOYS.
1. SMALL HOME PROJECTS .
2. SCIENCE PROJECTS .
3. ELECTRONIC APPLICATIONS .
4. CHARGING SMALL DC BATTERIES .
5. BUILD YOUR OWN SELF POWERED MODELS / SYSTEM / SOLAR DISPLAYS .
6. DIY TOYS.
|
Model
|
Power(W)
|
Size(MM)
|
Vmp(V)
|
Imp(A)
|
Voc(V)
|
Isc (A)
|
||||||
|
10M
|
10
|
380*190*2.8
|
17.6
|
0.57
|
21.8
|
0.60
|
||||||
|
20M
|
20
|
350*340*2.8
|
17.6
|
1.14
|
21.8
|
1.19
|
||||||
|
30M
|
30
|
620*270*2.8
|
17.6
|
1.70
|
21.8
|
1.79
|
||||||
|
40M
|
40
|
540*340*2.8
|
17.6
|
2.27
|
21.8
|
2.38
|
||||||
|
50M
|
50
|
545*535*2.8
|
17.6
|
2.84
|
21.8
|
2.98
|
||||||
|
60M
|
60
|
615*535*2.8
|
17.6
|
3.41
|
21.8
|
3.57
|
||||||
|
70M
|
70
|
690*500*2.8
|
17.6
|
3.98
|
21.8
|
4.17
|
||||||
|
80M
|
80
|
820*535*2.8
|
17.6
|
4.55
|
21.8
|
4.77
|
||||||
|
100M
|
100
|
1050*535*2.8
|
18.0
|
5.56
|
22.0
|
5.90
|
||||||
|
120M
|
120
|
1175*535*2.8
|
18.0
|
6.67
|
22.0
|
7.08
|
||||||
|
140M
|
140
|
1145*650*2.8
|
18.0
|
7.78
|
22.0
|
8.26
|
||||||
|
160M
|
160
|
1190*660*2.8
|
18.0
|
8.89
|
22.0
|
9.45
|
||||||
|
180M
|
180
|
1460*660*2.8
|
18.0
|
9.99
|
22.0
|
10.63
|
||||||
|
*STC: Irradiance 1000W/m 2 , Module Temperature 25℃, Air Mass 1.5
|
|
|
|
|
|
|
||||||
