Quick Details
-
Brand Name:
-
Sinomada
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Weight (KG):
-
3000 kg
-
Power type:
-
Diesel
-
Load capacity:
-
3000kg
-
Load center:
-
500mm
-
Lift height:
-
3000mm
-
Free lift height:
-
110mm
-
Fork size(L*W*T):
-
1070*125*45mm
-
Fork outside spread(Min./Max.):
-
255/1100
-
Mast tilt range(F/R):
-
6/12
-
Mast lowered height:
-
2080mm
-
Mast extended height:
-
4110mm
Quick Details
-
Min. Lifting Height:
-
110mm
-
Warranty:
-
1 Year
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
Sinomada
-
Fork Length:
-
1070mm
-
Fork Width:
-
125mm
-
Weight (KG):
-
3000 kg
-
Power type:
-
Diesel
-
Load capacity:
-
3000kg
-
Load center:
-
500mm
-
Lift height:
-
3000mm
-
Free lift height:
-
110mm
-
Fork size(L*W*T):
-
1070*125*45mm
-
Fork outside spread(Min./Max.):
-
255/1100
-
Mast tilt range(F/R):
-
6/12
-
Mast lowered height:
-
2080mm
-
Mast extended height:
-
4110mm

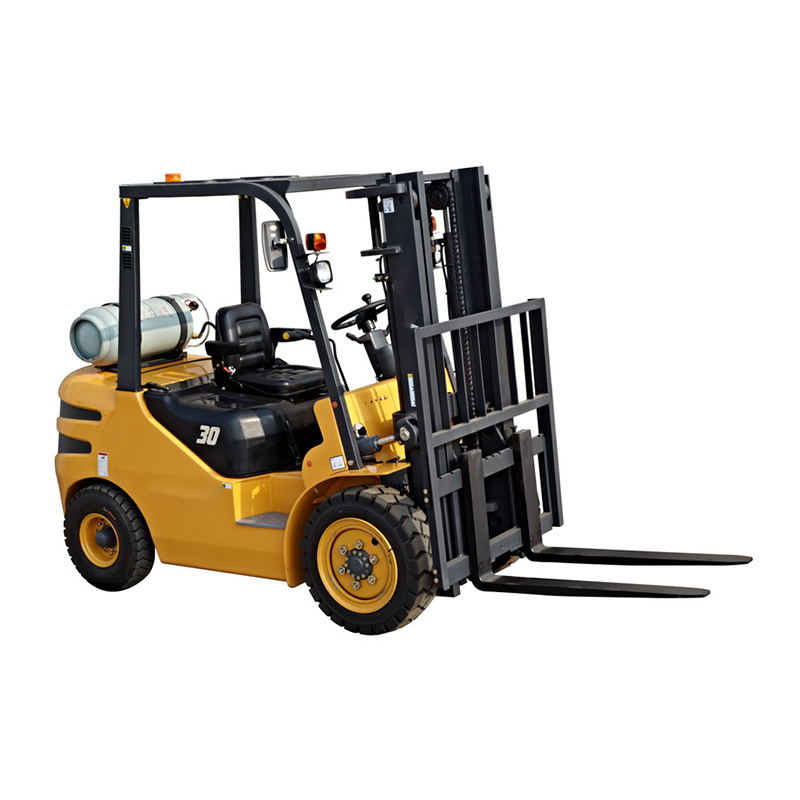

Product Description
Specification
|
Model
|
|
|
UNIT
|
HH30 (Z)
|
HH30 (Z)
|
|||
|
Power type
|
|
|
|
Diesel
|
|
|||
|
Rated capacity
|
|
|
kg
|
3000
|
3000
|
|||
|
Load center
|
|
|
mm
|
500
|
500
|
|||
|
Lift height
|
|
|
mm
|
3000
|
3000
|
|||
|
Free lift height
|
|
|
mm
|
110
|
110
|
|||
|
Fork size(L*W*T)
|
|
|
mm
|
1070×125×45
|
1070×125×45
|
|||
|
Fork outside spread(Min./Max.)
|
|
|
mm
|
255/1100
|
255/1100
|
|||
|
Mast tilt range(F/R)
|
|
|
deg
|
6/12
|
6/12
|
|||
|
Front overhang
|
|
|
mm
|
500
|
500
|
|||
|
Overall dimensions
|
Length to face of fork
|
Without of fork
|
mm
|
2680
|
2680
|
|||
|
|
|
With fork
|
mm
|
2725
|
2725
|
|||
|
|
|
Wheel width
|
mm
|
1210
|
1210
|
|||
|
|
Mast lowered height
|
|
mm
|
2080
|
2080
|
|||
|
|
Mast extended height
|
|
mm
|
4110
|
4110
|
|||
|
|
Overhead guard height
|
|
mm
|
2150
|
2150
|
|||
|
Turning radius
|
|
|
mm
|
2460
|
2460
|
|||
|
Min. right angle aisle width
|
|
|
mm
|
2105
|
2105
|
|||
|
Travel speed (unload/full load)
|
|
|
km/h
|
20/18.5
|
20/18.5
|
|||
|
Lift speed (unload/ full load)
|
|
|
mm/s
|
510/450
|
510/450
|
|||
|
Max. gradeability
|
|
|
%
|
20
|
20
|
|||
|
Tires
|
|
Front
|
|
28×9-15-12PR
|
28×9-15-12PR
|
|||
|
|
|
Rear
|
|
6.50-10-10PR
|
6.50-10-10PR
|
|||
|
Tread
|
|
Front
|
mm
|
1000
|
1000
|
|||
|
|
|
Rear
|
mm
|
980
|
980
|
|||
|
Wheelbase
|
|
|
mm
|
1700
|
1700
|
|||
|
Min. ground clearance（unload/ full load）
|
|
Mast
|
mm
|
160/140
|
160/140
|
|||
|
|
|
Frame
|
mm
|
145/125
|
145/125
|
|||
|
Battery
|
|
|
v/ah
|
12/90
|
12/90
|
|||
|
Engine
|
|
Model
|
|
C240
|
490BPG
|
|||
|
|
|
Rated output
|
kw/r.p.m
|
35.4/2500
|
40/2650
|
|||
|
|
|
Rated torque
|
n.m/r.p.m
|
139/1800
|
148/1800
|
|||
|
|
|
Displacement
|
cc
|
2369
|
2540
|
|||
|
|
|
No. of cylinder
|
|
4
|
4
|
|||
|
|
|
Borestroke
|
mm
|
90×100
|
90×100
|
|||
|
Transmission
|
|
Model
|
|
Hydraulic
|
Hydraulic
|
|||
|
|
|
Shift (FWD/RVS)
|
|
1/1
|
2/2
|
|||
|
Operating pressure
|
|
|
mpa
|
17.5
|
17.5
|
|||
