- Product Details
- {{item.text}}
Quick Details
-
Power:
-
9.34KW
-
Weight:
-
900 KG
-
Dimension(L*W*H):
-
2200*1220*1820mm
-
Product Name:
-
Vacuum Sausage Filler
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Quantitative Range:
-
4-9999g
-
Quantitative Deviation:
-
±2g
-
Volume:
-
240L
-
Application:
-
Food Industry
-
Material:
-
304 Stainless Steel
-
Type:
-
Meat Processing Machinery
-
Package Type:
-
Wooden Case
-
Certification:
-
CE Certification
Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Yuan Chang
-
Voltage:
-
380V
-
Power:
-
9.34KW
-
Weight:
-
900 KG
-
Dimension(L*W*H):
-
2200*1220*1820mm
-
Product Name:
-
Vacuum Sausage Filler
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Quantitative Range:
-
4-9999g
-
Quantitative Deviation:
-
±2g
-
Volume:
-
240L
-
Application:
-
Food Industry
-
Material:
-
304 Stainless Steel
-
Type:
-
Meat Processing Machinery
-
Package Type:
-
Wooden Case
-
Certification:
-
CE Certification
Specifications

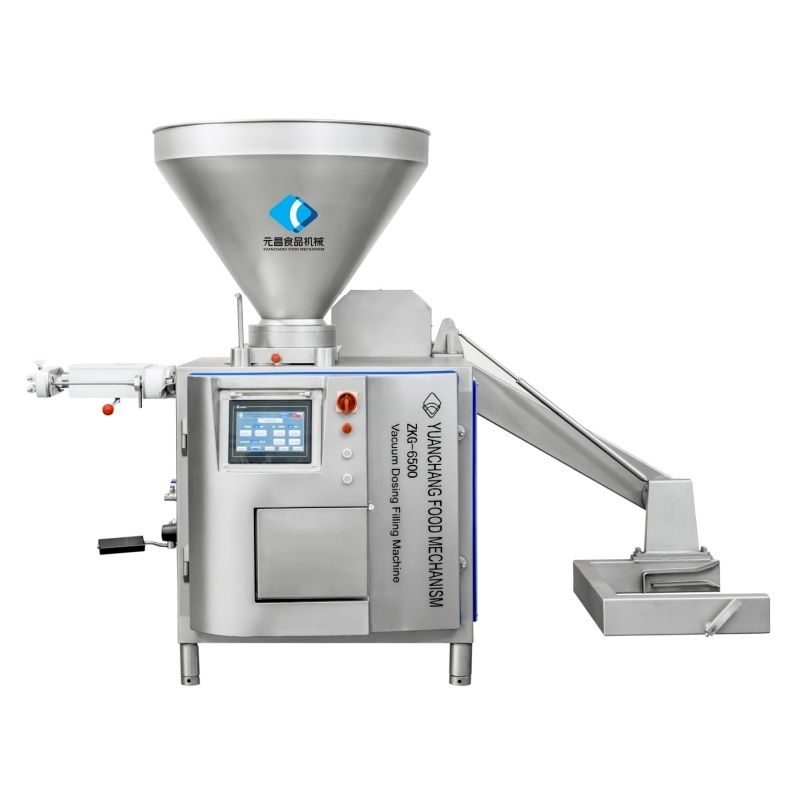

Vacuum Sausage Filler
ZKG Series is always your first choice for continuous filling tasks. The most reliable rotary vane pumps(processed by our own MAZAK CNC machining center) could make sure the quantitative deviation to ±2g. And it could combine with double clipper machines to fullfill the full-automatic production
|
Model
|
Quantitative Range
（g ）
|
Power
(KW)
|
Quantitative Deviation
(minced meat)（g ）
|
Volume
（L ）
|
Voltage
（V ）
|
Weight
（Kg ）
|
Size
（mm ）
|
|
ZKG-3500
|
4-9999
|
9.34
|
±2
|
240
|
380
|
900
|
2200×1220×1820
|
|
ZKG-6500
|
6-9999
|
10.34
|
±2
|
|
|
1050
|
2300×1220×1820
|
|
ZKG-9000
|
9-9999
|
13
|
±5
|
|
|
1200
|
2300×1320×1820
|
|
ZKG-20000
|
20-9999
|
19
|
--
|
|
|
1800
|
2450×1400×2000
|
Product Show
Features
1.
Japan YASKAWA or other famous servo motor
2.
Swiss ABB water-proof button
3.
Mitsubishi PLC control system
4.
Touch Screen, 8.4 inch true color LCD from Taiwan DELTA
5.
Germany Busch vacuum pump
6.
Quantitative Deviation:±2g(minced meat)
7.
Twisting Speed: 640pcs/min(e.g.6g/pc) (stepless speed regulating available)
8.
Twisting tube size: Φ10, Φ12, Φ14,Φ16, Φ19, Φ22(optional 3)
9.
Impeller,blade and pump body is designed with high hardness, high wear-resisting stainless steel, and the master body adopts 304 stainless steel
Application
This machine excels at
quantitative filling
&
high-speed sealing
under vacuum conditions. It is well-suited for natural casings, protein casings, and plastic casings. Many users have provided highly positive reviews after using it.
★
Clipping and filling tube:
Φ16, Φ22, Φ28, Φ30, Φ40(optional 3)
Certifications
Packaging & Shipping
Our Advantages
FAQ
1. Are you a factory or trading company?
We are the SGS and BV certificated manufacturer, specialized in meat and sausage processing machines field for 32 years.
2. How about the product quality?
We adopt excellent SUS304 as machine material. Each machine will be tested more than 24 hours before delivery to you.All electrical parts are used reliable and famous brand, which works with us over 20 years.
3. What about the warranty and after-sale service?
Our machine has 1-year guarantee, whole life technical support. Engineers are available to serve overseas.
4. Are you providing training about machine installation and operation?
Yes, our engineer can teach your workers in our or your factory.
5. Is it possible to use our LOGO or special custom design?
Yes, we have a professional technology team for new research and development.
6. How long the lead time is?
Usually 2-9 weeks, depends on the machine you ordered.
7. What is the price term and payment method?
We can quote EXW, FOB, CIF and CNF price. And you can pay us by T/T, L/C or Western Union.
We are the SGS and BV certificated manufacturer, specialized in meat and sausage processing machines field for 32 years.
2. How about the product quality?
We adopt excellent SUS304 as machine material. Each machine will be tested more than 24 hours before delivery to you.All electrical parts are used reliable and famous brand, which works with us over 20 years.
3. What about the warranty and after-sale service?
Our machine has 1-year guarantee, whole life technical support. Engineers are available to serve overseas.
4. Are you providing training about machine installation and operation?
Yes, our engineer can teach your workers in our or your factory.
5. Is it possible to use our LOGO or special custom design?
Yes, we have a professional technology team for new research and development.
6. How long the lead time is?
Usually 2-9 weeks, depends on the machine you ordered.
7. What is the price term and payment method?
We can quote EXW, FOB, CIF and CNF price. And you can pay us by T/T, L/C or Western Union.
