- Product Details
- {{item.text}}
Quick Details
-
Span:
-
7.5-31.5m
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
VOHOBOO
-
Weight (KG):
-
200 kg
-
Product name:
-
End carriage
-
Control method:
-
Remote Controller
-
Lifting mechanism:
-
Eliectric Hoist
-
Motor power:
-
0.3, 0.4, 0.75, 1kw
-
Color:
-
Customer Requirements
-
Crane feature:
-
Single Girder Oveherd Crane
-
Power source:
-
3 Phase 380V 50hz or customized
-
Type:
-
Single girder and double girder end carriage
-
Wheel size:
-
W125*60
-
Certification:
-
CE Certificate
Quick Details
-
Max. Lifting Height:
-
3M, 25M, 7.5m, 5M, 10M, 4M, 6m, 6m~30m
-
Marketing Type:
-
Hot Product 2023
-
Rated Lifting Moment:
-
100KN
-
Span:
-
7.5-31.5m
-
Place of Origin:
-
Hubei, China
-
Brand Name:
-
VOHOBOO
-
Weight (KG):
-
200 kg
-
Product name:
-
End carriage
-
Control method:
-
Remote Controller
-
Lifting mechanism:
-
Eliectric Hoist
-
Motor power:
-
0.3, 0.4, 0.75, 1kw
-
Color:
-
Customer Requirements
-
Crane feature:
-
Single Girder Oveherd Crane
-
Power source:
-
3 Phase 380V 50hz or customized
-
Type:
-
Single girder and double girder end carriage
-
Wheel size:
-
W125*60
-
Certification:
-
CE Certificate
Product Description
Product Description：

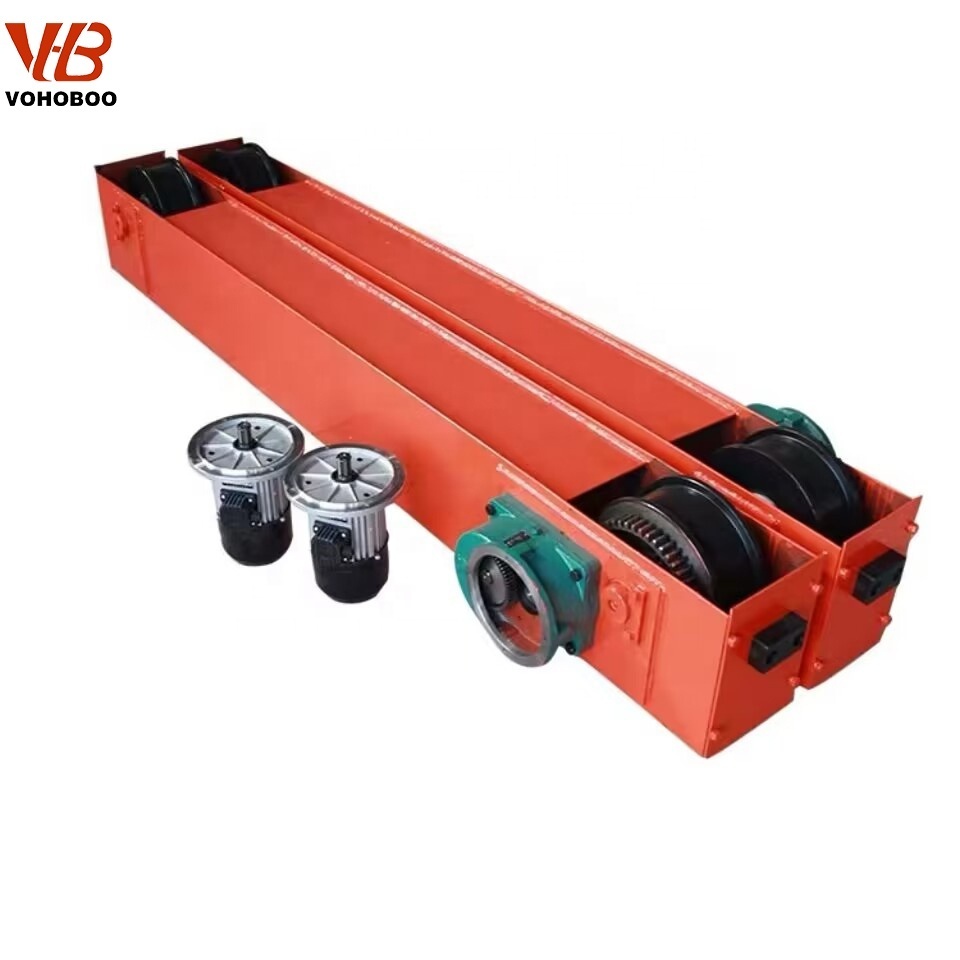

End carriage made of rectangular tube, transmission mechanism use gear reducer motor, equipped with the open pinion wheel or hollow shaft wheel. Suitable for single girder or double girder overhead crane. Wheel tread surface heat treatment.
It only need to weld the main beam and end beam after correction. Making crane manufacturing,installation and maintenance very easily.
European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.
It only need to weld the main beam and end beam after correction. Making crane manufacturing,installation and maintenance very easily.
European type End carriage adopts F-series reducer and hollow shaft drive, working duty reach M5.
Customer Feedback
Product Parameters
|
End carriage model
|
Application of crane model
|
Rectanglar steel tube
|
Wheel size
|
Motor power
|
|
L125-15
|
1t-7.5m
|
150*150*6
|
W125*60
|
0.3KW*2
|
|
L125-20
|
1t-11.5m
|
|
|
|
|
L125-25
|
1t-16.5m
|
|
|
|
|
L160-15
|
2t/3t-7.5m
|
150*200*8
|
W160*70
|
0.4KW*2
|
|
L160-20
|
2t/3t-11.5m
|
|
|
|
|
L160-25
|
2t/3t-16.5m
|
|
|
|
|
L160-30
|
2t/3t-22.5m
|
|
|
|
|
L160-35
|
2t/3t-28.5m
|
|
|
|
|
L200-20
|
5t-11.5m
|
150*250*8
|
W200*70
|
0.4KW*2
0.75KW*2
|
|
L200-25
|
5t-16.5m
|
|
|
|
|
L200-30
|
5t-22.5m
|
|
|
|
|
L200-35
|
5t-28.5m
|
|
|
|
|
L250-20
|
10t-11.5m
|
200*250*8
200*300*8
|
W250*80
|
0.75KW*2
1.1KW*2
1.5KW*2
|
|
L250-25A
|
10t-16.5m
|
|
|
|
|
L250-30A
|
10t-22.5m
|
|
|
|
|
L250-35A
|
10t-28.5m
|
|
|
|
|
L250-25B
|
16t-16.5m
|
|
|
|
|
L250-30B
|
16t-22.5m
|
|
|
|
|
L250-35B
|
16t-28.5m
|
|
|
|
|
L315-30
|
20t-16.5m
|
200*400*8
|
W315*90
|
1.5KW*2
|
|
L315-35
|
20t-28.5m
|
|
|
|
