2. Resistance to hydrofluoric acid,phosphoric acid,no fear of corrosion,tensile and compressive strength is better.
- Product Details
- {{item.text}}
Quick Details
-
Brand Name:
-
Qinyang Zhihua Trade
-
Model Number:
-
STZ-1
-
Product name:
-
Carbon brick
-
Fixed carbon low ash:
-
≥98.5%
-
Ash content low ash:
-
≤1.5%
-
Bulk density low ash:
-
≥1.58g/cm3
-
Compressive strength:
-
≥45Mpa
-
Bending strength:
-
≥12Mpa
-
Dimension:
-
240x114x65mm
-
Max service temperature:
-
150℃
-
Net weight of single brick:
-
2.78kg
-
MOQ:
-
1 Ton
Quick Details
-
Application:
-
Anticorrosion engineering
-
Chemical Composition:
-
Carbon and Ash
-
Place of Origin:
-
Henan,China
-
Brand Name:
-
Qinyang Zhihua Trade
-
Model Number:
-
STZ-1
-
Product name:
-
Carbon brick
-
Fixed carbon low ash:
-
≥98.5%
-
Ash content low ash:
-
≤1.5%
-
Bulk density low ash:
-
≥1.58g/cm3
-
Compressive strength:
-
≥45Mpa
-
Bending strength:
-
≥12Mpa
-
Dimension:
-
240x114x65mm
-
Max service temperature:
-
150℃
-
Net weight of single brick:
-
2.78kg
-
MOQ:
-
1 Ton

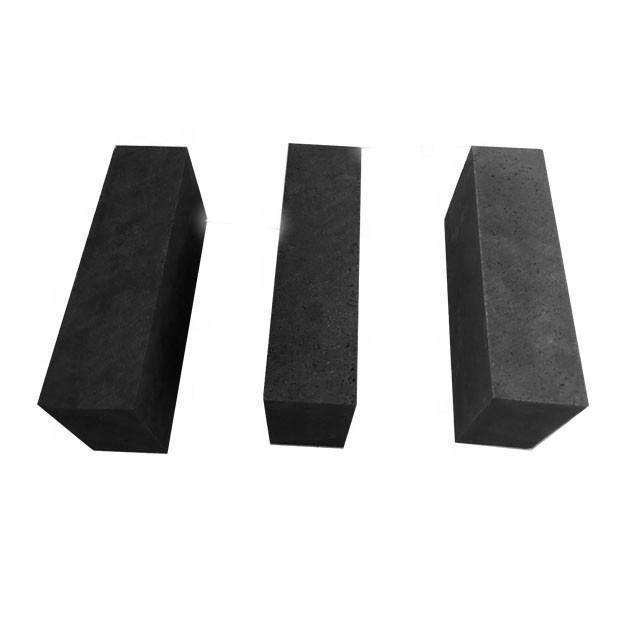

Superior Thermal Shock Graphite Bricks Anti Corrosion Carbon Brick For Metallurgy
Product Overview
Technological Process
The company’s carbon brick,carbon plate using in high quality graphite carbon material,containing high acid organic compounds added.It is refined high pressure molding,vacuum impregnation and high temperature treatment.It has special acid and temperature resistance and is ideal lining materials for phosphoric acid reaction tank,phosphate storage tank and other equipment in chemical industry.
Working Flow
FEATURES AT A GLANCE
1. This product has excellent chemical stability,anti-erosion,anti-wear,low porosity and excellent corrosion resistance.
3. Its own mass and volume constant,heat conduction and temperature resistance,not due to the temperature of the two burst damage.
4. During construction,no pollution medium,no impurity coverage,easy to clean,long-term use the heat transfer effect does not reduce,especially suitable equipment corrosion of strong corrosive medium.
5. Small coefficient thermal expansion,low linear change rate,used in the range of 150 degrees,its stable performance,strong durability.
4. During construction,no pollution medium,no impurity coverage,easy to clean,long-term use the heat transfer effect does not reduce,especially suitable equipment corrosion of strong corrosive medium.
5. Small coefficient thermal expansion,low linear change rate,used in the range of 150 degrees,its stable performance,strong durability.
High temperature roasted carbon brick
Acid and alkali resistant carbon brick
Anticorrosive acid resistant carbon brick
PRODUCT SPECIFICATIONS
|
Item
|
Unit
|
Index
|
||
|
|
|
No impregnation
|
||
|
|
|
Low ash
|
||
|
Fixed carbon
|
%
|
≥98.5
|
||
|
Ash content
|
%
|
≤1.5
|
||
|
Bulk density
|
g/cm3
|
≥1.58
|
||
|
Com[pressive strength
|
Mpa
|
≥45
|
||
|
Flexure strength
|
Mpa
|
≥12
|
||
|
Dimension
|
mm
|
240x114x65
|
||
|
Resistance to permeablity(water pressure is impermeable)
|
Mpa
|
0.6
|
||
|
Max service temperature
|
℃
|
150
|
||
|
The size of carbon brick,all special-shaped carbon brick based on 240x114x65mm,such as thick type,wide type,wedge type,arch angle type and tan type brick,are produced according to the requirements of user’s drawings.
|
|
|
||
|
|
|
|
||
|
|
|
|
||
|
|
|
|
||
Application
It is applied in phosphoric acid reaction tank,phosphoric acid washing tower,phosphoric acid,hydrochloric acid,hydrofluoric acid storage tank lining,power plant desulfurization tower and chimney lining,stainless steel picking line,lithium electric manufacturer supporting corrosion equipment and sewage treatment anti-corrosion.
Certification
The company’s products has passed the ISO9001:2008 international quality system certifications,and years of cooperation Luoyang Refractory Research Institute,periodic testing product quality,to provide customers with stable quality performance of carbon bricks.
Packing&Shipping
1.We will process the required standard brick and special-shaped brick according to the final equipment construction drawing and bricklaying drawing.The specification of the brick is 240*114*65(mm),and the other specification are special-shaped brick.
2.Our packing will take full account of the possible damage caused byh transportation.All carbon brick are packed in wooden palltes.For each kind of special-shaped brick,it should be packed wioth small carton and wooden pallet and marked with brick number.The carbon brick model and brick number will be marked on all packages,and the brick number will also be marked on each
special-shaped brick.
special-shaped brick.
