Quick Details
-
Model Number:
-
XYT333
-
Pressure range:
-
10KPa
-
Medium:
-
Air, non-combustible and non-corrosive gases
-
Connection:
-
P1-high pressure, marked +, P2- low pressure, marked -
-
temprature::
-
-20~85℃
-
Material:
-
The body is PA6.6 and the shell is PS
-
Weight:
-
150g
Quick Details
-
Warranty:
-
1 year
-
Place of Origin:
-
China
-
Brand Name:
-
XYT
-
Model Number:
-
XYT333
-
Pressure range:
-
10KPa
-
Medium:
-
Air, non-combustible and non-corrosive gases
-
Connection:
-
P1-high pressure, marked +, P2- low pressure, marked -
-
temprature::
-
-20~85℃
-
Material:
-
The body is PA6.6 and the shell is PS
-
Weight:
-
150g
|
Model
|
Pressure Range
|
|
930.80
|
20 - 200Pa
|
|
930.81
|
40 - 100Pa
|
|
930.82
|
40 - 200Pa
|
|
930.83
|
50 - 500Pa
|
|
930.85
|
200 - 1000Pa
|
|
930.86
|
500 -2500Pa
|
|
930.87
|
1000 - 4000Pa
|

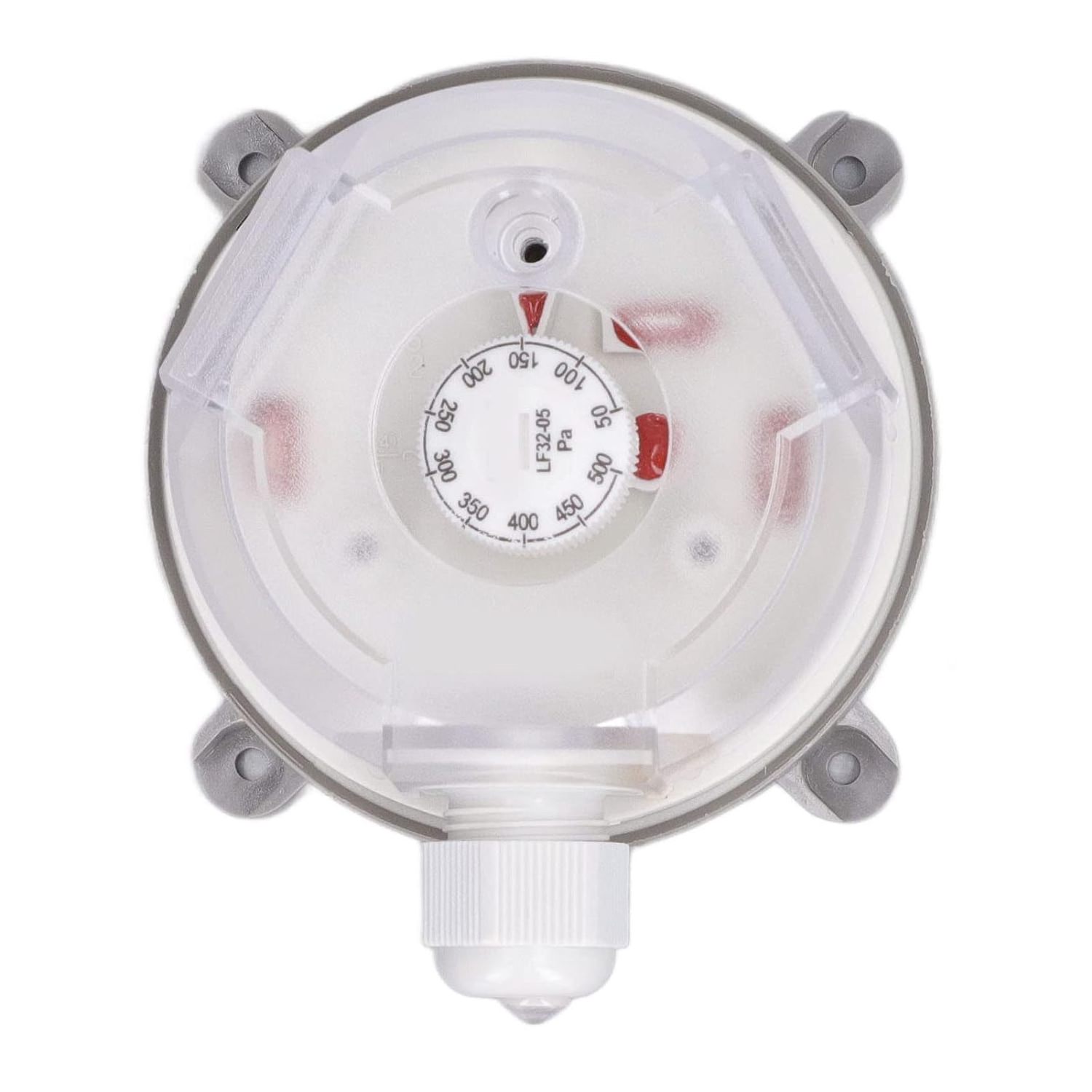

differential pressure switch
Package: Plastic
Detailed introduction:DPS series differential pressure switch
Range: 20-200Pa/ 40-400Pa/
40-200
Pa
/50-500
Pa
/200-1000
Pa
/500-2500
Pa
/1000-4000Pa
Medium: Air, non-flammable and non-corrosive gases
Connection: 6.2mm diameter pipe
Output: SPDT, 1.5A/250VAC
Maximum pressure limit: 10Kpa
Medium and ambient temperature: -20℃~+85℃
Package: IP54 With mounting accessories
The type of pressure is relatively overpressure
Pressure connector Plastic connector for 5mm(inner diameter) hose
Electrical wiring AMP connectors 6,3x0,8(DIN 46244) or screw connectors
Electrical rating Standard model: max.1.0A(0.4A)/250VAC, low voltage model: max.1.0A/24VDC
Electrical connection AMP float insert 6.3mm x 0.8mm, DIN: 46244, or push-button threaded terminals. Cable PG-11 or M20×1.5
