- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
W8LC
-
Type:
-
Professional line array loudspeaker-W8LC
-
Color:
-
Black
-
LOW Driver:
-
12"X1(NEO)
-
MF Driver:
-
6.5"X2(38mm)
-
HF Driver:
-
34mmX3
-
Maximum Continuous SPL:
-
129dB
-
Maximum Peak SPL:
-
135dB
-
Cabinet Dimension(mm):
-
L1000*H364*W571
-
Net Weight(Kg):
-
58.8kg
Quick Details
-
Warranty:
-
3months-1year
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CALM
-
Model Number:
-
W8LC
-
Type:
-
Professional line array loudspeaker-W8LC
-
Color:
-
Black
-
LOW Driver:
-
12"X1(NEO)
-
MF Driver:
-
6.5"X2(38mm)
-
HF Driver:
-
34mmX3
-
Maximum Continuous SPL:
-
129dB
-
Maximum Peak SPL:
-
135dB
-
Cabinet Dimension(mm):
-
L1000*H364*W571
-
Net Weight(Kg):
-
58.8kg

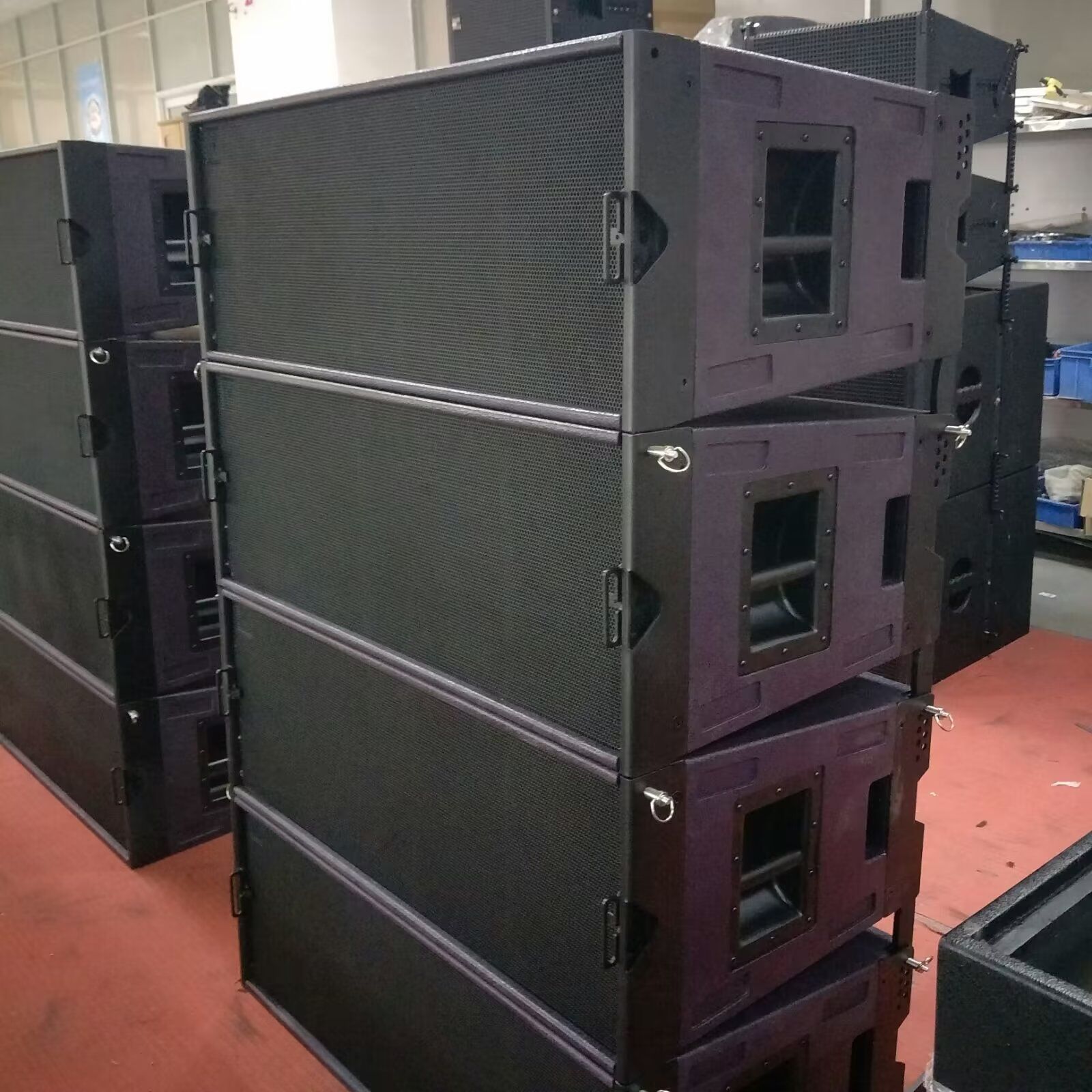

3 way Line Array System-W8LC , single 12'' with good performance!
|
Model |
W8LC |
|
|
Color |
Gray |
|
|
TYPE |
Three-Way Line Array |
|
|
Frequency Response |
45Hz-20KHz(+/-3dB) |
|
|
Rated Power/ Impedance
|
LF |
12"×1/200 Magnet 75mm/350W/8Ω NEO |
|
MF |
6.5"/38mm×2/200W/16Ω |
|
|
HF |
34mm×3/100W/24Ω |
|
|
Sensitivity(1w/1m)dB/ Peak Power
|
LF |
102dB/1400W Peak |
|
MF |
118dB/800W Peak |
|
|
HF |
119dB/600W Peak |
|
|
Maximum Continuous SPL |
129dB |
|
|
Maximum Peak SPL |
135dB |
|
|
Cabinet Construction |
18mm Birch Plywood |
|
|
Cabinet Finish |
Polyurethane Coating |
|
|
Cabinet Dimension(mm) |
L1000×H364×W571 |
|
|
Net Weight(Kg) |
58.8Kg |
|
1.carton package with foam inside.
2.plywood flight case package.
1. OEM Manufacturing welcome: Product, Package.
2. Sample order.
3. We will reply you for your inquiry in 24 hours.
4. After sending, we will track the products until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the products, contact with us, we will offer the solve way for you.
