1 in 2 Out 4K HDMI Splitter 1x2 Amplifier Support EDID management
Model: HDR-SP102N
The 1x2 HDMI Splitter uses a single HDMI source,accessing to multiple HDMI sinks. It allows one HDMI device to be split easily to 2 HDMI compatible monitors or projectors. In addition,it can be placed at the end of a long HDMI cable to regenerate the HDMI signal. The resolution of this hdmi splitter can be up to 3840 x 2160/30Hz.
This product can support EDID management function, comes with seven kinds of EDID mode, the users can choose according to their own needs. In addition, it is with built-in IR extension function, it can work with our hdmi repeater which has IR-RX to receive the IR command to control the source.
| Support HDMI 1.4 ,HDCP1.4 |
| Support 3D video format |
| Support high resolution up to 3840X2160/30HZ |
| Support the max baud rate of 3.4G and TMDS clock can be up to 340 MHz |
| Support8/10/12 bit deep color |
| Support AWG26 HDMI standard cable, output up to 8 meters. |
| Support single HDMI source,accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc. |
|
Built-in IR extension function.( it can work with our hdmi repeater which has IR-RX to receive the IR command to remote control the source) |
|
Support serial port online upgrade |
|
Support EDID management |
|
5V/1A power adapte |
| HDMI resolution | up to 3840x2160/30Hz |
| Max bandwidth | 340MHz |
| Max baud rate | 3.4Gbps |
| Max working current | 500m A |
| Power adapter format | input AC (50Hz, 60Hz) 100V-240V; output: DC5V/1A |
| Operating Temperature range | (-15 to +55℃) |
| Dimension (L x W x H) | 154x60x24 (mm) |
| Weight | 335g |
| HDMI version | HDMI 1.4 |
| HDCP version | HDCP 1.4 |

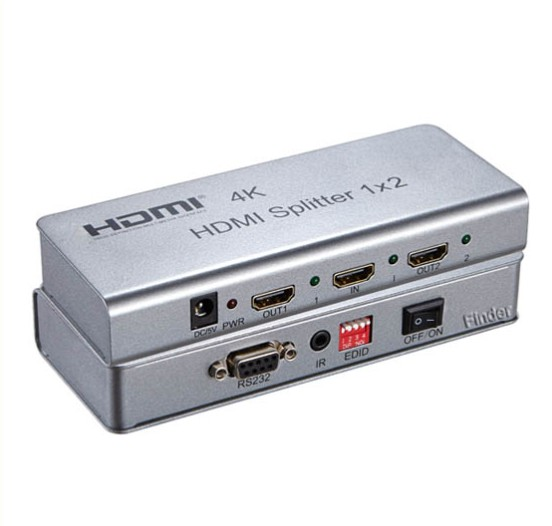

Product interface pictures
1:5V Power Interface
2:Power adapter indicator
3:HDMI output port
4:LED Output indicator
5: HDMI input port
6 : LED Input Indicator
7:RS232 port , serial port online upgrade
8:IR TX Ex te nsion Interface
9:DIP switch,using for EDID management
10:Power switch
DIP EDID Switch Description:
DIP 1 2 3 4
X 0 0 0 :copy output1 EDID only
X 0 0 1 : EDID MIX
X 0 1 0 : 4K
x
2K (
YUV420
)
X 1
0
0 :
4K 30Hz 5.1ch
X 0 1 1 : 4KX2K 30Hz
X 1 0 1 : 1080P 3D 2ch
X 1 1 0 : 1080P 2D 2ch
X 1 1 1 : 1080P 2D 5.1ch
1 is used for upgrades, 1 is upgrading mode, 0 is normal working mode (switch down is 1, otherwise is 0)
Working Mode Description:
There are two working mode for product, normal working mode and upgrading mode, which is decided by DIP EDID switch 1, 1 is upgrading mode,0 is normal working mode.
IR Extension description:
There is an IR TX Extension port, it can work with an optional HDMI repeater which works as IR-RX and IR extended via HDMI cable
Output port:
Only output1 can support CEC function, output 2 support IR extension function.
Connection and Operation:
1: connect the HD source to the splitter input with one hdmi cable
2: connect the splitter output to the diaplays with 2 hdmi cables
3: connect 5V /1A power adapter to the splitter
Pack age include :
1 . HDMI splitter x1pc
2. Power adapter x1pc
3. User manual x1pc
4 . IR cable x1pair
5 . HDMI repeater (optional)
