Quick Details
-
Voltage:
-
220V
-
Power:
-
400W
-
Dimension(L*W*H):
-
2130*1600*800mm
-
Weight:
-
375
-
Name:
-
Automatic Mattress tape edge closing sewing machine
-
Application:
-
Mattress Tape Edge Binding
-
Productivity:
-
10-20pcs/hour
-
Sewing head type:
-
Choose Avaliable
-
Work table size:
-
1480*1920mm
-
Mattress machine:
-
Mattress Edging Binding Machine
-
Mattress Thickness:
-
20-400mm
-
Automatic grade:
-
Semi-Automatic/Fully Automatic
-
Keyword:
-
Mattress Border Sewing Machine
-
Type:
-
Sewing Tape Edge Machine
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
JOCONN
-
Marketing Type:
-
Hot Product
-
Voltage:
-
220V
-
Power:
-
400W
-
Dimension(L*W*H):
-
2130*1600*800mm
-
Weight:
-
375
-
Name:
-
Automatic Mattress tape edge closing sewing machine
-
Application:
-
Mattress Tape Edge Binding
-
Productivity:
-
10-20pcs/hour
-
Sewing head type:
-
Choose Avaliable
-
Work table size:
-
1480*1920mm
-
Mattress machine:
-
Mattress Edging Binding Machine
-
Mattress Thickness:
-
20-400mm
-
Automatic grade:
-
Semi-Automatic/Fully Automatic
-
Keyword:
-
Mattress Border Sewing Machine
-
Type:
-
Sewing Tape Edge Machine

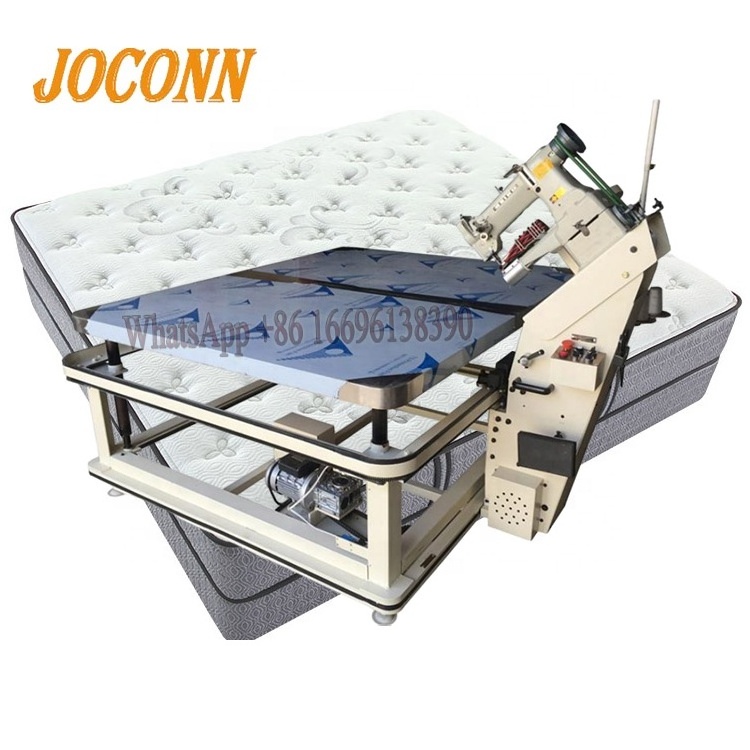

This
mattress tape edge sewing machine
mainly consists of
working table, frame, and sewing carriage
. it is widely used for
spring mattress, side seaming between bottom fabric and side fabric
, also suitable for sewing other upholstered bed mattress, sleeping bags, tent etc. The stitches are straight and uniform, with compact structure, stable operation, small vibration and low noise,the machine is a good helper for upholstered furniture production.
|
1
|
The workbench has an automatic lifting function with a large lifting range
|
|
2
|
The moving speed of the mobile box can be set within a certain range, and the box will automatically decelerate when turning around
|
|
3
|
The angle of the sewing head can be adjusted according to the thickness of mattress when working
|
|
4
|
The turning transition angle of the mattress can be adjusted as needed
|
|
5
|
The automatic induction device controls the motor clutch for easy operation
|
|
6
|
Widely used mattress tape edge machine Use a belt with a length of 100cm (Note: 200-500m belt tooling fixture can be equipped according to customer requirements)
|
|
Model
|
JC-WB1
|
JC-WB2
|
JC-WB3
|
||
|
Capacity
|
15pcs/h
|
18pcs/h
|
20pcs/h
|
||
|
Power
|
0.4kw
|
1.3kw
|
1.3kw
|
||
|
Working table Up & down
|
by hand
|
by Electric
|
Full Auto
|
||
|
Sewing head Up & down
|
by hand
|
by Electric
|
Full Auto
|
||
|
Sewing thickness
|
20-430mm (table height adjust rang 280mm)
|
|
|
||
|
Working table size
|
1.5*2M / 1.6*2M / 1.8*2M
|
|
|
||
JC-WB1
JC-WB2
JC-WB3
