Quick Details
-
Shear strength:
-
1200Lbs(600kg)
-
Rated Operating Voltage:
-
DC 12V
-
Standby Current:
-
650mA
-
Optional Functions:
-
Lock Status Sensors
-
Face place material:
-
High Aluminum
-
Suitable for:
-
European standard Narrow Wooden & Aluminum & Glass & Fireproof, etc.
-
Strike Plate Dimensions(L x W x D):
-
250L*25W*31.5H(mm)
-
Weight in kg:
-
0.4kg
-
CE/Rohs-mark for building:
-
yes
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Nordson
-
Version:
-
Fail-unlocked Special Design:Adjust Lock-tongue to Fail-locked style
-
Shear strength:
-
1200Lbs(600kg)
-
Rated Operating Voltage:
-
DC 12V
-
Standby Current:
-
650mA
-
Optional Functions:
-
Lock Status Sensors
-
Face place material:
-
High Aluminum
-
Suitable for:
-
European standard Narrow Wooden & Aluminum & Glass & Fireproof, etc.
-
Strike Plate Dimensions(L x W x D):
-
250L*25W*31.5H(mm)
-
Weight in kg:
-
0.4kg
-
CE/Rohs-mark for building:
-
yes

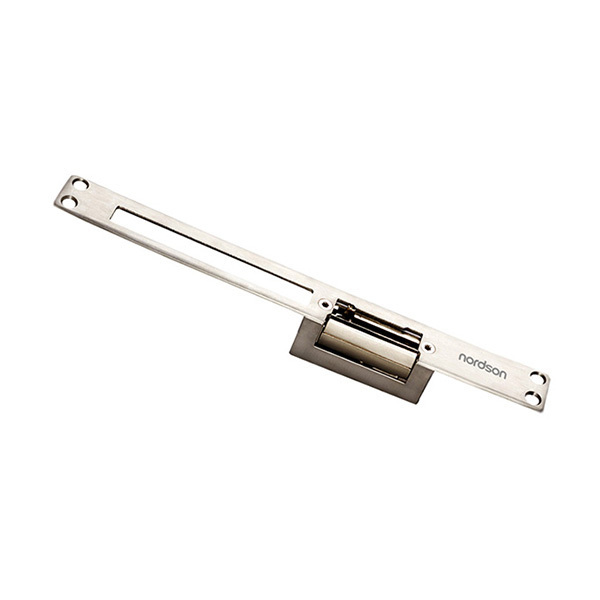

Fail locked / Fail unlocked European standard Narrow-type Adjustable Electric Strike lock
NJ-314L is European Long type Electric Strike Lock with adjustable mode for Fail locked & Fail Unlocked.It works with magnetic force generated by electromagnetic field for locking/unlocking,particularly with short circuit protection.This model has 2 working modes:Power-to-open & Power-to-lock.It is made of high-quality aluminum for high hardness,corrosion resistance & anti-deformation.It is suitable for all types of wooden door, metal door, PVC door etc.
| Version |
Fail-unlocked
Special Design : Adjust Lock-tongue to Fail-locked style |
| Shear strength | 1200Lbs(600kg) |
| Lock Status Sensors | NO |
| Rated Operating Voltage | DC 12V |
| Standby Current | 650mA |
| Optional Functions | Lock Status Sensors |
| Face place material | High Aluminum |
| Surface Temp | Low Temperature |
| Ambient temperature in °C | -10°C - +55°C |
| Suitable for | European standard Narrow Wooden & Aluminum & Glass & Fireproof &Metal door |
| Strike Plate Dimensions(L x W x D) | 250Lx25Wx31.5H(mm) |
| Weight in kg | 0.4kg |
| CE-mark for building | YES |
| Rohs-mark for building |
YES
|
1.Pass 1200lbs super linear static thrust test
2.Mode option: Fail locked & Fail Unlocked
3.Suitable for all European standard doors with adjustable tongue distance
4.Freely adjustable working mode for Power-to-open & Power-to-lock
5.Direct installation on metal door frame with mounting hole
6.Pass test of high temperature aging 100,000 times
7.Made of high-quality Aluminum alloy for high hardness,corrosion resistance & anti-deformation
8.CE Certificate & MA Certificate approved
