- Product Details
- {{item.text}}
Quick Details
-
Design Printing:
-
No printing
-
Material:
-
acrylic foam
-
Feature:
-
Waterproof
-
Use:
-
Carton Sealing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3M
-
Model Number:
-
5952
-
Product name:
-
3M V HB 5952
-
Color:
-
Black
-
Application:
-
Bonds to a variety of plastics and paint systems
-
Thickness:
-
1.1mm
-
Sample:
-
Freight Collect
-
MOQ:
-
no MOQ
Quick Details
-
Adhesive:
-
Acrylic
-
Adhesive Side:
-
Double Sided
-
Adhesive Type:
-
Pressure Sensitive
-
Design Printing:
-
No printing
-
Material:
-
acrylic foam
-
Feature:
-
Waterproof
-
Use:
-
Carton Sealing
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
3M
-
Model Number:
-
5952
-
Product name:
-
3M V HB 5952
-
Color:
-
Black
-
Application:
-
Bonds to a variety of plastics and paint systems
-
Thickness:
-
1.1mm
-
Sample:
-
Freight Collect
-
MOQ:
-
no MOQ
Custom Die Cut
Black Waterproof Heat Resistant
Double Sided Acrylic Adhesive Foam Tape

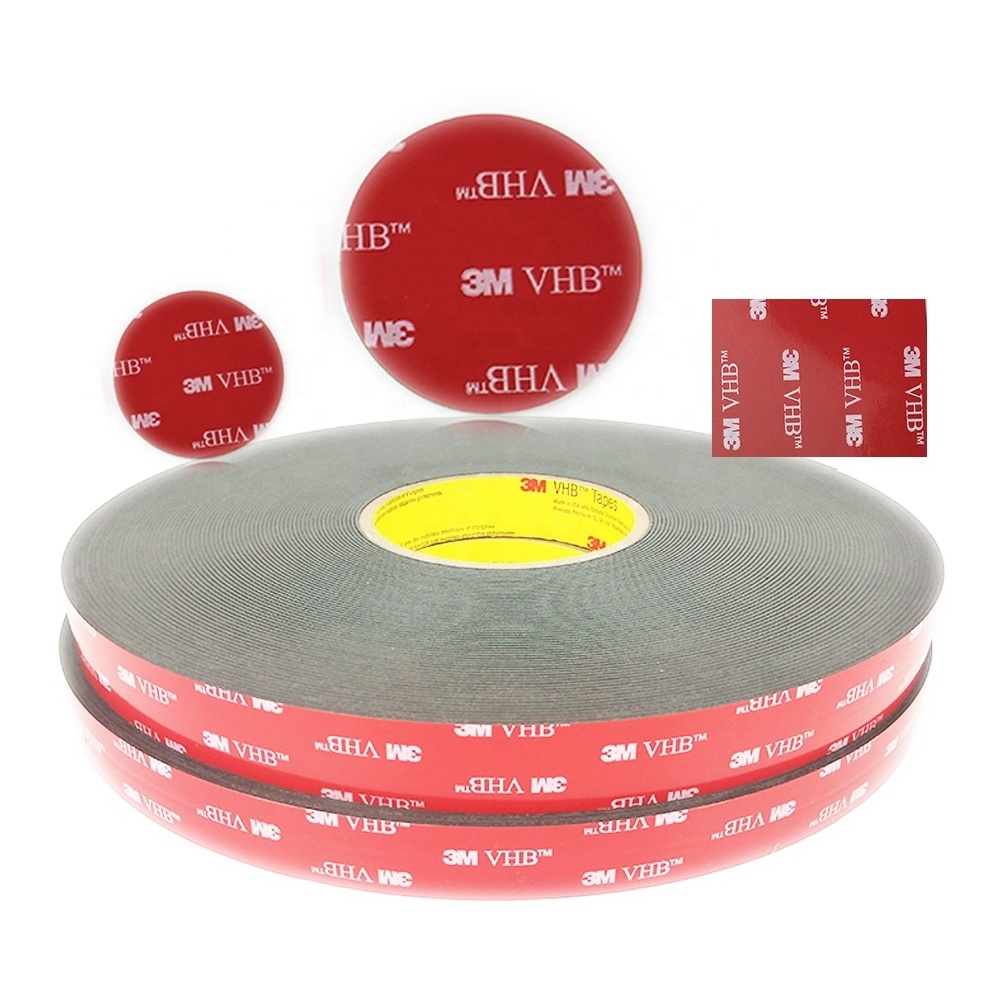

3M V HB Tape 5952 5952P 5952WF
5952: black foam tape with 5 mil Red Printed Polyethylene Film
5952P: black foam tape with 4 mil 58# Polycoated Kraft Paper
5952WF: white foam tape with 5 mil Red Printed Polyethylene Film
Dream, Design, Deliver with 3M V HB Tape 5952 . It is a black or white, 0.045 in ( 1.1 mm ) modified acrylic adhesive with a very conformable, foam core. It can replace rivets, welds and screws. The fast and easy to use permanent bonding method provides high strength and long-term durability. It offers design flexibility with its viscoelasticity and powerful ability to bond a variety of surfaces.
Modified Acrylic : Bonds to medium low surface energy paints and plastics, including many powder coated paints in addition to the substrates listed with the multi-purpose acrylic adhesive (except plasticized vinyl).
Details
Fast and easy-to-use permanent bonding method provides high strength and long-term durability.
Virtually invisible fastening keeps surfaces smooth.
Can replace mechanical fasteners (rivets, welding, screws) or liquid adhesives.
Black or white, 0.045 in (1.1 mm), modified acrylic adhesive and very conformable acrylic foam core bonds to a wide variety of substrates including powder coated paints and irregular surfaces.
Eliminate drilling, grinding, refinishing, screwing, welding and clean-up.
Creates a permanent seal against water, moisture and more by offering better gap filling capabilities.
Pressure sensitive adhesive bonds on contact to provide immediate handling strength.
Allows the use of thinner, lighter weight and dissimilar materials.
Specifications
| Applications | Bonding Glass to a Metal Clothes Washer Door, Bonding Panels to Metal Frames, Commercial Vehicle Roof Vent Attachment, Gasket Assembly, Interior Rail Car Construction, Mounting and Trim Attachment, Panel to Frame/Stiffner to Panel Assembly, TV Stand Decorative Trim Attachment |
| Backing Material | Foam |
| Brand | V HB |
| Carrier Material | Acrylic Foam |
| Color | Black (or white) |
| Core Size | 3 Inch |
| Design Challenges | Impact & Shock Absorption, Noise Vibration & Harshness Control NVH |
| Flame Retardant | N/A |
| Foam Conformability | Very Conformable |
| Indoor/Outdoor | Both |
| Industries | Appliance, Construction, Electronics, General Industrial, Metalworking, Signage, Transportation |
| Length | 15 Linear Yard, 36 Linear Yard |
| Length (Metric) | 13.71 m, 32.9 m |
| Maximum Operating Temperature (Celsius) | 149 Degree Celsius |
| Maximum Operating Temperature (Fahrenheit) | 300 Degree Fahrenheit |
| Position | Better |
| Primary Liner | Paper or Polyethylene (PE) Film |
| Primary Liner Thickness | 4 mil, 5 mil |
| Product Form | Roll |
| Size | Custom |
| Substrate 1 | Glass, High Surface Energy Plastic, High Surface Energy, (400-1100 Dynes/cm), Low Surface Energy Plastic, Medium Surface Energy, (38-39 Dynes/cm), Medium-High Surface Energy, (42-50 Dynes/cm), Medium-Low Surface Energy, (36-37 Dynes/cm), Metal, Paint, Sealed Wood |
| Substrate 2 | Glass, High Surface Energy Plastic, High Surface Energy, (400-1100 Dynes/cm), Low Surface Energy Plastic, Medium Surface Energy, (38-39 Dynes/cm), Medium-High Surface Energy, (42-50 Dynes/cm), Medium-Low Surface Energy, (36-37 Dynes/cm), Metal, Paint, Sealed Wood |
| Substrates | Glass, High Surface Energy, (400-1100 Dynes/cm), HSE Plastics and Glass, LSE Plastics, Medium Surface Energy, (38-39 Dynes/cm), Medium-High Surface Energy, (42-50 Dynes/cm), Medium-Low Surface Energy, (36-37 Dynes/cm), Metal, Paint, Paints (Powder Coat, Painted Metal, Composite Panel), Rough surfaces |
| Temperature Resistance - Initial | 300 Degree Fahrenheit |
| Thickness | 45 mil |
| Thickness (Metric) | 1.1 mm, 1.14 mm |
| US Govt Contract Number | GS-15F-1429H |
| Volatile Organic Compounds (VOCs) | See Safety Data Sheet, Regulatory Data Sheet |
| Width | 0.5 Inch, 0.75 Inch, 1 Inch, 24 Inch, 48 Inch |
| Width (Metric) | 12.7 mm, 1219 mm, 19.05 mm, 25.4 mm, 609.6 mm |
Application Ideas:
Bonds to a variety of plastics and paint systems.
Bond architectural signs to frames.
Attach trim and extrusions.
Hat channels and stiffeners.
Recommended Applications
Decorative material and trim
Nameplates and logos
Electronic displays
Panel to frame
Stiffener to panel
Improtant Content Link:
3M V HB Technical Bulletin-Durability
Surface Preparation for 3M V HB Tapes
Our Service:
(1) Slitting: any width any length
(2) Die Cutting: any shape any size
About us:
We are 3M authorized distributor, have been selling original 3M products for many years, we have a professional die cut factory in Shenzhen.
We make orders at Alibaba platform, its TRADE ASSURANCE prot ect your order from payment to delivery.
Don't worry the quantity of your order, we will try our best to help you.
Custom Die Cut Black Waterproof Heat Resistant Double Sided Acrylic Adhesive Foam Tape 3M VHB 5952
