Quick Details
-
Brand Name:
-
Acrel
-
Model Number:
-
AMC16-DETT/AI
-
Accuracy Class:
-
1
-
Operating Temperature:
-
-20℃~+60℃
-
Dimensions:
-
89.7*87.8*52mm
-
Rated voltage:
-
48VDC
-
Rated current:
-
6 channels hall sensors output is 5V
-
Communication:
-
RS485 Port MODBUS-RTU Protocol
-
Installation:
-
35mm Din Rail
-
Power supply:
-
40-60VDC
-
Protection level:
-
IP20
-
Overload capacity:
-
1.2times continued
-
Channels:
-
6 channels max
-
Power consumption:
-
≤2W
-
Application:
-
Base Station
Quick Details
-
Phase:
-
Single Phase
-
Measuring Energy Range:
-
0-99999999
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Acrel
-
Model Number:
-
AMC16-DETT/AI
-
Accuracy Class:
-
1
-
Operating Temperature:
-
-20℃~+60℃
-
Dimensions:
-
89.7*87.8*52mm
-
Rated voltage:
-
48VDC
-
Rated current:
-
6 channels hall sensors output is 5V
-
Communication:
-
RS485 Port MODBUS-RTU Protocol
-
Installation:
-
35mm Din Rail
-
Power supply:
-
40-60VDC
-
Protection level:
-
IP20
-
Overload capacity:
-
1.2times continued
-
Channels:
-
6 channels max
-
Power consumption:
-
≤2W
-
Application:
-
Base Station
Products Description

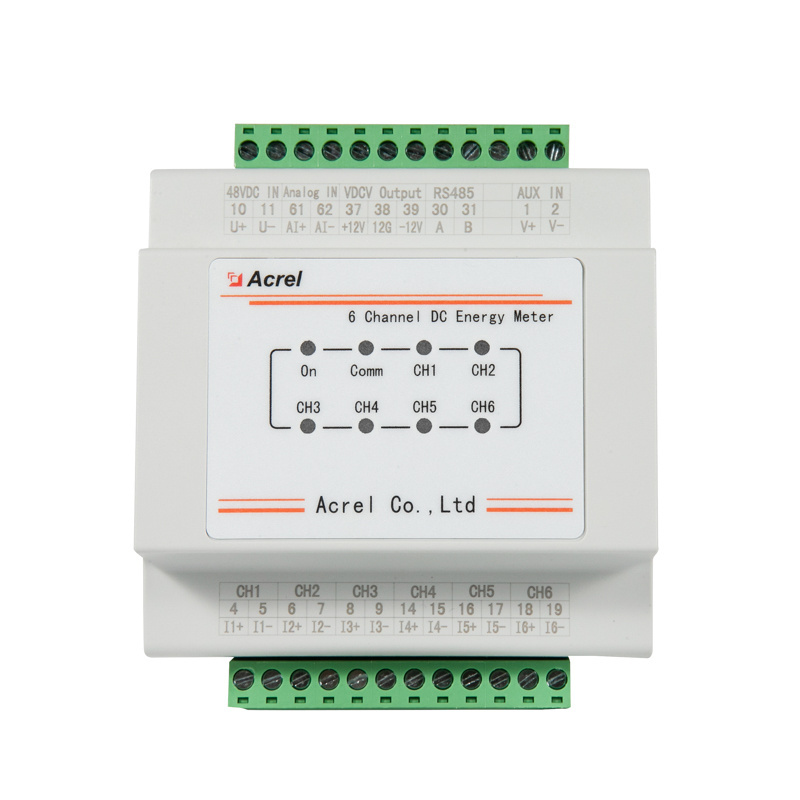

Acrel AMC16-DETT
Base station dedicated DC energy meter AMC16-DETT is specially designed for base stations where have sharing requirements, and switch power supply is without the function of sub-user metering. The meter could measure6 circuits DC energy, and supply working current to the matched hall sensors. Meanwhile, it can realize zero drift calibration by upper computer software.have the functions of telemetering,teleindication,teleadjusting, metering at real time,energy quality abnormal alarm, data storage and processing, data interaction.
AMC16-DETT Multi-Circuit DC Energy Meter Used In Base Sation
* DC rated voltage: 1 channel: -48VDC
* Accuracy:1%In≤I≤10%In error±2.5%; I>10%In error±2%
* RS485(MODBUS-RTU)
* DIN 35 mm
* Designed for base stations
Function & Parameter
Function
Communication
Single channel RS485 communication protocol
Standard or customized
Rated U and I
Total 200A/5V
Accuracy
1%In≤I≤10%In error±2.5%;I>10%In error±2%
Voltage range
-40V~-60VDC
Power consumption
≤2W( no hall power supply output)
Power supply output
+12V/100Ma, -12V/50mA
Power consumption
≤2W( no hall power supply output)
Dimension(L*W*H)
89.7*87.8*52mm
Installation
DIN 35 mm
Clock
≤0.5S/d(23℃), ≤1S/d(-20℃-60℃)
Current
1.2 times continued
+12V/100Ma, -12V/50mA
Power consumption
≤2W( no hall power supply output)
Dimension(L*W*H)
89.7*87.8*52mm
Installation
DIN 35 mm
Clock
≤0.5S/d(23℃), ≤1S/d(-20℃-60℃)
Current
1.2 times continued
Parameters
|
Technical parameter
|
|
Index
|
|
|
|
DC rated voltage
|
1 channel: -48VDC
|
|
|
|
DC current
|
6 channels hall sensors: total 200A/5V, China Telecom, China Mobile, China Unicom and the 1st channel reserve 50A/5V, 2nd channel reserve 100A/5V.
|
|
|
|
Commercial power monitoring
|
1 channel: 0-5VDC
|
|
|
|
Overload capacity
|
Voltage:1.2times continued,2 times continued 1s;
Current: 1.2 times continued,10 times continued 1s. |
|
|
Accuracy (superposition hall sensors)
|
|
1%In≤I≤10%In error±2.5%; I>10%In error±2%
|
|
|
Measurement resolution
|
|
Voltage output accuracy 0.01V; current output accuracy 0.01A; power output accuracy 0.01kw; energy output accuracy 0.01kwh
|
|
|
|
Basic function
|
Monitor device system time, total voltage, output total current, power, energy, each channel voltage, current, power, energy; LED indicator display;485 communication
|
|
|
|
Metering function
|
Start current: under rated voltage, when the load current value of the meter doesn’t exceed 1% of the max. current, the meter starts. Shunt running current: when there is no current in the current circuit of the meter, and 85%-125%of the rated voltage is applied on the voltage circuit, the calculator shall not have more than one digital change.
|
|
|
|
Alarm function
|
DC voltage output low alarm,DC voltage output high alarm,one power down alarm, module voltage loss alarm, metering branch error alarm, internal program error alarm, clock error alarm, memory failure alarm, AC input power failure alarm.
|
|
|
|
Timing function
|
Support broadcast timing, could remote timing to the meter through RS485 communication.
|
|
|
|
Communication
|
Single channel RS485, baudrate 9600bps, can be set to 1200bps, 2400bps, 4800bps. Communication protocol: standard or custmized.
|
|
|
|
Hall sensor power supply
|
Power supply output:+12V/100Ma, -12V/50mA
|
|
|
|
Clock accuracy
|
≤0.5S/d(23℃), ≤1S/d(-20℃-60℃)
|
|
|
Auxiliary power supply
|
Voltage range
|
-40V~-60VDC
|
|
|
|
Power consumption
|
Whole device≤2W( no hall power supply output)
|
|
|
Storage
|
|
It has the storage function of historical power data and historical alarm information, and the memory is 2MB
|
|
|
Insulation resistance
|
|
≥40MΩ
|
|
|
|
Temperature
|
Working : -20℃~+60℃; storage:-40℃~+70℃
|
|
|
|
Humidity
|
≤98% no condensation, no corrosive gas place
|
|
|
|
Altitude
|
≤4000m
|
|
|
Protection level
|
|
IP20
|
|
|
Material flame retardent
|
|
Terminal glow wire temperature 960℃±10℃, shell glow wire temperature 6500℃±15℃
|
|
|
Installation
|
|
Standard 35mm din rail
|
|
|
|
Voltage input (differential mode)
|
Peak value 5kA
|
|
|
|
Auxiliary power supply (differential mode)
|
Peak value 5kA
|
|
