Quick Details
-
Model Number:
-
CX-ULM
-
Product name:
-
Water Tank Level meter
-
Material:
-
Stainless steel
-
Temperature:
-
-20~150℃
-
Pressure:
-
2.45Mpa
-
Measuring Range:
-
0~5000mm
-
Installation:
-
side mounted;Top,Bottom installa
Quick Details
-
Grade:
-
Industrial
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
GN
-
Model Number:
-
CX-ULM
-
Product name:
-
Water Tank Level meter
-
Material:
-
Stainless steel
-
Temperature:
-
-20~150℃
-
Pressure:
-
2.45Mpa
-
Measuring Range:
-
0~5000mm
-
Installation:
-
side mounted;Top,Bottom installa

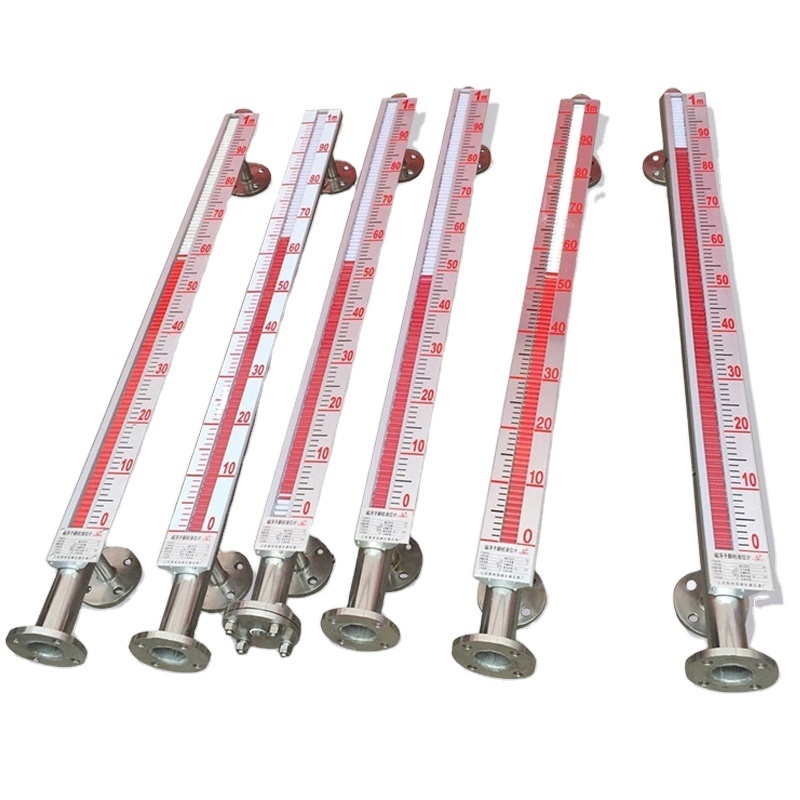

The Magnetic Level meter
A.[Features of Magnetic Level meter]
Easy Reading
The Water Tank Level meter with red indicator,so it's easy reading the water level;
Lower Cost For You
The Water Tank Level meter with lower cost compared with the radar or ulreasonic level meter;
High Standard Working conditions
The Water Tank Level meter with 350℃ max temperature and 9.6Mpa max pressure for reference;
Easy Installation
The level meter with three type installation:top,bottom and side mounted for you.
B.[Parameters]
| Water Tank Level meter---Basic production informance | |
| Range | 0~3 meters |
| Material | M1-SS304 |
| M2-SS316L | |
| M3-UPVC | |
| M4-UPP | |
| M5-PTFE | |
| Output | AH-Upper alarm |
| AHL-Lower alarm | |
| AHL-Upper and lower alarm | |
| Installation | S-side-mounted |
| T-top-mounted | |
| L-low-mounted | |
| Sensor Temperature | Normal:-10~200℃ |
| M-max temperature:-10~350℃ | |
| PArameter | Material | Range | Tem(℃) | Pressure | Density | Viscosity |
| Standard | 304 | 300~8000 | -20~150℃ | 0~2.45 | 0.5~2 | ≤0.04 |
| H-pressure | 300~8000 | -20~150℃ | 2.45~9.6 | 0.5~2 | ≤0.04 | |
| H-temperature | 300~8000 | -20~350℃ | 2.45~9.6 | 0.5~2 | ≤0.04 | |
| Low-tem | 300~2500 | >-40℃ | 0~2.45 | 0.5~2 | ≤0.04 | |
| LPG | 300~15000 | -20~150℃ | 0~2.45 | 0.45~0.7 | ≤0.04 | |
| Corrosive proof | 316L | 300~8000 | -20~150℃ | 0~2.45 | 0.5~2 | ≤0.04 |
| Corrosive proof | PP | 300~5000 | -20~100℃ | 0~0.6 | 0.5~2 | ≤0.04 |
| Corrosive proof | U-PVC | 300~5000 | -20~60℃ | 0~0.5 | 0.5~2 | ≤0.04 |
| Corrosive proof | ABS | 300~5000 | -20~120℃ | 0~0.6 | 0.5~2 | ≤0.04 |
| Corrosive proof | 316pipe | 300~15000 | -20~100℃ | 0~1.0 | 0.5~2 | ≤0.04 |
| Corrosive proof | PE | 300~5000 | -20~40℃ | 0~0.6 | 0.5~2 | ≤0.04 |
| Warming type | 304 | 300~15000 | -20~150℃ | 0~2.45 | 0.5~2 | ≤0.05 |
| H-viscosity | 304 | 300~8000 | -20~150℃ | 0~2.45 | 0.5~2 | ≤0.05 |
| Sanitary | 304 | 300~8000 | -20~150℃ | 0~1.6 | 0.5~2 | ≤0.05 |
C.[Installation]
D.[Company Info]
- Our Company is Top 10 Manufacture on Alibaba;
- We have about 30 years of experience in Manufacture;
- Our products have been exported to more 100 coutries and area;
- ISO,SGS,CE and more ceterficates for you reference;
- Patent technology and more than 3 years working life.
