Quick Details
-
Model Number:
-
Q41F
-
Brand Name:
-
xukang
-
Product name:
-
ball valve
-
Size:
-
1/2"~12"
-
Working pressure:
-
≤6000PSI
-
Working Temperature:
-
-54°C~500°C
-
connection standard:
-
ANSI / JIS / DIN / ISO / GB
-
material:
-
SS304 , SS316 , Carbon Steel, Hastelloy, Inconel, Stainless Steel
-
Type:
-
BALL VALVES
Quick Details
-
Port Size:
-
1/2"~12"
-
Warranty:
-
1 years
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
Q41F
-
Brand Name:
-
xukang
-
Product name:
-
ball valve
-
Size:
-
1/2"~12"
-
Working pressure:
-
≤6000PSI
-
Working Temperature:
-
-54°C~500°C
-
connection standard:
-
ANSI / JIS / DIN / ISO / GB
-
material:
-
SS304 , SS316 , Carbon Steel, Hastelloy, Inconel, Stainless Steel
-
Type:
-
BALL VALVES
Products Description

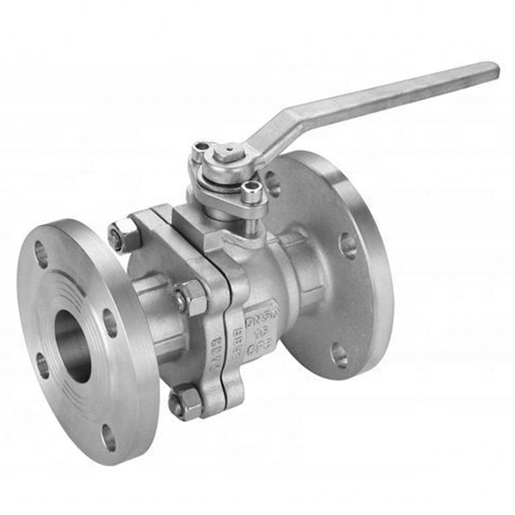

Stainless steel Forged ball valve
The floating ball valve portfolio includes a diverse range of standard and customized valves that can be configured to suit most process applications or project packages. There are soft seated designs that provide superior sealing; metal-seated valves that maintain tight shut-off and valves designed to maintain the performance of your processes from elevated temperatures to cryogenic.
1. High precision machining results in superior ball and seat interfacing for tight shutoff.
2. Spring loaded seat maintains close contact with the ball assuring tight sealing even at .
3. The combination of metal seats and graphite seals ensure fire-safe capabilities.
4. Various material components are available for a variety of service application up to 500ºC.
5. Can provide a complete valve and actuator as ‘package’ for special applications including powder and super speed applications.
6. Surface-hardened ball and seats allow use in more severe applications such as slurries, pulp stock and other abrasive media in long .
7. Ball surface hardening process can be chosen. Hard chrome plating Nickel alloy overlay、Tungsten carbide、Chrome carbide.
Specification
|
item
|
floating ball valve
|
|
Model Number
|
Q41F
|
|
Usage
|
Mainly use in Cut off or turn on the medium and Fluid regulation and control
|
|
Size
|
1/2"~12“
|
|
Working pressure
|
≤6000PSI
|
|
Working Temperature
|
-54°C~500°C
|
|
design and manufacturing standard
|
ANSI / JIS / DIN / ISO / API / GB
|
|
Flange connection standard
|
ANSI / JIS / DIN / ISO / GB
|
|
Aplication
|
Petroleum, chemical industry, metallurgy, electric power, construction, thermal power, water supply and drainage, water treatment
and other industries |
|
valve body and bonnet material
|
A351 CF8 / A351 CF8M / A351 CF3 / A351 CF3M
304 Stainless Steel, 316 Stainless Steel, Carbon Steel, Hastelloy, Inconel, Stainless Steel
|
|
STEM material
|
A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
|
|
ball material
|
A182 F6 A182 F304 A182 F316 A182 F304L A182 F316L
|
Company Introduction
Company introduction
Hebei Xukang Meter Manufacturing and Tianjin U-ideal Instrument Co., Ltd as a group, have more than 20years products research and development experience. And have 16years export experience, 5000m2 factory, tens of new machines.
Hebei Xukang Meter Manufaturing Co. Ltd adopts a combination marketing of domestic and foreign trade, having a marketing network across the country and abroad. We will try to provide customers the best quality and service through integrating the best resource and to become the excellence corporation. Our products strictly enforce the ISO9001 quality management system, and provide customer a safe product.
Our products range:
1. Flowmeter: Electromagnetic flowmeter, ultrasonic flowmeter, vortex flowmeter, gear flowmeter, rotor flowmeter, mass flowmeter, etc
2. Level gauge: Magnetic float level gauge, glass plate level gauge, glass tube level gauge, ultrasonic level gauge, oil level gauge, float switch, radar level gauge, etc.
3. Sight Glass: Straight sight glass, tube sight glass, flange sight glass, three way sight glass etc.
4. Strainers: Quick Open Basket Filter Strainer,Y Type,T Type,Basket Strainer,Self -Cleaning Strainer,Industrial Duplex Basket Strainer,Intelligent Control Self-Cleaning Piping Strainer,etc.
5. Valves: air valve, Strainer, gate valve, check valve, globe valve, ball valve, butterfly valve, pressure reducing valve, control valve, safety valve, angle valve, Titanium alloy valve, thermostatic valve, needle valve, plug valve, etc.
6. Flanges and Pipe fittings:all kinds of flanges, elbow, tee, caps, union,plug,coupling,reducer, pipes and steels etc.
